HY-GC30A-R8 Wireless CO Detector: 10-Year Home Security

HY-GC30A-R8 Wireless CO Detector: 10-Year Home Security

-57% New

HY-GC30A-R8 - The carbon monoxide alarm provides high security with precise detection via an electrochemical sensor and rapid response to CO leaks. It features a battery life of up to 10 years, a multifunctional LCD display with temperature and humidity, and a powerful 85dB audible alarm. It can be connected wirelessly to up to 24 devices and features a mute function, low battery warnings, and self-diagnosis. It is CE, UKCA, and TUV certified for homes, hotels, and restaurants. - Dahua

Technical Data Sheet

Reference: HY-GC30A-R8

Brand: Dahua

EAN: 6976643255241

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

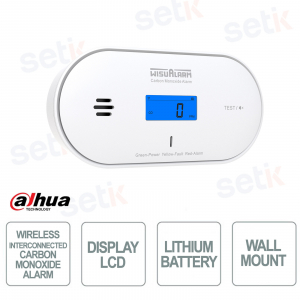

HY-GC30A-R8 | CARBON MONOXIDE SENSOR - BATTERY-OPERATED - LCD DISPLAY

Dahua

The HY-GC30A-R8 carbon monoxide detector is designed to ensure home security with a high-precision electrochemical sensor, LCD display, and 10-year battery life. It offers a powerful 85dB alarm and wireless connectivity for up to 24 devices, with visual and audible alerts in case of danger.

Main specifications:

- Precise electrochemical CO sensor with fast response

- LCD display with temperature, humidity and CO level

- 85dB acoustic alarm and LED signaling (red/yellow/green)

- Wireless connectivity up to 1000 meters and 24 devices

- Built-in 10-year battery with auto-off at end of life

- TUV, CE, UKCA certifications for certified safety

Further details

High Performance Sensor:
Equipped with a high-quality electrochemical sensor, it offers rapid and precise detection of carbon monoxide even at low concentrations (starting from 30 ppm), ensuring high sensitivity and low false alarms.
Extended Battery Life :
It runs on a built-in, non-replaceable lithium battery with a guaranteed 10-year lifespan, supporting minimal power consumption (≤20uA in standby), reducing maintenance and ensuring continuous protection.
Multifunction LCD Display :
Large blue backlit display with clear display of CO concentration, temperature and humidity in real time, for complete and immediate environmental control.
Three Separate LEDs:
Equipped with three distinct LEDs: red for alarm, yellow for malfunctions and green for normal operation, offering immediate and intuitive visual signaling.
Built-in High Volume Buzzer:
Powerful 85dB audible alarm up to 3 meters away, combined with visual warnings to ensure maximum safety even in emergency situations.

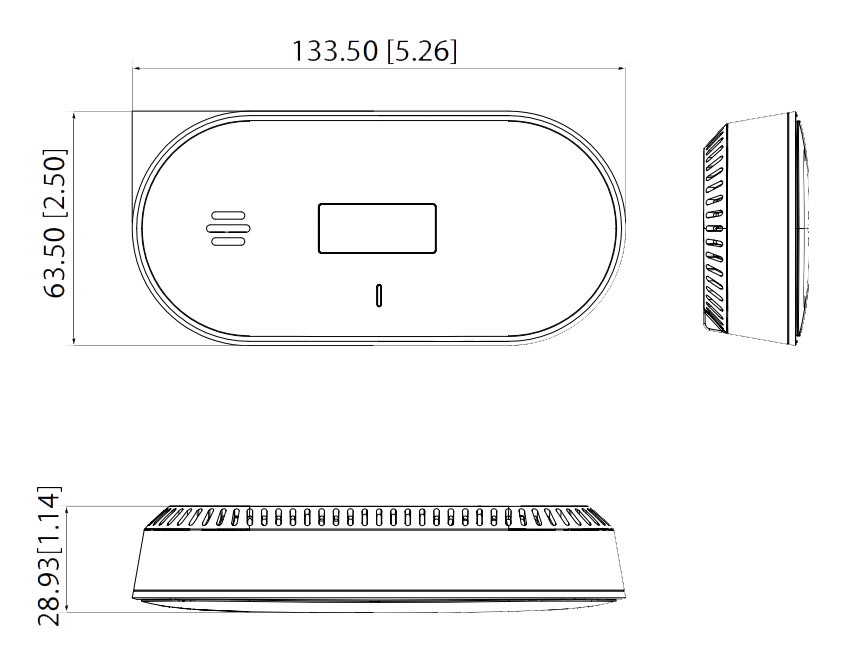

HY-GC30A-R8 dimensions

Technical data sheet

HY-GC30A-R8

Working Principle

Collection Type

Carbon Monoxide (CO)

Sensor Type

Electrochemical

Alarm

Alarm Type

CO alarm, fault warning, low battery warning

Alarm Volume

Over 85dB (A) at 3 m (9.84 ft)

Alarm Mode

Visual and audible alarm

Silence Function

Support

Silence Duration

About 9 min

Alarm Response Threshold

50 ppm: 60 min–90 min
100 ppm: 10 min–40 min
300 ppm: < 3 min

Basic Parameters

Display

LCD

Indicator Light

LED (red/yellow/green)

LED Instructions

Alarm: Red indicator
Fault: Yellow indicator
Power: Green indicator

Operating Frequency

868MHz

Radio Signal Range

Up to 1000 m (3280.84 ft) in open air

Maximum Number of Interconnected Units

24pcs

Power Supply

Battery Life

10 years

Operating Voltage

3V CR17450A lithium battery (non-replaceable)

Operating Current

Standby Current: ≤20uA
Alarm Current: ≤20mA

Operating Ambient

Operating Environment

Indoor use only

Operating Temperature

–10°C to +40°C (+14°F to +104°F)

Operating Humidity

≤ 95% RH (non-condensing)

Environmental Measurement

Temperature Accuracy

±0.1°C typical

Humidity Accuracy

±1.5%RH typical

Appearance

Color

White

Casing

PC + ABS

Dimensions

133.5mm × 63.5mm × 28.9mm (5.26” × 2.50” × 1.14”)

Weight

123 g (0.28 lb)

Installation

Wall mount/Free standing

Certifications

Certifications

TUV, CE and UKCA listed

Compliance Standard

EN 50291-1:2018
BS EN 50291-1:2018
EN 62479:2010
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
EN 300 220-2 V3.1.1
EN 50270:2015

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
