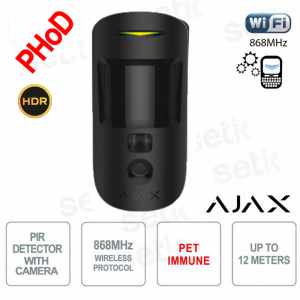

Ajax MotionCam HDR (PhOD) Jeweler Black – PIR sensor with HDR photo verification

Ajax MotionCam HDR (PhOD) Jeweler Black – PIR sensor with HDR photo verification

 

119281.310.BL1 #119281 | Ajax MotionCam HDR (PhOD) Jeweller black is an advanced wireless PIR sensor that combines precise detection and extended photo verification to ensure maximum security in any environment. Thanks to the HDR function, captured images are clearer and more balanced, even in low light conditions, improving threat identification. With a detection range of up to 12 meters and an 88.5° angle, it ensures reliability and reduced false alarms thanks to the SmartDetect algorithm and immunity to animals up to 20 kg. Battery life reaches up to 4 years, while secure communication via Jeweller and Wings ensures stable and protected transmissions. Anti-sabotage protection and real-time notifications complete a device designed for end users and professionals.

Technical Data Sheet

Reference: 119281.310.BL1

Brand: Ajax Systems

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

119281.310.BL1 | Wireless PIR Motion Detector with Extended Photo Verification - Black

Ajax

The Ajax MotionCam (PhOD) HDR Jeweller Black motion detector, 119281.310.BL1 , is a wireless PIR sensor that combines precise detection and advanced photo verification, ensuring reliable security for homes and businesses. Thanks to the HDR function, images are clear and balanced even in low light conditions, improving threat identification. With a range of up to 12 meters and a coverage angle of 88.5°, it offers effective protection by reducing false alarms thanks to the SmartDetect algorithm and immunity to animals weighing up to 20 kg. Secure communication via Jeweller and Wings technologies ensures stable and protected transmissions, while the battery life is up to 4 years. Complete with anti-sabotage protection, it represents a professional solution for intelligent video surveillance.

Main specifications:

- Detection up to 12 m with an 88.5° angle

- Photo verification with resolution up to 640×480 px, HDR and IR support

- Jeweller and Wings radio communication with range up to 1,700 m

- Immunity to pets up to 20 kg and 50 cm in height

- Anti-sabotage protection with tamper alarm and device authentication

- Powered by 2 CR123A batteries, battery life up to 4 years

Further details

✅ Communication:
The PIR sensor covers up to 12 meters with an 88.5° angle, adapting to different temperature conditions. The SmartDetect algorithm reduces false alarms and offers pet immunity up to 20 kg and 50 cm tall, making it ideal for homes with dogs or cats.
✅ Detection :
The PIR sensor covers a distance of up to 12 meters with a wide horizontal angle of 88.5° , adapting to different temperature conditions. Thanks to the SmartDetect algorithm, it reduces false alarms and is immune to pets up to 20 kg in weight and 50 cm in height , making it perfect for homes with dogs or cats.
✅ Photo verification :
The built-in camera offers a resolution of up to 640x480 pixels and sends the first image in just 9 seconds. It supports bursts of up to 5 photos with IR illumination for visibility in the dark. The HDR function optimizes the quality and brightness balance, providing sharper and more reliable images.
✅ Anti-sabotage protection:
It includes a tamper alarm that signals opening or tampering and a device authentication system to prevent counterfeiting, increasing the security of the entire system.
✅ Power supply:
It runs on two pre-installed CR123A batteries , providing up to four years of battery life (three years with the photo function enabled). Low battery notifications ensure uninterrupted operation.

Technical data sheet

119281.310.BL1
Communication
Jeweler Communication Technology Proprietary wireless communication technology for transmitting commands, alarms and events.
Main features:
  • Two-way communication.
  • Advanced anti-sabotage system.
  • Block cipher with movable key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Based on the sales region.
Maximum Effective Radiated Power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,700 m
up to 5,500 ft
Between the hub and connected devices (in open field).
Encrypted communication All stored and transmitted data is protected by block encryption with a mobile key.
Frequency hopping To avoid radio interference and signal jamming.
Wings Communication Technology Proprietary wireless communication technology for transmitting photos.
Main features:
  • Two-way communication.
  • Block cipher with movable key.
  • Advanced anti-sabotage system.
  • Reload data packets in case of transmission errors.
  • Photo delivery control.
Operating frequencies 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Based on the sales region.
Radio communication range up to 1,700 m
up to 5,500 ft
Between the detector and the central unit or signal repeater in open field.
Encrypted communication All stored and transmitted data is protected by block encryption with a mobile key.
Frequency hopping To avoid radio interference and signal jamming.
Detection Sensor type PIR sensor
Motion detection distance up to 12 m
When installed at a height of 2.4 m.
up to 39 ft
When installed at a height of 7.9 ft.
Motion detection angle horizontal: 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The detector lens must be positioned perpendicular to the path you take to enter the room.
Sensitivity 3 levels
Set by a PRO or user with administrator rights in Ajax apps.
Pet immunity weight: up to 20 kg
height: up to 50 cm
weight: up to 44 lb
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm.
Temperature compensation Effective motion detection at temperatures from −10°C to +40°C.
Effective motion detection at temperatures between 14°F and 104°F.
Photo-verification Photo for alarm The built-in camera is activated when the detector is armed and motion is detected.
Photos upon request The user can take a photo at any time or when the detector is armed (depending on the settings). This feature is disabled by default.
Photo for scenario The detector's camera automatically takes pictures when Ajax fire detectors are triggered. This feature is disabled by default.
Photo for programming The detector automatically takes photos at a specific time. This feature is available for hubs (except Hub Jeweller) with OS Malevich firmware version 2.19 or later.
Photo for insertion/deinsertion The detector automatically takes photos when the security mode is changed.
Photo resolution 640 × 480 px
320 × 240 px (by default)
160 × 120 px
Set by a PRO or user with administrator rights in Ajax apps.
HDR image Improves detail accuracy in bright and dark scenes.
The feature is available for devices with firmware version 15.59.35.14 or later1.
IR illumination For night or low-light shots.
Images in series 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px
1 to 3 images with a resolution of 640 × 480 px
Set by a PRO or user with administrator rights in Ajax apps.
Photo delivery time within 7 s at a resolution of 160 × 120 px
within 9 s at a resolution of 320 × 240 px
within 20 s at a resolution of 640 × 480 px
Suggestions It is recommended to install the device at a height of 2.4 m. The device is intended for indoor use only.
It is recommended to install the device at a height of 8 feet. The device is intended for indoor use only.
Anti-sabotage protection Anti-tampering tamper Warning if you attempt to detach the detector from the surface or remove it from the mounting panel.
Anti-counterfeiting protection device authentication
Communication loss detection in 36 s
Detection time depends on Jeweller or Jeweller/Fiber settings.
Diet Batterie 2 × CR123A
Pre-installed.
Calculated battery life up to 4 years
when Photos on Demand is turned off
up to 3 years
when Photo on Demand is enabled
Custody Dimensions 135 × 70 × 60 mm
5.31″ × 2.75″ × 2.36″
Weight 170 g
6 oz
Operating temperatures from −10 °C to +40 °C
from 14°F to 104°F
Maximum permissible humidity up to 75%
Protection class IP50
Color Black
Complete set MotionCam (PhOD) Jeweler
SmartBracket mounting panel
Installation kit
2 × CR123A batteries (pre-installed)
Quick Guide
Additional Information Warranty 24 months
