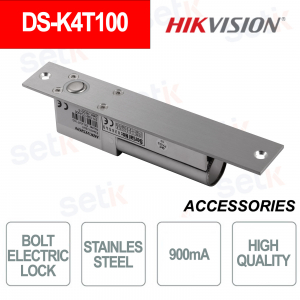

DS-K4T100 – ELECTRIC BOLT LOCK – STAINLESS STEEL

Hikvision

The Hikvision DS-K4T100 electric deadbolt lock is designed to ensure maximum security and durability on wooden, glass, metal, and fire doors. Constructed of polished and brushed stainless steel, it can withstand up to 800 kg of force and withstands over 500,000 use cycles. It operates on 12 VDC power and has low standby power consumption, ensuring efficiency and high reliability for professional applications .

Main features:

- Material: polished and brushed stainless steel

- Power supply: 12 VDC (900 mA start, 100 mA standby)

- Maximum thrust: 800 kg

- Uses: wooden, glass, metal and fire doors


Further details

Material :
Constructed from polished and brushed stainless steel , resistant to corrosion and wear, ideal for high-frequency use environments.
Working current :
It operates with 12 VDC , drawing 900 mA at startup and only 100 mA in standby , ensuring energy efficiency and operational stability.
Maximum thrust :
It supports a resistance of up to 800 kg , offering high protection against break-in attempts and forced opening.
Uses :
Compatible with glass, wood, metal and fire doors , perfect for residential, commercial and institutional applications.

Technical data sheet

DS-K4T100

General

Power supply

12 VDC+10 %, 900 mA (startup current), 100 mA (standby)

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 95% (non-condensing)

Dimensions Lock Body: 205mm × 35mm × 40mm (8.07" × 1.38\" × 1.57\")
Armature Plate: 90mm × 25mm × 2mm (3.54 × 0.98\" × 0.07\")
Bolt: 16mm × 16mm (0.63 × 0.63\")"
Material Bolt: polished and brushed stainless steel
Thrust Max. 800 kg (1764 lb)
Door type Glass door, wooden door, metal door, fireproof door
Signal output Signal output NC, COM contact of door status
Magnetic induction distance 8 mm (0.31")
Delay duration 0/3/6/9 s optional
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
