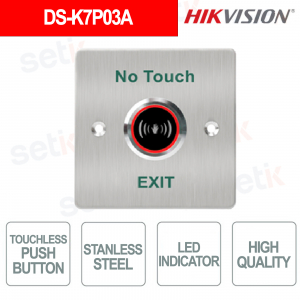

DS-K7P03A Stainless Steel Touchless Exit Button with LED - Hikvision

DS-K7P03A Stainless Steel Touchless Exit Button with LED - Hikvision

 
-35%

DS-K7P03A - is a touchless exit button designed for professional access control systems, ideal for controlling opening without physical contact. It features a durable stainless steel panel with LED indicator , offering a functional solution for modern installations. The compact dimensions of 86 × 86 × 25 mm facilitate its integration even in narrow door frames , making it suitable for various installation contexts. Hikvision

Technical data sheet not available

Reference: DS-K7P03A

Brand: Hikvision

EAN: 6936422161743

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

DS-K7P03A – EXIT AND EMERGENCY BUTTON – LED INDICATOR

Hikvision

The Hikvision DS-K7P03A is a touchless exit button designed for professional access control systems, allowing activation without physical contact. The structure features a durable stainless steel panel with integrated LED indicator and compact dimensions of 86 × 86 × 25 mm . The design is suitable for installation on various types of narrow door frames , offering a practical and functional solution for exit management.

Main features:

  • Type: Touchless
  • Material: Stainless steel
  • Indicator: LED
  • Dimensions: 86 × 86 × 25 mm
  • Installation: Narrow door frames

Further details

✅ Material :
 Hikvision DS-K7P03A is made with a durable stainless steel panel , a solution suitable for integration into professional access control systems and exit management devices.
✅ Indicator:
 It integrates an LED indicator that provides visual feedback on the button status, making it easy to use as a touchless exit request device.
✅ Uses:
 Designed as a touchless exit button , the DS-K7P03A is intended for access control systems and can be installed on various types of narrow door frames , thanks to its compact size of 86 × 86 × 25 mm .

Technical data sheet

DS-K7P03A

General
Power supply 12-24 VDC; ≤ 1 A
Working temperature -20 °C to 50 °C (-4 °F to 122 °F)
Working humidity 0 to 95% (relative humidity)
Dimensions 86 mm × 86 mm × 25 mm (3.39" × 3.39" × 1.01").
Weight Net weight: 0.108 kg (0.238 lb) Rough weight: 0.14 kg (0.31 lb)
Material Panel: stainless steel
Door type All kinds of narrow doorframes
Signal output NO/NC/COM contact
Aging Test Already passed 1 million times aging test
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
