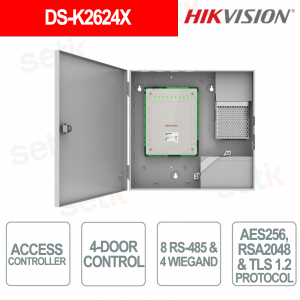

DS-K2624X 4-Door Access Control Controller OSDP Wiegand RS-485 100,000 Users - Hikvision

DS-K2624X 4-Door Access Control Controller OSDP Wiegand RS-485 100,000 Users - Hikvision

 
-35%

DS-K2624X - is a professional 4-door access control controller , based on a Linux system and designed to manage complex systems with configuration via web browser . It supports up to 100,000 users, 100,000 cards, 10,000 fingerprints and 300,000 events , as well as 8 RS-485 OSDP readers and 4 Wiegand readers . It integrates IPv4, IPv6 and DHCP network protocols, ISAPI, Hik-Connect and ISUP 5.0 communications and AES256, RSA2048 and TLS 1.2 encryption. It also offers advanced functions such as multi-factor authentication, anti-passback, multi-door interlocking, First Person In and support for HikCentral Professional, HikCentral Connect and Hik-Partner Pro . Hikvision

Technical Data Sheet

Reference: DS-K2624X

Brand: Hikvision

EAN: 6942160488004

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

DS-K2624X – PROFESSIONAL CONTROLLER - 4 PORTS

Hikvision

Hikvision DS-K2624X is a professional 4-door access control controller with Linux system, web browser management and support for Hikvision platforms. It offers a capacity of up to 100,000 users, 100,000 cards, 10,000 fingerprints and 300,000 events , with connection of up to 8 RS-485 OSDP readers and 4 Wiegand readers . It supports 10/100 Mbps network, ISAPI, Hik-Connect and ISUP 5.0 protocols and advanced functions such as multi-factor authentication, anti-passback, multi-door interlocking and First Person In . Security is strengthened by AES256, RSA2048 and TLS 1.2 , while 100-240 VAC power supply and battery support complete a reliable solution for professional installations.

Main features:

  • Doors: 4
  • Users: 100,000
  • Cards: 100,000
  • Footprints: 10,000
  • Readers: 8 RS-485 + 4 Wiegand
  • Security: AES256 / RSA2048 / TLS 1.2

Further details

✅ Doors:
The Hikvision DS-K2624X controller supports 4-door control , with 4 lock outputs, 4 exit buttons and 4 door contact inputs , offering centralized access management for professional systems.
✅ Network :
It integrates a self-adaptive 10/100 Mbps Ethernet connection and supports IPv4, IPv6 and DHCP , ensuring easy integration into network infrastructures and access to remote management functions.
✅ Security :
It supports AES256, RSA2048 and TLS 1.2 cryptographic protocols , designed to increase the protection of communications and data within the professional access control system.
✅ Readers:
It allows the connection of up to 8 RS-485 readers with OSDP protocol and 4 Wiegand readers , offering wide expansion capacity and compatibility with different readers for access control.
✅ Protocols :
It supports ISAPI, Hik-Connect and ISUP 5.0 network protocols , as well as OSDP for RS-485 readers and 26/34 bit Wiegand , with the ability to configure custom Wiegand formats for compatible devices.
✅ Functions :
It integrates professional features such as multi-factor authentication, anti-passback, multi-door interlocking and First Person In , as well as fire interface support , for advanced management of access and security scenarios.
✅ Management :
The DS-K2624X can be configured directly via web browser without dedicated software and supports Hik-Connect, HikCentral Professional, HikCentral Connect and Hik-Partner Pro , making it easy to manage and integrate into the Hikvision ecosystem.

Technical data sheet

DS-K2624X
Network
Wired network 10/100 Mbps self-adaptive
Interface
Network interface 1
Lock control 4
Exit button 4
Door contact input 4
Alarm input 8
Alarm output 4
TAMPER 1
RS-485 2 for card reader (1 for communication, 1 for redundancy; each interface can connect up to8 readers)
Wiegand 4, standard 26/34 input, supports custom Wiegand settings
Fire interface Support
Capacity
Linked door capacity 4
Linked card reader capaciry 8 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
General
Power supply 100 VAC to 240 VAC
Battery Charge and discharge
Power consumption ≤ 102 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 0% to 90% (no condensation)
Installation Wall mounting
Language English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian and Turkish
Function
Configuration via Web browser Support
Multi-factor authentication Support
Anti-passback Support
Multi-door interlocking Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
