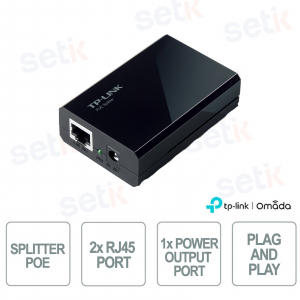

TP-Link TL-POE10R PoE Splitter 12W – Powers Access Points and IP Cameras

TP-Link TL-POE10R PoE Splitter 12W – Powers Access Points and IP Cameras

New

The TP-Link TL-POE10R PoE Splitter is the ideal solution for powering non-PoE devices such as access points, IP cameras, and VoIP phones using a single Ethernet cable up to 100 meters. Compliant with the IEEE802.3af standard, it receives power and data from a PoE switch or injector and splits them into two separate lines. With adjustable 5V, 9V, or 12V outputs and power output of up to 12W, it offers flexibility and safety thanks to built-in protection against overvoltage and short circuits. The compact design and Plug & Play feature ensure quick installation, making it perfect for both home and professional environments.

Technical Data Sheet

Reference: TL-POE10R

Brand: OMADA

EAN: 6935364030490

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TL-POE10R | POE SPLITTER IEEE 802.3af - TPLINK OMADA


Made Omada

The TP-Link TL-POE10R PoE Splitter allows you to power non-PoE devices such as access points, VoIP phones, and IP cameras using a single Ethernet cable for up to 100 meters. Compliant with the IEEE802.3af standard, it receives data and power from PoE switches or injectors and separates them into two separate lines, ensuring compatibility and flexibility. It offers adjustable 5V, 9V, or 12V outputs with power up to 12W, advanced safety with short-circuit protection, and instant Plug & Play installation.

Main specifications:

- Compatible with IEEE802.3af standard

- Adjustable 5V/9V/12V outputs up to 12W

- Data transmission and power up to 100m

- Short circuit and overvoltage protection

- Quick Plug & Play installation

Further details

Hardware Features :
Compact design (80.8 × 54 × 24 mm), LED connection status indicators, FCC, CE, and RoHS certifications. Includes power supply and Ethernet cable.
Interface :
1 RJ45 PoE In port (power+data) , 1 RJ45 LAN Out port, 1 DC Out socket with adjustable output.
Media :
Supports Cat.3/4/5 (10BASE-T), Cat.5/5e (100BASE-TX) and Cat.5/5e/6 (1000BASE-T) UTP cables, with a maximum distance of 100 meters.
Energy consumption:
Adjustable outputs at 5V/2A (10W) , 9V/1A (9W) or 12V/1A (12W) , with overvoltage, undervoltage and short circuit protection.
Plug & Play:
Instant installation with no configuration required: simply connect the cables for quick and easy power and data transmission.
Standard Compatibility:
Auto-Sensing algorithm to automatically detect the required power, support for energy classification and automatic disconnection in case of anomalies (overvoltage, undervoltage or overcurrent).

Technical data sheet

Model TL-POE10R
HARDWARE FEATURES
Interface 2x 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
Average 10BASE-T: UTP category 3, 4, 5 cables EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cables (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Basic Function Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply
Diet 12VDC 1A, 9VDC 1A, 5VDC 2A
LED ON: Connected to PSE correctly
Off: No PSE is connected
Dimensions (L x W x H) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic features Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supply
OTHER
Certification CE, FCC, RoHS
Package Contents

PoE Splitter TL-POE10R
RJ45 Cable
Power Card
Installation Guide

System requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
