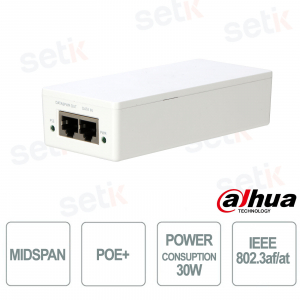

TAM1GT1GT-30 – 30W Gigabit PoE+ Midspan for IP Cameras and Professional Networks - Dahua

TAM1GT1GT-30 – 30W Gigabit PoE+ Midspan for IP Cameras and Professional Networks - Dahua

-57% New

TAM1GT1GT-30 - is a 30W PoE+ Midspan designed to provide power and Ethernet connectivity over a single cable, simplifying the installation of devices such as IP cameras, wireless access points and VoIP phones . Compatible with IEEE802.3af/at standards, it offers output up to 30W and supports Gigabit speeds for stable and fast data transmission. Thanks to its compact design and reliable operation over a wide temperature range from –10 °C to +55 °C , it guarantees constant performance even in harsh environments . The ideal solution for those seeking efficiency, reliability and ease of installation in professional PoE networks . Dahua

Technical Data Sheet

Reference: TAM1GT1GT-30

Brand: Dahua

EAN: 6939554947322

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TAM1GT1GT-30 | 30W POE+ MIDSPAN


Dahua

The Dahua TAM1GT1GT-30 is a compact and reliable 30W PoE+ midspan designed to provide power and Gigabit connectivity over a single Ethernet cable. Ideal for IP cameras, wireless access points, and VoIP phones, it supports IEEE802.3af/at standards and ensures stable and secure transmission even in harsh environments thanks to its operation range of –10°C to +55°C. With a maximum power consumption of 30W and LED status indicators, it simplifies installation and integration into any professional network.

Main specifications:

- PoE power up to 30W

- IEEE802.3af/at support

- Gigabit 10/100/1000 Mbps ports

- Compact and lightweight design (250 g)

- Operation from –10 °C to +55 °C

- Easy installation with AC 100–240V power supply

Further details

Ethernet Port :
The device features two 10/100/1000 Base-T Gigabit ports , one standard and one with PoE power. This configuration allows for simultaneous data and power transmission over a single Ethernet cable , reducing cabling costs and simplifying network management.
PoE Power Consumption:
The TAM1GT1GT-30 provides up to 30W of PoE power , enough to power high-power devices such as PTZ cameras, access points, or advanced VoIP phones. This ensures energy efficiency and compatibility with most PoE and PoE+ devices .
PoE Protocol:
Compliant with IEEE802.3af and IEEE802.3at standards, the midspan ensures universal interoperability with the most popular PoE devices on the market. This compliance ensures stable, secure, and uninterrupted transmissions , even in complex professional networks.
LED Indicator:

The device integrates intelligent LED indicators for easy operational monitoring:

  • PSE (green) : Indicates that the device is supplying power to the connected terminal (PD).

  • PWR (green) : Indicates that the unit is on and working properly.
    These indicators allow you to quickly check the status of the device and identify any anomalies in real time.

Technical data sheet

Model TAM1GT1GT-30
Technical Specification
Ethernet Port 1*10/100/1000 Base-T
1*10/100/1000 Base-T(PoE power supply)
PoE Power Consumption Power output ≤30W
PoE Protocol IEEE802.3af, IEEE802.3at
LED Indicator PSE: Indicates the device is delivering power to the PD.(Green)
PWR: Indicates the device is working properly. (Green)
Application Humidity 10%~90%
Power AC100~240V 50/60Hz
Working Temperature -10°C~55°C
Weight 250g
Dimension(W×D×H) 132.3mm×60mm×33mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
