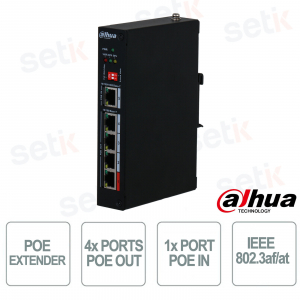

PFT1500 – 5-Port 90W PoE Extender for Video Surveillance and Professional Networks - Dahua

PFT1500 – 5-Port 90W PoE Extender for Video Surveillance and Professional Networks - Dahua

-57% New

PFT1500 - is a 5-port PoE Extender with 4 PoE out ports and 1 PoE in , designed to extend the transmission distance up to 350 meters in video surveillance systems and professional networks. It supports IEEE802.3af/at/bt and Hi-PoE standards, offering power supply up to 90W and Gigabit speed. The PoE Watchdog function ensures automatic reboot of devices in the event of an error, while the fanless metal design ensures durability and silence. With lightning protection up to 4 kV and operation from -30 °C to +65 °C , it is the ideal solution for industrial environments, car parks and large-scale surveillance systems . Dahua

Technical Data Sheet

Reference: PFT1500

Brand: Dahua

EAN: 6923172531926

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFT1500 | 5 PORT POE EXTENDER WITH 4 PORT POE OUT AND 1 PORT POE IN


Dahua

The Dahua PFT1500 is a high-performance 5-port PoE extender designed to extend network transmission up to 350 meters and power devices such as IP cameras, access points, and VoIP phones. It supports IEEE802.3af/at/bt and Hi-PoE standards, providing power up to 90W with PoE Watchdog for intelligent link management. The fanless metal design, lightning protection up to 4 kV, and wide operating range of –30°C to +65°C ensure reliability and durability even in harsh environments, ideal for video surveillance networks and industrial applications.

Main specifications:

- 5 PoE ports (4 out + 1 in) up to 350 m extension

- Support Hi-PoE / IEEE802.3bt up to 90W

- PoE Watchdog function for monitoring and automatic restart

- Metal body with lightning protection up to 4 kV

- Temperature range: from –30 °C to +65 °C

- Desktop or DIN rail mounting

Further details

Ethernet Port :
It has 4 10/100 Mbps PoE ports and 1 10/100/1000 Mbps PoE In port , ensuring stable and high-speed transmission . All ports support IEEE802.3af/at standards, while the red ports are also compatible with Hi-PoE and IEEE802.3bt , ensuring maximum compatibility and flexibility of use.
PoE Input:
Thanks to the Gigabit PoE input , the device receives power and data over a single Ethernet cable, reducing installation costs and simplifying connection management. This solution is perfect for expanding existing PoE networks without the use of external power supplies.
Long Distance PoE:
The Long Distance PoE function allows you to extend transmission up to 250 meters per port , maintaining a stable connection even over long cables. This mode can be activated via DIP switch or web interface , ideal for installations in large areas or facilities with extensive cabling.
Red Port 90W:
The red ports support power up to 90W with Hi-PoE and IEEE802.3bt standards, perfect for powering high-power devices such as PTZ cameras, access points, and industrial routers . They provide safe, continuous power, even with multiple devices connected.
PoE Watchdog:
PoE Watchdog constantly monitors port status and automatically reboots connected devices if a malfunction occurs . This feature reduces maintenance time, improves network reliability, and ensures intelligent, autonomous management of the PoE system .
Wide Operating Temperature:
Designed to withstand extreme conditions, the DH-PFT1500 operates within a temperature range of –30°C to +65°C , with professional lightning protection circuitry (up to 4kV) to protect your network during storms or power surges.
Full Metal Design:
The all-metal body ensures robustness, optimal heat dissipation , and long life. The fanless design ensures quiet operation, making it ideal for professional and industrial installations where reliability and operational continuity are essential.

Technical data sheet

Model PFT1500
Hardware
PoE Yes
Ethernet Port 4
Ethernet Port Speed 10/100 Mbps
Ethernet Port Uplink Speed 10/100/1000 Mbps
Description of Function Slots Port1-4: 4*RJ45 10/100 Mbps
Port5: 1*RJ45 10/100/1000Mbps
Operating Temperature –30 °C to +65 °C
Operating Humidity 5%–95% (RH)
Storage Temperature –40 °C to +70 °C
Storage Humidity 5%–95% (RH)
Power Consumption Idling: 5 W
Full load: 90 W
Performance
Layer Layer 2
Management Type No
MTBF 66.37
Switching Capacity 2.8 Gbps
Packet Forwarding Rate 2.08 Mpps
Packet Buffer Size 1 Mbit
Jumbo Frame 9K Bytes
MAC Table Size 4K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az
PoE
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Port 2-4 ≤ 30W, port 1 ≤ 90W, Full load ≤ 90W
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE Transmission Yes
Port
IEEE 802.3x Flow Control Yes
General
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.47 kg (1.03 lb)
Gross Weight 0.65 kg (1.43 lb)
Product Dimensions 150mm × 100mm × 30mm (5.9" × 3.9" × 1.2")
Packaging Dimensions 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99")
Casing Metal
Installation Desk Mount
Rail Mount Guides
Certifications CE; FCC
