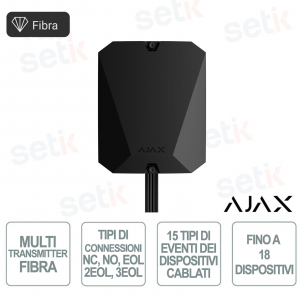

Ajax Superior MultiTransmitter Fiber 18 Zones Wiring Integration Module with 2000 m Fiber Communication

Ajax Superior MultiTransmitter Fiber 18 Zones Wiring Integration Module with 2000 m Fiber Communication

 
NEW New

143643.182.NC1 # 143643 | Ajax Superior MultiTransmitter Fibra is a wired integration module designed to connect up to 18 third-party devices to an Ajax system, providing maximum flexibility in professional security installations. It uses Fiber communication technology up to 2,000 m with encrypted data transmission and constant polling, ensuring stability and advanced protection. It supports NC, NO, EOL, 2EOL and 3EOL connections, over 10 event types and pulse/bistable operating modes, ensuring extensive compatibility with wired sensors. It integrates anti-sabotage protection with double tamper , anti-spoofing authentication and short circuit protection, with 100–240 V power supply and 12 V output for connected devices, making it ideal for upgrading existing wired systems with a modern look. Ajax

Technical Data Sheet

Reference: 143643.182.NC1

Brand: Ajax Systems

EAN: 4823114079580

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

143643.182.NC1 | WIRED MODULE FOR INTEGRATING UP TO 18 THIRD-PARTY DEVICES


Ajax

Ajax Superior MultiTransmitter Fibra is a wired integration module designed to connect up to 18 third-party devices to an Ajax system, offering an ideal solution for upgrading traditional alarm systems. Thanks to Fiber communication technology up to 2,000 m with encrypted data and constant polling, it ensures stable and secure transmission. It supports NC, NO, EOL, 2EOL and 3EOL connections, over 10 event types and pulse/bistable mode, ensuring maximum compatibility with wired sensors. It integrates anti-sabotage protection with double tamper , anti-spoofing authentication and short circuit protection, with 100–240 V power supply and 12 V output for connected devices, making it perfect for advanced professional systems.

Main specifications:

- 18 wired zones for third-party devices

- Fiber communication up to 2,000 m with data encryption

- Support NC, NO, EOL, 2EOL, 3EOL and more than 10 event types

- Double anti-sabotage tamper and anti-spoofing protection

- 100–240 V power supply with 12 V output for external devices

Further details

✅ Fiber Communication:
It uses wired fiber technology with a range of up to 2,000 meters , encrypted data transmission , regular polling of the device status and connection via U/UTP cable, ensuring stability, security and immunity to interference in professional systems .
✅ Connecting wired devices :
It allows integration of up to 18 third-party devices with support for NC, NO, EOL, 2EOL and 3EOL connections , management of over 10 event types and pulse/bistable mode, ideal for modernizing existing wired alarm systems .
✅ Anti-sabotage protection :
 It integrates double anti-opening and anti-removal tamper , device authentication against spoofing and short circuit protection, ensuring high reliability against tampering.
✅ Power supply:
 Main power supply 100–240 V 50/60 Hz with dedicated 12 V output for connected devices (up to 4 outputs), designed to ensure energy stability and operational continuity .
✅ Compatibility:
Compatible with Ajax hubs with Fiber technology and can be integrated into Superior systems, configurable and managed remotely via the Ajax PRO app , for complete and professional control of the system .

Technical data sheet

143643.182.NC1
Compatibility
Compatible hub models Superior Hub Hybrid (2G)
Superior Hub Hybrid (4G)
Compatible range extenders Range extenders with Fibra devices support will soon be added to Ajax devices product line.
Communication with hub
Fiber communication technology Fiber combines the reliability of wires with the freedom of radio connection.
It features Two-way communication.
Advanced anti-sabotage.
Instant notifications.
Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 m / up to 6,600 ft
When using the U/UTP cat.5 twisted pair.
Wired devices connection
Number of zones 18 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Type of connection NC, NO, EOL, 2EOL, 3EOL
With EOL resistance from 1 kΩ to 30 kΩ with 100 Ω increment.
Cable length up to 400 m/up to 1,300 ft
When using a copper signal cable with a 0.22 mm² cross-sectional area of ​​the conductor.
Operation mode pulse, bistable
Event type 7 types of alarms for each wired zone:
  • tamper alarm
  • intrusion
  • fire alarm
  • medical help
  • panic button
  • gas concentration alarm
  • malfunction
Adjusted by PRO or user with admin rights in the Ajax app.
Anti-sabotage protection
Tampering alarm Two tampers to detect the lid opening and alert about detachment from the wall.
Protection against forgery Device authentication
Communication loss detection within 3 seconds
Between hub and Superior MultiTransmitter Fibra.
Instant detection of wired connection loss, short circuits and malfunctions when using 2EOL/3EOL connection
Depends on the connection type.
Power supply
Superior MultiTransmitter Fiber power supply 110–240 V~
Superior MultiTransmitter Fiber backup power supply 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
Power supply of connected wired devices 10.5–15 V⎓, up to 1 A (total maximum current consumption)
Two power supply lines from Superior MultiTransmitter Fibra.
Power supply of connected fire detectors 10.5–15 V⎓, up to 0.4 A
One power supply line from Superior MultiTransmitter Fibra.
Enclosure
Dimensions 192 × 238 × 100 mm/7.56″ × 9.37″ × 3.94″
Weight TBC
Operating temperature range from −10°C to +40°C/from 14°F to 104°F
Operating humidity up to 75%
Protection class IP40
Complete set Superior Fiber MultiTransmitter
Power cable
12 V battery connection cable
Casing
Installation kit
Quick start guide
Warranty 24 months
