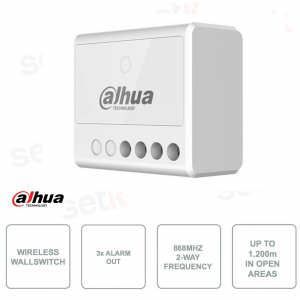

The ARM7012-W2-868 Wireless WallSwitch is a smart switch that allows you to remotely control 100-240V AC power with stable two-way wireless communication up to 1200 meters. It features overload, overheating, and overvoltage protection, as well as real-time monitoring of power consumption, voltage, and current. Thanks to AES128 encryption and automatic cloud updates, it ensures maximum security and reliability in home automation and intrusion detection systems. Dahua

Technical Data Sheet

Reference: ARM7012-W2-868

Brand: Dahua

EAN: 6923172558497

Disponibilità: 15

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARM7012-W2-868 | WIRELESS WALLSWITCH - 3 ALARM OUTPUTS - 868 MHz BI-DIRECTIONAL

Dahua

The Dahua ARM7012-W2-868 is a smart wireless switch ideal for remotely managing 100-240V AC power. Featuring stable two-way communication up to 1200 meters in open terrain, it offers maximum security thanks to AES128 encryption, overload and overheating protection, as well as constant monitoring of current, voltage, and consumption.

Main specifications:

- 868 MHz two-way wireless communication

- Jam detection, AES128 encryption and cloud updates

- Control loads up to 13A with overload/overheating protection

- Real-time monitoring of energy consumption

- Easy wall installation, compatible with DMSS and smart systems

Further details

Frequency Hopping:
The Dahua WallSwitch uses frequency hopping technology, which continuously switches the transmission frequency between 868.0 MHz and 868.6 MHz. This minimizes radio interference and ensures a stable and reliable connection even in environments crowded with wireless devices.
Jamming Detection :
The device integrates a jamming detection system that constantly monitors the signal and detects attempts to sabotage or block communication. If it detects suspicious signals, it activates protections to ensure operational continuity and system security.
Wireless :
Communication occurs via a two-way wireless connection up to 1200 meters in open terrain. Transmission uses advanced AES128 encryption to protect data and offers secure and stable remote control capabilities, ideal for home automation and intrusion detection systems with DMSS and Dahua cloud integration.
ARM7012-W2-868 dimensions

Technical data sheet

ARM7012-W2-868

Port

Relay Output

1, NO/NC (100–240 VAC, Max 13A)

Function

Indicator Light

1 for multiple statuses (pairing, communication)

Button

1

Remote Update

Cloud update

Technical

Test Mode

Yes

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Mechanism

Two-way

Communication Distance

1200 m (3937.01 ft) in open areas

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

100–240 VAC, 50/60 HZ

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75")

Packaging Dimensions

95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20")

Net Weight

45 g (0.10 lb)

Gross Weight

60 g (0.13 lb)

Installation

Wall mount

Casing Material

Plastic

Certifications

THERE IS

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
