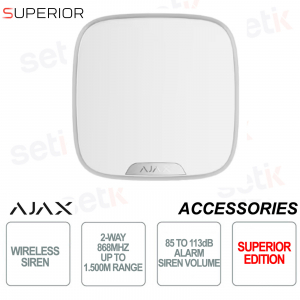

Superior StreetSiren DoubleDeck Jeweler White Wireless Siren 113dB IP54 Jeweler 1500m Anti-Sabotage - Ajax

Superior StreetSiren DoubleDeck Jeweler White Wireless Siren 113dB IP54 Jeweler 1500m Anti-Sabotage - Ajax

 

133226.61.WH1 #133226 (formerly 70226.61.WH1) | Ajax Superior StreetSiren DoubleDeck Jeweller white is a wireless siren designed for professional security systems, offering high protection thanks to Jeweller technology with communication up to 1500 m and encrypted data transmission. Ideal for indoor and outdoor use, it integrates a powerful acoustic alarm up to 113 dB with LED signaling , ensuring immediate deterrence in the event of intrusion. Equipped with anti-sabotage protection and jamming detection , it ensures maximum reliability against tampering attempts, while the resistant structure with IP54 rating makes it suitable for various environmental conditions. Installation is quick and easy via an app with QR code, with up to 5 years of battery life thanks to CR123A batteries , and the possibility of customization via the front Brandplate for professional integration and branding. Ajax

Technical Data Sheet

Reference: 133226.61.WH1

Brand: Ajax Systems

EAN: 4823114075551

Disponibilità: 6

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

FREE TVCC SIGN!×

With all >> AJAX KITS

133226.61.WH1 | WIRELESS SIREN WITH A MOUNT FOR A CUSTOMIZABLE FRONT PANEL


Ajax

The Ajax Superior StreetSiren DoubleDeck Jeweller wireless siren, 133226.61.WH1 , black, is a professional solution for advanced security systems, designed for indoor and outdoor use with stable communication thanks to Jeweller technology with a range of up to 1500 m and encrypted data transmission. It offers high deterrence thanks to the powerful acoustic alarm up to 113 dB with LED signaling , ensuring immediate notifications in the event of intrusion or system events. Equipped with anti-sabotage protection, jamming detection and device authentication , it ensures maximum security against tampering, while the IP54 certified structure makes it resistant to atmospheric agents. Installation is quick via an app with QR code and battery life of up to 5 years with CR123A batteries , with the possibility of customization via a front Brandplate for professional use and branding.

Main specifications:

- Jeweller technology up to 1500m for secure and stable wireless communication

- Audible alarm up to 113 dB with LED for high visibility and deterrence

- Anti-sabotage protection and jamming detection for advanced security

- Up to 5 years of battery life with CR123A batteries for long operating life

- IP54 protection rating for indoor and outdoor use

- Easy installation with QR code and Ajax app for quick setup

- Compatibility with Ajax hub and smart event notifications for complete management

- Customizable Brandplate front for professional integration and branding

Further details

✅ Jeweler Communication:
Advanced wireless Jeweller communication with a range of up to 1500 meters in open field , designed to ensure a stable and secure connection between siren and hub, with encrypted data transmission and constant polling to monitor the device status in real time.
✅ Main features :
Professional key features include acoustic signaling up to 113 dB , LED and sound notifications, event management such as alarms, arming/disarming and chime function, as well as the possibility of customization via front Brandplate for use in professional contexts and branding.
✅ Anti-sabotage protection :
 Complete anti-sabotage protection thanks to integrated security systems such as anti-tampering , jamming detection , device authentication against spoofing and secure fixing with SmartBracket , ensuring maximum reliability even in critical environments
✅ Power supply:
 Self-contained, long-lasting power supply based on 4 pre-installed Panasonic CR123A batteries , with up to 5 years of battery life, low battery notifications and optimised operation to reduce maintenance in professional security systems

Technical data sheet

133226.61.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.
Frequency bands 868.0–868.6 MHz
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range up to 1,500 m
up to 4,500 ft
Between the siren and the hub or range extender in an open space.
Encrypted communication All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Alarm type acoustic and LED
Buzzer and LED frame
Type of warning device type X
External, self-powered, remote power source with EN 50131-6 compliant power supply.
Alarm volume from 85 to 113 dB at a distance of 1 m / 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration from 3 s to 3 min
Adjusted by PRO or user with admin rights in the Ajax app
Siren sound frequency 1.60−4.5 kHz
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication Alerts
Delays when entering/leaving.
Security mode
Security mode changing
After-alarm indication
Jamming detection The siren detects jamming and alarms about it.
Customized branded faceplate
Brandplate Security service providers can print their logo and contact information on the siren's front panel.
Brandplate is sold separately from street sirens. To place an order, reach out to your regional Ajax partner. You can also compose a faceplate design in the Brandplate constructor.
Sabotage protection
Tampering alarm Notifications on attempts to detach the siren from the surface or remove it from the mounting panel.
Protection against spoofing Device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings
Main power supply
Batteries 4 × CR123A 3V⎓ Lithium battery
Pre-installed.
Type Type C.
Calculated battery life up to 5 years
Siren's operating voltage range 3.65−6.2 V⎓
Siren's nominal operating voltage 6 V⎓
Quiescent siren's current consumption at nominal voltage 60 µA
Peak siren's current consumption at nominal voltage 1.1 A
When the siren sounds at the Very Loud volume level.
Average siren's current consumption at nominal voltage 454 mA
When the siren sounds at the default volume level.
Regardless of the arming mode.
Full capacity 6,400 mAh
Low battery voltage 4.25 V⎓
End-of-life battery voltage 3.65 V⎓
Device is switched off.
End-of-life battery capacity 460 mAh
Manufacturer Panasonic
Optional power supply
Remote power supply's operating voltage 6−20 V⎓
Remote power supply's nominal voltage 12 V⎓
Quiescent siren's current consumption at nominal voltage 0.016 A
Average siren's current consumption at nominal voltage 0.29 A
When the siren sounds at the default volume level.
Regardless of the arming mode.
Peak siren's current consumption at nominal voltage 0.36 A
When the siren sounds at the Very Loud volume level.
Enclosure
Dimensions 200 × 200 × 55 mm
7.87″ × 7.87″ × 2.17″
Weight 516 g
18.20 oz
Operating temperature range from −25°C to +60°C
from −13°F to 140°F
Operating humidity up to 95%
Protection class IP54
Color White
Complete set Superior StreetSiren DoubleDeck Jeweller
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
