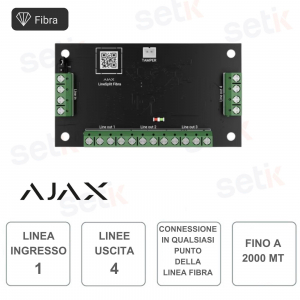

Superior LineSplit Fiber - AJAX module for splitting a fiber line into four lines

Superior LineSplit Fiber - AJAX module for splitting a fiber line into four lines

NEW

AJAX FIBER | 143609.170.NC1 #143609 (ex. 57204.170.NC1) - Superior LineSplit Fiber - Module for splitting a fiber line into four lines compatible with Hybrid Hub (2G) Hybrid Hub (4G), wired connection up to 2,000m. Number of input lines 1 - Number of output lines 4. Anti-sabotage protection - Power supply 6−30 V, up to 25 mW Dimensions 90 × 50 × 15 mm

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products you must have completed the certification or be enrolled in a certification course. Find out more.

Reference: 143609.170.NC1

Brand: Ajax Systems

EAN: 4823114039324

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

Sirena fibra

Prodotto Ajax

143609.170.NC1 (ex. 57204.170.NC1) | SUPERIOR LINESPLIT FIBER MODULE FOR DIVIDING A FIBER LINE INTO FOUR LINES




SUPERIOR LINESPLIT FIBER

|| COMPATIBLE WITH DEVICES:
  • HYBRID HUB (2G)
  • HYBRID HUB (4G)

143609.170.NC1 (ex. 57204.170.NC1) | SUPERIOR LINESPLIT FIBER MODULE FOR DIVIDING A FIBER LINE INTO FOUR LINES


Main features:

- Designed to split the Fiber line

- The LineSplit module splits a fiber line into four lines. Each output line of the device can have a maximum length of 2,000 meters when connected with U/UTP Cat.5 twisted pair cable.

LineSplit can be installed at any point on the line, especially after another LineSplit

- Advanced anti-sabotage system

-Wired communication with the hub up to a distance of 2,000 m

- Number of output lines 4

- Number of input lines 1

- Power supply 6 -30 V, up to 25 mW

- Operating temperatures from -10 C to +40°C

-Maximum permissible humidity up to 75%

- Dimensions 90 × 50 × 15 mm

-Weight 34g

143609.170.NC1 (ex. 57204.170.NC1) | SUPERIOR LINESPLIT FIBER MODULE FOR DIVIDING A FIBER LINE INTO FOUR LINES

Brand Ajax Fiber
security level Grade 3
Transmission distance Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
Bus connection 4-wire cable
Anti-opening tamper Available
Termination resistor jumper Available
Number of outgoing lines 4
Number of input lines 1
Diet 6−30 V
Compatibility Compatible with Hybrid Hub (2G and 4G)
Operating temp. -10 ºC ~ 40 ºC
Dimensions 50 (I) x 90 (W) x 15 (L) mm
Weight 34 g

143609.170.NC1 (ex. 57204.170.NC1) | SUPERIOR LINESPLIT FIBER MODULE FOR DIVIDING A FIBER LINE INTO FOUR LINES


Divides a Fiber line into four lines





Connection with fiber line

Up to 2000 meters

44412.07 fiber connection.jpg


Remote configuration and management



Low energy consumption

Up to 0.022W

143609.170.NC1 (ex. 57204.170.NC1) | SUPERIOR LINESPLIT FIBER MODULE FOR DIVIDING A FIBER LINE INTO FOUR LINES

>>Download the brochure
