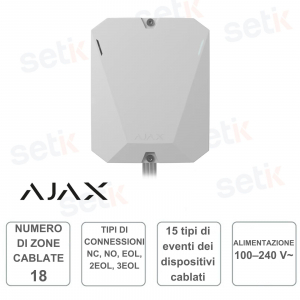

Ajax Superior MultiTransmitter Fiber - Module for integrating wired detectors and devices - White - Ajax

Ajax Superior MultiTransmitter Fiber - Module for integrating wired detectors and devices - White - Ajax

NEW

AJAX FIBER | 143632.62.WH1 #143632 (ex. 44410.62.WH1) - Ajax Superior MultiTransmitter Fiber - Wired module for integrating third-party wired detectors and devices with Fiber protocol. Two-way communication, advanced anti-sabotage system, instant notifications . Fiber cable length up to 2,000 meters. Number of zones 18 wired, type of connections NC, NO, EOL, 2EOL, 3EOL . Power supply 100–240 V~. For indoor use only.

Color White .

192 × 238 × 100 mm

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products you must have completed the certification or be enrolled in a certification course. Find out more.

Reference: 143632.62.WH1

Brand: Ajax Systems

EAN: 4823114079443

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.


Prodotto Ajax

143632.62.WH1 | AJAX SUPERIOR FIBER MULTITRASMITTER - MODULE FOR INTEGRATION OF THIRD-PARTY WIRED DETECTORS INTO AN AJAX SYSTEM



AJAX FIBER | AJAX SUPERIOR FIBER MULTITRANSMITTER

|| COMPATIBLE WITH DEVICES:
  • HYBRID HUB (2G)
  • HYBRID HUB (4G)

143632.62.WH1 | AJAX SUPERIOR FIBER MULTITRASMITTER - MODULE FOR INTEGRATION OF THIRD-PARTY WIRED DETECTORS INTO AN AJAX SYSTEM


Main features:

  • Ajax Fiber
  • Wired zone expander
  • Fiber Protocol
  • Grade 3 Certificate
  • Bidirectional
  • Bus line range up to 2000 m
  • 18 wired inputs
  • Compatible with 15 different event types
  • Alarm inputs NO, NC, EOL, 2EOL, 3EOL
  • Anti-opening tamper
  • Power output 12 V / 1 A
  • Power supply 100-220 VAC and backup battery up to 7 Ah (not included)
  • Compatibility with third-party detectors with wired alarm output
  • Compatibility with Hybrid Hub (2G and 4G)
  • White color

143632.62.WH1 | AJAX SUPERIOR FIBER MULTITRASMITTER - MODULE FOR INTEGRATION OF THIRD-PARTY WIRED DETECTORS INTO AN AJAX SYSTEM

Brand Ajax Fiber
security level Grade 3
Transmission distance Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
Bus connection 4-wire cable
Wired inputs Up to 18 (Intrusion, Fire, Medical, Panic button, Gas alarm, Tamper alarm, Malfunction, Flood, Custom)
Tamper entry NC: Normally Closed
Alarm inputs NO, NC, EOL, 2EOL, 3EOL / Pulsed or bistable
End of line resistor (EOL) From 1 kΩ to 15 kΩ in 100 Ω increments
Cable length Up to 400 meters
Anti-opening tamper Front and rear
Power output Two 12V/1A outputs (total) for wired detectors
Compatibility Compatible with Hybrid Hub (2G and 4G)
Diet AC 110~240 V, 50/60 Hz
Spare battery Battery 12 V / up to 7 Ah (not included)
Operating temp. -10 ºC ~ 40 ºC
Dimensions 238 (I) x 192 (W) x 100 (L) mm
Weight 798 g
Maximum permissible humidity up to 75%
Protection class IP40
Color White

143632.62.WH1 | AJAX SUPERIOR FIBER MULTITRASMITTER - MODULE FOR INTEGRATION OF THIRD-PARTY WIRED DETECTORS INTO AN AJAX SYSTEM

3 independent 12V power lines

for fire and intrusion detectors




Instant wired connection loss (EOL) detection


18 zones to connect detectors






Connection with fiber line

Up to 2000 meters

44412.07 fiber connection.jpg


Remote configuration and management




Space for 12V 4 or 7Ah spare battery

15 types of wired device events

  • Tamper alarm
  • Intrusion
  • Fire
  • Emergency aid
  • Panic button
  • Gas leak alarm
  • Malfunction
  • Flooding
  • Glass breakage
  • High temperature
  • Low temperature
  • Masking
  • Coercion Code (Opening)
  • Vibration (seismic sensor)
  • Custom

44412.07 notifications.jpg

143632.62.WH1 | AJAX SUPERIOR FIBER MULTITRASMITTER - MODULE FOR INTEGRATION OF THIRD-PARTY WIRED DETECTORS INTO AN AJAX SYSTEM

>>Download the brochure


Ajax Systems

WHO IS AJAX?

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELLER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that 's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install; it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.

WHY CHOOSE AJAX ALARMS?

Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from your smartphone or PC.

Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.

Here's the real difference compared to other competitors!


With just a few simple taps , you can:

- Arm/Disarm the alarm

- Get instant notifications

- Get detailed information about the device status

- Perform remote testing and configurations

- Automatic updates
