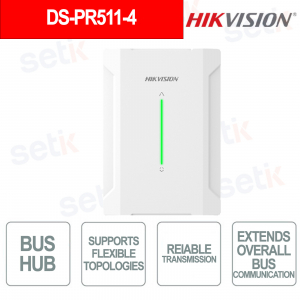

DS-PR511-4 – BUS HUB

Hikvision

The Hikvision DS-PR511-4 Bus Hub module is designed to optimize signal distribution in intrusion detection systems, managing a bus input with 4 independent outputs for efficient and organized branching. It supports flexible star and tree topologies , adapting to different system configurations, while integrated signal regeneration ensures stable and reliable transmissions. Ideal for complex installations, it extends the range of bus communication and facilitates system upgrades and segmentation.

Main features:

- Bus signal distribution from 1 input to 4 outputs for efficient branching

- Support for star and tree topologies for maximum system flexibility

- Built-in signal regeneration for stable and reliable transmission

- Extension of bus communication for long-distance installations

- Flexible cabling for segmentation and upgrading of existing systems


Further details

Bus signal distribution:
The device allows you to divide a single bus input into 4 independent outputs , allowing efficient management of the branches and better organisation of the intrusion detection system.
Topology support :
Compatible with star and tree configurations , it guarantees maximum design flexibility and adaptability to different installation scenarios, even complex ones.
Signal regeneration :
It integrates a bus signal regeneration function, which ensures stable, reliable and lossless transmission , improving overall system performance.
Communication extension :
Designed to extend bus range over long distances , it enables large-scale installations while maintaining high signal quality and continuity .

Flexible wiring :
It allows for versatile cabling for area segmentation, branching and upgrading of existing systems , facilitating system integration and expansion.

Technical data sheet

DS-PR511-4

Bus interconnection

Bus extender Support
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Power supply - general
Input voltage 12 VDC nominal (9~16 VDC), powered by bus
Quiescent current 10 mA @12VDC
Max. current 85 mA @12VDC
Environmental
Operating temperature -10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature -20°C to 60°C (-4°F to 140°F)
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 110 × 155 × 31 mm
Weight 208 g
Installation method Wall mount
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
