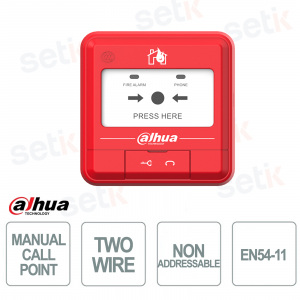

HY-C121 Conventional Fire Alarm Manual Call Point EN54-11 - Dahua

HY-C121 Conventional Fire Alarm Manual Call Point EN54-11 - Dahua

-56%

HY-C121 - The conventional manual call point is designed to ensure quick and effective activation of fire alarms thanks to the 2-wire technology without polarity , which simplifies wiring and installation. Equipped with a highly reliable manual contact , it immediately sends the alarm signal to the fire control panel once pressed. The resistant structure with anti-corrosion materials and anti-loosening screws ensures long life and operational stability even in industrial environments. Thanks to its high resistance to electromagnetic interference (EMC) and EN54-11 compliance, it is an ideal solution for hotels, schools, offices, hospitals, warehouses and shopping malls. Dahua

Technical Data Sheet

Reference: HY-C121

Brand: Dahua

EAN: 6939554901256

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HY-C121 | MANUAL CALL POINT

Dahua

The Dahua HY-C121 conventional manual call point is designed to ensure immediate activation of fire alarms thanks to the 2-wire non-polarity technology , which simplifies wiring and improves installation in professional systems. Equipped with a highly reliable manual contact , it quickly sends the alarm signal to the control panel once pressed. The resistant structure with anti-corrosion materials and anti-loosening screws ensures long life and maximum operational stability even in industrial environments. Thanks to its high resistance to electromagnetic interference (EMC) and EN54-11 compliance, it is an ideal solution for hotels, schools, hospitals, offices, factories and warehouses.

Main specifications:

- 2-wire, polarity-free technology for simple wiring and quick installation

- Integrated manual contact for immediate activation of the fire alarm

- High EMC resistance against electromagnetic interference for greater reliability

- Non-addressable structure for simplified configuration and management

- Acid and corrosion resistant materials for long-lasting durability

- Anti-loosening screws for stable and secure mounting

- EN54-11 compliant certified for professional fire protection systems

Further details

2-wire technology:
2-wire, polarity-free technology designed to simplify wiring and speed up fire manual call point installation, ensuring greater convenience and reliability in professional security systems.
High resistance:
High resistance to electromagnetic interference (EMC) ensures operational stability, reliable communications and continuous protection even in complex industrial environments or those subject to electrical noise.
EN54-11 compliant:
EN54-11 compliant certified according to European standards for professional fire protection systems, guaranteeing safety, reliability and perfect integration with conventional fire protection control panels.

Technical data sheet

HY-C121
Technical Specification
Operating Voltage DC9V-DC30V
Operating Current Static current: ≤ 40μA
Alarm current: ≤ 9mA
Alarm Mode Visual alarm
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")
Weight (with base) 136 g (0.30 lb)
Installation Wall Mount
Certification EN 54-11
