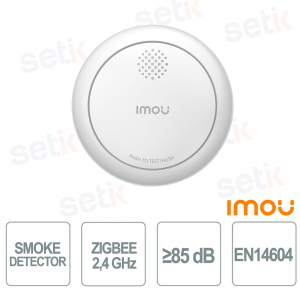

IMOU ZSM1 Zigbee EN14604 Smart Smoke Detector with 85 dB Alarm and 5 Year Battery

IMOU ZSM1 Zigbee EN14604 Smart Smoke Detector with 85 dB Alarm and 5 Year Battery

-10%

ZSM1-IMOU - The smart smoke detector is an EN 14604 certified security solution, equipped with 2.4 GHz Zigbee connectivity and compatible with gateways to receive remote notifications and silence the alarm via app. It integrates a powerful siren of at least 85 dB , visual signaling with a red LED and a linked alarm function between multiple devices, so when one sensor detects smoke, all the others are activated. It also works offline for local alerts, offers a communication range of up to 130 meters and guarantees over 5 years of battery life with a lithium battery. Installation is simple on the wall or ceiling using screws or 3M adhesive tape. Imou

Technical Data Sheet

Reference: ZSM1-IMOU

Brand: IMOU

EAN: 6937479601725

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou uses smart and easy-to-use technologies designed for home and small and medium-sized business security. All systems are compatible with Alexa and Google Home, if you want to monitor what matters for you the most, all you have to do is ask the device to show you the images.

[short_description] =>


Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers, as highlighted by the official claim: 'Enjoy Smart Life'

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2026-02-19 17:36:36 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => [meta_description] => Imou was created with the aim of proposing intelligent solutions that enable everyone to enjoy a more comfortable and safer life, simplifying everyday life for consumers [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ZSM1-IMOU | SMART SMOKE DETECTOR - ZIGBEE EN14604


The IMOU ZSM1 smart smoke detector is EN 14604 certified and uses 2.4 GHz Zigbee technology to send alarm notifications and allow remote silencing via the gateway and app. The siren, rated at least 85 dB , and the red LED provide immediate audible and visual alerts, while the interconnected alarm simultaneously activates all associated detectors. It also works offline for local alerts, offers a range of up to 130 meters , and integrates a lithium battery with a lifespan of over 5 years . Wall or ceiling installation is easy thanks to the included bracket, screws, and 3M adhesive tape.

Main specifications:

  • Certification: EN 14604
  • Connection: Zigbee 2.4 GHz
  • Alarm: ≥85 dB
  • Range: up to 130 m
  • Autonomy: over 5 years
  • Installation: wall or ceiling

Further details

Certification:
Compliant with the EN 14604 standard , the IMOU ZSM1 smoke detector guarantees high standards of safety , reliability and performance for the protection of homes, offices and commercial environments.
Connection:
Using 2.4GHz Zigbee technology, the device connects to a compatible gateway to send push notifications , enable remote silencing , and share alarms with multiple users via a dedicated app.
Alarm:
The powerful siren of over 85 dB , combined with the LED indicator , ensures immediate warning in case of smoke detection. Furthermore, the interconnected alarm function automatically activates all associated detectors, even in the absence of an internet connection.

Range:
Wireless communication offers coverage of up to 130 meters , ensuring a stable connection between the detector and the gateway for efficient management even in large environments.

Autonomy:
Powered by a CR123A lithium battery , the sensor ensures an autonomy of more than 5 years , reducing maintenance interventions and guaranteeing continuous monitoring over time.

Technical data sheet

ZSM1-IMOU
General
Appearance size:φ86 x H34.5mm
Working voltage: DC3V (1xCR123A/CR17335 Lithium Battery )
Visual alarm signal: red LED indicator
Sound Level:≥85dB(at 3m straight ahead )
Standby current: ≤10uA
Low pressure alarm: 2.6±0.05V
Working current: 150mA
Operatign temperatures:32°Fto131°F
Mounting: wall mounting or ceiling mounting
Battery life: >5 years
Weight: 150g
Network
Wireless protocol: Zigbee
Transmit frequency: 2.4GHz
Transmit power: 6dB/m
Communication distance: 130m
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
