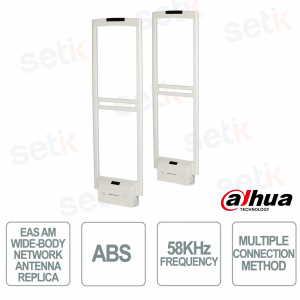

ISC-EAA2X-C201-R EAS AM Anti-Theft Replica Antenna 58 kHz for Retail and Shop Security Systems - Dahua

ISC-EAA2X-C201-R EAS AM Anti-Theft Replica Antenna 58 kHz for Retail and Shop Security Systems - Dahua

 

ISC-EAA2X-C201-R - is an EAS AM replica antenna designed to extend the coverage of anti-theft systems in retail stores, ensuring high accuracy in the detection of labels and tags at 58 kHz . Thanks to advanced signal processing technology , it ensures a low false alarm rate and excellent resistance to environmental interference. Compatible with the primary antennas of the ISC-EAA2 series, it offers detection up to 2.2 m , audible and light alarm , low power consumption and an elegant design, ideal for supermarkets, clothing stores, pharmacies and commercial activities that require a reliable and efficient anti-theft system. Dahua

Technical data sheet

Reference: ISC-EAA2X-C201-R

Brand: Dahua

EAN: 6923172562777

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

ISC-EAA2X-C201-R | 58KHz AM NETWORK EAS REPLICATION ANTENNA

Dahua

The Dahua ISC-EAA2X-C201-R is a 58 kHz AM EAS replica antenna designed to expand EAS systems in stores, ensuring precise label and tag detection up to 2.2 meters depending on the installation environment. Thanks to advanced signal processing technology , it offers low false alarms , interference resistance and high-visibility audible and light alarm . Compatible with ISC-EAA2 series primary antennas, it is the ideal solution for supermarkets, pharmacies, clothing stores and retail businesses requiring a reliable, efficient and easy-to-integrate EAS system.

Main specifications:

- Technology: EAS AM 58 kHz replica antenna

- Detection: Up to 2.2m for AM tag

- Alarm: Integrated acoustic and luminous

- Reliability: Low false alarm rate

- Protection: High resistance to interference

- Compatibility: Connectable to ISC-EAA2 primary antennas

- Applications: Ideal for supermarkets, shops and retail

Further details

✅ EAS Label and Tag Detection :
EAS AM 58 kHz technology accurately detects anti-theft labels and tags , triggering an adjustable audible and visual alarm when a protected item passes by, improving store security.
✅ Stable Hardware Performance:
The high-performance hardware, featuring advanced drive driver and multi-stage amplifier , ensures stable and continuous operation without performance drops or thermal drift, even during prolonged use.
✅ Strong Anti-interference Ability:
Advanced sensitivity adjustment and automatic phase synchronization reduce environmental interference and interference from other EAS systems, ensuring reliable detection with minimal false alarms.
✅ Strong Signal Processing Capability:
The innovative signal filtering algorithm accurately identifies anti-theft labels , offering high detection accuracy and a significant reduction in false positives.
✅ Multiple Connection Methods:
The primary and replica antennas both integrate transceiver functionality, allowing for flexible configurations and easy system expansion while maintaining consistent detection performance across the protected area.
✅ Performance :
The antenna offers a detection distance of up to 1.9m for AM labels and up to 2.2m for AM tags , with up to 90dB adjustable alarm , representing a reliable solution for supermarkets, clothing stores, pharmacies and other retail environments.

Technical data sheet

MODEL ISC-EAA2X-C201-R
Performance
Technology Acousto-Magnetic Antenna
Detection Frequency Band 58 kHz
Detection Distance of EAS Labels 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type Replica Antenna
Adaptability A Single primary antenna can connect to two replica antennas simultaneously
Sound and Light Alarm Yes
Network Communication Protocol N/A
Open Protocols N/A
Supporting Software N/A
Configuration on Webpage N/A
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Regular Parameters
Shell Material ABS
Shell Color White
Input Voltage 24 VAC @ 50 Hz / 60 Hz
Output Voltage N/A
Maximum Power Consumption 23 W
Typical Power Consumption 18 W
Overall Exterior Size 1580 mm × 500 mm × 125 mm (62.20'' × 19.69'' × 4.92'')
Packing Size of Primary / Replica Antenna 1650 mm × 560 mm × 230 mm (64.96'' × 22.05'' × 9.06'')
Gross Weight 8.5 kg (18.74 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
