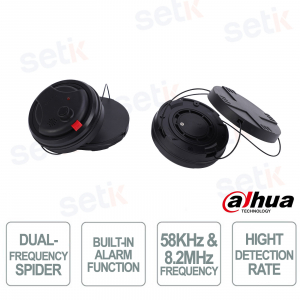

ISC-ETD2A-T511B-S Spider Dual Frequency AM/RF Anti-Theft Label with Integrated Alarm 1600 mm - Dahua
The ISC-ETD2A-T511B-S is a Spider Dual-Frequency anti-theft label designed for the protection of boxes and packages in the retail sector. Thanks to its compatibility with AM 58 kHz and RF 8.2 MHz technologies, it offers high detection capacity and superior security. The 1600 mm adjustable metal cable ensures stable fixing, while the integrated ≥90 dB alarm is activated in the event of tampering or cutting of the cable, discouraging theft attempts. Made of high-strength ABS , it is reusable , resistant to damage and equipped with a CR2032 battery with up to 2 years of battery life, representing a reliable and economical solution for the protection of goods. Dahua
ISC-ETD2A-T511B-S | SPIDER AM/RF ANTI-THEFT DEVICE

The Dahua ISC-ETD2A-T511B-S is a Spider Dual Frequency anti-theft label designed to protect valuable boxes and packages at points of sale. Compatible with AM 58 kHz and RF 8.2 MHz technologies, it ensures high detection capacity and effective protection against theft. The 1600 mm adjustable metal cable ensures a secure fit, while the integrated ≥90 dB alarm is activated in the event of tampering or cable cutting. Made of high-resistance ABS , it is reusable, equipped with a battery with up to 2 years of autonomy and represents a reliable, economical solution that is compliant with RoHS and REACH regulations.
Main specifications:
- Technology: Dual Frequency AM 58 kHz / RF 8.2 MHz
- Alarm: Built-in ≥90 dB
- Cable: Adjustable metal 1600 mm
- Material: High strength ABS
- Battery: CR2032 with up to 2 years of battery life
- Reuse: Reusable after unlocking
- Certifications: RoHS and REACH
Further details
Thanks to its compatibility with AM (58 kHz) and RF (8.2 MHz) technologies, the label offers high detection capacity at anti-theft gates, ensuring reliable control and reducing the risk of theft at points of sale.
Technical data sheet
| MODEL | ISC-ETD2A-T511B-S |
| Performance | |
| Technology | Acousto-Magnetic (AM) & Radio-Frequency (RF) |
| Detection Frequency Band | 58 kHz ± 0.5 kHz & 8.2 MHz ± 0.4 MHz |
| AM Antenna Detection Distance | ≤ 1.0 m (Based on system performance) |
| RF Antenna Detection Distance | ≤ 0.8 m (Based on system performance) |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Lock Strength | Super |
| Certifications | RoHS compliant Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments. |
| General | |
| Alarm Sound Pressure | ≥ 90 dB |
| Alarm Duration | 5 min ± 10 s |
| Low Battery Alert | Yes (When Enter Protection Mode) |
| Battery Model | CR2032 |
| Battery Life | ≥ 2 years |
| Flashing Interval | 12 s ± 2 s |
| Tensile Capacity | ≥ 350 N |
| Net Bag Length | 1600 mm (62.99'') |
| Lanyard Type | Metal Cable |
| Color | Black |
| Length | 70 mm (2.76'') ± 0.5 mm (0.02'') |
| Width | 70mm (2.76'') ± 0.5mm (0.02'') |
| Thickness | 44.3 mm (1.74'') ± 0.5 mm (0.02'') |
| Packaging | 100 Tags per Carton |
| Carton Dimension | 380mm × 340mm × 280mm (14.96'' × 13.39'' × 11.02'') |
| Carton Weight | 11 kg (24.25 lb) |
| Minimum Order Quantity | 100 pcs |
| Environmental Constraints | |
| Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 20% –90% (RH) |
