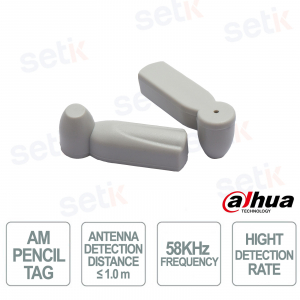

The ISC-ETA5-T010C is an AM Pencil Tag designed for the protection of clothing and textile products , ensuring secure attachment and high tamper resistance. Thanks to 58 kHz Acousto-Magnetic (AM) technology , it offers excellent detection capability in combination with anti-theft gates. The compact and lightweight design in high-strength HIPS ensures ease of use, high reusability and low operating costs, representing a reliable, economical solution that is compliant with RoHS and REACH regulations. Dahua
ISC-ETA5-T010C | ANTI-THEFT LABEL AM PENCIL TAG T010C

The Dahua ISC-ETA5-T010C is an AM Pencil Tag designed for the protection of clothing and textile products , ideal for fashion and retail stores. Thanks to 58 kHz Acousto-Magnetic (AM) technology , it guarantees high detection capacity and effective theft prevention. The compact and lightweight design in high-strength HIPS ensures secure attachment, high reusability and reduced operating costs, offering a reliable, durable solution that is compliant with RoHS and REACH regulations.
Main specifications:
- Technology: AM 58 kHz
- Application: Clothing and textiles
- Material: High strength HIPS
- Detection: High anti-theft effectiveness
- Design: Compact and lightweight
- Reuse: Reusable after unlocking
- Certifications: RoHS and REACH
Further details
Thanks to 58 kHz Acousto-Magnetic (AM) technology , the Pencil Tag guarantees high detection capacity at anti-theft checkpoints, ensuring effective product protection and helping to significantly reduce theft attempts.
Technical data sheet
| MODEL | ISC-ETA5-T010C |
| Performance | |
| Technology | Acousto-Magnetic (AM) |
| Detection Frequency Band | 58 kHz ± 0.5 kHz |
| Antenna Detection Distance | ≤ 1.0 m (Based on system performance) |
| Shell Material | High Impact Polystyrene (HIPS) |
| Lock Strength | Standard |
| Certifications | RoHS compliant Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments. |
| General | |
| Color | Grey |
| Length | 45.5 mm (1.79'') ± 0.5 mm (0.02'') |
| Width | 12.7mm (0.50'') ± 0.5mm (0.02'') |
| Thickness | 17.2 mm (0.67'') ± 0.5 mm (0.02'') |
| Packaging | 1000 pcs per carton |
| Carton Dimension | 380 mm × 290 mm × 140 mm (14.96'' × 11.42'' × 5.51'') |
| Carton Weight | 8.50 kg (18.74 lb) |
| Minimum Order Quantity | 1 carton |
| Environmental Constraints | |
| Temperature | 0 °C–50 °C (32 °F to 122 °F) |
| Humidity | 10% –90% (RH) |
