ISC-EAR8-C108-R 8.2 MHz RF Anti-Theft Acrylic Antenna with RJ45 Network and CCTV Integration - Dahua

ISC-EAR8-C108-R 8.2 MHz RF Anti-Theft Acrylic Antenna with RJ45 Network and CCTV Integration - Dahua

 

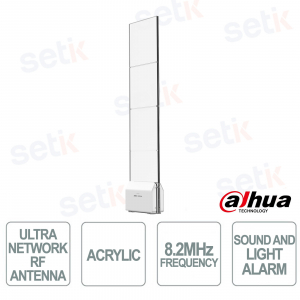

ISC-EAR8-C108-R - The RF anti-shoplifting antenna is a professional solution designed to ensure effective protection against theft in retail stores, thanks to 8.2 MHz Radio Frequency (RF) technology. Made of transparent acrylic with customizable LED backlighting , it offers precise detection of RF labels and tags , adjustable audible and light alarm up to 90 dB and network communication via RJ45 with remote management via Web, DSS Pro and ConfigTool. The CCTV integration function also allows automatic recording of alarm events, making it ideal for supermarkets, clothing stores, pharmacies and shopping malls. Dahua

Technical data sheet

Reference: ISC-EAR8-C108-R

Brand: Dahua

EAN: 6923172590343

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

ISC-EAR8-C108-R | RF ANTI-THEFT ANTENNA

Dahua

The Dahua ISC-EAR8-C108-R anti-shoplifting antenna is a professional 8.2 MHz RF EAS solution designed to ensure high protection against theft in retail environments. Thanks to the precise detection of RF labels and tags , the adjustable audible and light alarm up to 90 dB , and anti-interference technology , it ensures reliable performance with a very low false alarm rate. The transparent acrylic body with LED backlighting offers a modern design, while RJ45 network connectivity , remote web management and integration with CCTV systems make it ideal for supermarkets, shops, pharmacies and shopping centres.

Main specifications:

  • Technology: RF 8.2 MHz
  • Detection: RF Labels and Tags
  • Alarm: Audible and visual up to 90 dB
  • Connectivity: RJ45, HTTP/TCP-IP and Web management
  • Integration: CCTV, DSS Pro and ConfigTool
  • Material: Clear acrylic with LED
  • Installation: Vertical mounting
  • Applications: Supermarkets, shops, pharmacies and shopping centres

Further details

✅ EAS Label and Tag Detection :
The system guarantees precise detection of 8.2 MHz RF labels and tags , ensuring high reliability in anti-theft control and optimal coverage of the entrances, with a very low false alarm rate thanks to the advanced signal filtering algorithms.
✅ Sound and Light Alarm:
In case of unauthorized detection, the antenna activates an acoustic alarm up to 90 dB and a LED light signal , offering immediate identification of the event and an effective response against theft attempts.
✅ Phase Adjustment Technology:
Multi-phase scanning technology enables accurate tag and label recognition from any direction. Automatic or manual phase adjustment improves detection accuracy, reduces blind spots, and optimizes the effectiveness of the anti-theft system.
✅ Standby Backlight:
The customizable LED backlight allows you to adjust the color of the light in standby mode, enhancing the aesthetics of the installation and fitting perfectly into any modern commercial environment.
✅ Alarm Output:
The alarm output allows integration with CCTV systems, automatically synchronizing the event with the video surveillance cameras to record the alarm images and facilitate subsequent checks.
✅ Performance :
Thanks to RF technology , high interference immunity , sensitivity adjustment and stable signal transmission, the device ensures consistent performance , long operating life and reliable detection of labels and tags even in high-traffic environments.
✅ Ports :
The antenna is equipped with a CCTV output port for connection to video surveillance systems, an RJ45 network interface for remote management via the Web and dedicated platforms, as well as a power terminal block for simple and professional installation.

Technical data sheet

MODEL ISC-EAR8-C108-R
Performance
Technology Radio Frequency (RF)
Detection Frequency Band 8.2 MHz
Detection Distance of EAS Labels 1.4 – 1.6 m (4.59 ft – 5.25 ft) (Distance of two antennas) * depending on environment
Detection Distance of EAS Tags 1.6 – 1.8 m (5.25 ft – 5.91 ft) (Distance of two antennas) * depending on environment
Alarm Volume Max 90 dB (Adjustable)
Antenna Type RX Antenna
Adaptability A Single TX antenna can connect to two RX antennas simultaneously
Sound and Light Alarm Yes
Network Communication Protocol HTTP, TCP/IP
Open Protocols SDK
Supporting Software DSS Pro, Configtool, WISS
Configuration on Webpage Yes
Certification
Certifications IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
RoHS RoHS compliant
Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments.
Safety ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005
EN IEC 62311:2020
EN 50364:2010
EN 62369-1:2010
Ports
CCTV Port Output port for the linkage signal of the camera.
Network Interface RJ45
Power Interface 4 Pin Terminal Block
Regular Parameters
Shell Material Acrylic
Shell Color Transparent
Input Voltage 24 VAC / 3 A
Output Voltage NA
Maximum Power Consumption 5 W
Typical Power Consumption 4 W
Overall Exterior Size 1569 mm × 350 mm × 134 mm (61.77" × 13.78" × 5.28")
Packing Size of Primary / Replica Antenna 1690 mm × 464 mm × 213 mm (66.54" × 18.27" × 8.39")
Net Weight 15 kg (33.07 lb)
Gross Weight 20 kg (44.09 lb)
Operating Temperature 0 °C to 45 °C ( 32 °F to 113 °F)
Operating Humidity 0% – 95% (RH)
Installation Vertical pole mount
