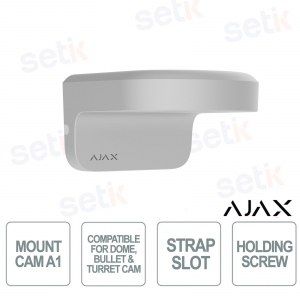

Ajax MountCam A1 White Bracket – Secure Mounting for Video Surveillance

Ajax MountCam A1 White Bracket – Secure Mounting for Video Surveillance

New

147751.370.WH1 # 147751 | Ajax MountCam A1 White is a professional mounting bracket designed to ensure a stable, clean, and unobstructed installation for Ajax IP cameras. Designed for both indoor and outdoor use, it allows for the ideal angle even in difficult locations such as under eaves, narrow walls, or pillars, ensuring seamless aesthetic integration with the camera design. The frame includes pre-drilled holes, internal cable routing, and a complete set of accessories for quick and secure mounting. Thanks to its compatibility with numerous Ajax models, the MountCam A1 offers a reliable, durable, and discreet mount for any professional video surveillance need. Ajax

Technical Data Sheet

Reference: 147751.370.WH1

Brand: Ajax Systems

EAN: 4823114080708

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

147751.370.WH1 | 164mm WALL BRACKET FOR ONE IP CAMERA.


Ajax

The Ajax MountCam A1, 147751.370.WH1, white, is a professional mounting bracket designed for clean, secure installations that seamlessly integrate with Ajax IP cameras. Ideal for both indoor and outdoor use, it allows for optimal viewing angles, eliminating visual obstructions and facilitating installation even in challenging locations such as under eaves, narrow walls, or pillars. The sturdy construction features pre-drilled holes, an internal cable duct for neat cable management, and a complete hardware kit, ensuring quick and easy installation. With an elegant design that matches the cameras, the MountCam A1 offers a solid, discreet, and durable mount for professional video surveillance systems.

Main specifications:

- Clean and uniform design, in black color, perfectly matching Ajax cameras

- Compatible with various Ajax models for versatile indoor/outdoor installations

- Optimized angle to eliminate obstacles and improve field of view

- Pre-drilled holes and complete mounting kit for quick installation

- Internal cable gland for neat and protected wiring management

- Robust and weather-resistant construction, ideal for wall or ceiling mounting

Further details

Sturdy and durable structure :
Able to keep the camera stable even in critical positions such as under eaves, narrow walls or hard-to-reach areas.
Pre-drilled holes for quick assembly:
They allow you to attach both the bracket and the camera in just a few minutes, reducing installation time and complexity.
Dedicated internal cable gland:
useful for hiding and organizing cables inside the bracket, ensuring a clean aesthetic and greater protection.
Versatile installation :
Wall or ceiling mounted, making the bracket suitable for any video surveillance scenario.
Compatibility:
  • BulletCam, TurretCam, DomeCam Mini
  • BulletCam HL, TurretCam HL, DomeCam Mini HL

Technical data sheet

147751.370.WH1

Key features Strap slots
to secure the mount to a pole
Holding screw
to secure the mount to a bracket
Features for easy installation
  • pre-drilled fixing points
  • space for organizing cables inside the mount
  • captive screws
Recommendations The accessory is designed for indoor and outdoor use
MountCam A1 is sold separately from Ajax cameras.
Product

Dimensions:
86 × 123 × 164 mm
3.40" × 4.83" × 6.46"
Weight
480 g
16.93 oz
Operating temperature range
from −40 °C to +60 °C
from −40 °F to 140 °F

Colors White
Complete set MountCam A1
Installation template
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
