The PFA7752 is a pole-mount bracket designed for securely installing video surveillance cameras on poles with a diameter of 50 to 160 mm . Made of sturdy SUS304 stainless steel , it guarantees high resistance and reliability even in harsh environmental conditions. It supports a maximum load of 2 kg and can operate in temperatures from -40 °C to +60 °C and relative humidity below 90%. The compact structure, with a natural stainless steel finish, allows for practical and versatile installation on various types of poles. Dahua

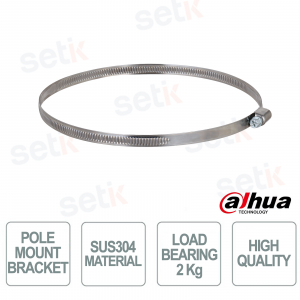

PFA2590 | STAINLESS STEEL POLE BRACKET

The Dahua PFA2590 is a pole mount bracket designed for professional video surveillance camera installations. Made of durable SUS304 stainless steel , it is compatible with poles with diameters between 50 and 160 mm and supports a load of up to 2 kg . The structure is designed to ensure reliability even in harsh environments, with operating temperatures from -40 °C to +60 °C and relative humidity below 90%. The natural stainless steel finish ensures robustness, ease of installation and good resistance over time.
Main specifications:
- Installation: on pole
- Material: SUS304 stainless steel
- Pole diameter: 50–160 mm
- Maximum load: 2 kg
- Operating temperature: -40 °C / +60 °C
- Operating humidity: <90% RH
Further details
Technical data sheet
| PFA2590 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
SUS304 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
Φ50.0 mm × 9.0 mm–Φ160.0 mm × 9.0 mm (Φ1.97" × 0.35"–Φ6.30" × 0.35") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Stainless Steel (in its natural finish) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.03 kg (0.07 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.04 kg (0.09 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Load Bearing |
2.0 kg (4.41 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Pole mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pole Diameter | Φ50mm–160mm (Φ1.97"–6.30") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Applicable Model | Please see "Camera Accessories Selection" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
<90% (RH);<90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
