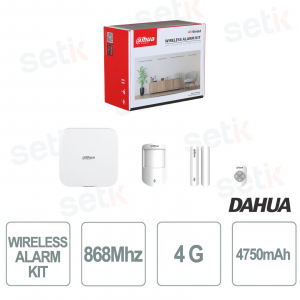

ART-ARC3800H-03-FW2-868 | DAHUA ALARM KIT - WIFI & 4G - 868MHz FREQUENCY


Dahua

The Dahua ART-ARC3800H-03-FW2-868 is a wireless alarm kit designed to ensure advanced protection in homes, villas, apartments and shops. Thanks to compatibility with 150 wireless devices , multi-network support for Ethernet, Wi-Fi and 4G with dual SIM , and video verification functions with IP cameras , it ensures reliability, flexibility and remote control. Equipped with a 4750 mAh rechargeable battery, two-way communication with AES128 encryption and cloud updates, it offers a complete, modern and easily managed solution via app.

Main specifications:

- Support up to 150 wireless devices

- Ethernet, Wi-Fi and 4G connectivity with dual SIM

- Video verification with PIR-Cam and alarm video upload

- Secure communication with AES128 encryption and frequency hopping

- Backup battery up to 12 hours of autonomy

- Remote management with app, SMS, voice call and cloud update

Further details

The Dahua ART-ARC3000H-03-FW2-868 is a complete and advanced wireless alarm kit, designed to provide reliable protection for villas, apartments, offices, and shops. Thanks to its modular and scalable architecture, it can manage up to 150 wireless devices , including PIR sensors, door detectors, remote controls, keypads, sirens, and repeaters, offering comprehensive and customizable coverage.

The system supports Ethernet, Wi-Fi, and 4G connections with dual SIM cards , ensuring stability even in the event of network outages. Integration with IP cameras allows for video alarm verification and instant image transfer from PIR-Cam sensors, while notifications arrive via SMS, voice calls, and the mobile app.
From a security perspective, the kit ensures stable communications thanks to the AES128 frequency-hopping protocol and bidirectional communication between the hub and peripherals. Remote management is simplified with cloud updates , programmable arm/disarm functions, and an offline cache with storage of up to 50 events.
The heart of the system is the central hub, equipped with a 4750 mAh rechargeable battery that ensures up to 12 hours of battery life in the event of a blackout, while the PIR with pet immunity up to 18 kg and resistance to white light up to 6500 lx offers reliability even in complex environments.
This Dahua kit represents the ideal solution for those looking for a modern, secure and easy-to-install alarm system, capable of combining advanced technology, practicality and total remote management .

Technical data sheet

Model ART-ARC3800H-03-FW2-868
Port
Wireless Zone Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)
Network Mode Hub: Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time)
Network Port Hub: 1 RJ-45, 10Mbps/100Mbps Ethernet port
Storage battery Hub: One built-in 4,750 mAh rechargeable lithium battery.
Video & Audio
Video Input Hub: 8-ch IPC, which only supports the upload of alarm videos.
Audio Output Hub: 1 channel
Volume Control Hub: Yes
Voice Broadcast Hub: Telephone and local speaker
Function
Indicator Light Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.
Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal)
Door Detector: 1 green alarm indicator
PIR Detector: 1 green alarm indicator
Button Hub: Includes a reset button, voltage button and AP switch button.
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 power switch
PIR Detector: 1 power switch
SMS Hub: Yes (up to 5 phone numbers)
Phone Call Hub: Yes (up to 5 phone numbers)
Video Linkage Hub: Yes
Offline Cache Hub: Max. 50 entries (ANR)
Arm and Disarm Hub: App, Keypad, remote control, card, scheduled arming and disarming.
Remote Update All: Cloud update
Low Battery Alarm All: Yes
Tamper Hub: Yes
Door Detector: Yes
PIR Detector: Yes
User Management Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users
Logs Hub: Up to 5,000 entries
Measuring Range (Temperature) Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Transmission Protocol Hub: SIA, SoftGuard
Technical
Sensor Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor
Detection Mode PIR Detector: PIR
Sensitivity PIR Detector: 3 levels adjustable
Detection Range PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)
Detection Speed PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)
Movement Distance Door Detector: < 40 mm (1.57")
Pet Immunity Level PIR Detector: ≤ 18 kg (39.68 lb)
White Light Resistance Level PIR Detector: 2000 lx
Two-way Digital Temperature Compensation PIR Detector: Yes, no attenuation of detection distance in high temperature.
Scenario Door Detector: Non-metal doors
Wireless
Carrier Frequency All: 868.0 MHz–868.6 MHz
Transmitter Power (EIRP) All: Limit 25 mW
Communication Mechanism All: Two-way
Communication Distance Hub: Up to 2,000 m (6561.68 ft) in an open space.
Keyfob: Up to 900 m (2952.76 ft) in an open space.
Door Detector: Up to 1,200 m (3937.01 ft) in an open space
PIR Detector: Up to 1,600 m (5249.34 ft) in an open space
Encryption Mode All: AES128
Frequency Hopping All: Yes
General
Language Hub: Up to 7 languages are supported for SMS: English, Spanish (Latin America), French, Italian, Arabic, Turkish, and Danish. It is set as English by default. The alarm voice message feature and local speaker supports English and Italian.
Power Supply Hub: 100-240 VAC, 50/60 HZ
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery
Standby Time Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud.
Keyfob: 3 years
Door Detector: 4 years
PIR Detector: 4 years
Power Consumption Hub: 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby)
Keyfob: 40 mA(Max), 0.5 uA (Standby)
Door Detector: 42 mA(Max), 29 uA (Standby)
PIR Detector: 44 mA(Max), 34 uA (Standby)
Operating Temperature All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity All: 10%–90% (RH)
Product Dimensions Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)
Net Weight Hub: 510 g (1.12 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)
Gross Weight Kit: 1.46 kg (3.22 lb)
Installation Hub: Wall mount; Desktop mount
Door Detector: Bracket mount
PIR Detector: Wall mount
Casing Material All: PC + ABS
Certifications Hub:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-3:2009
EN 50131-6:2017+A1:2021
EN 50131-5-3:2017
EN 50131-10: 2014
EN 50136-2: 2013+A1:2023
Security Grade 2
Environmental Class II
ATS category: SP2/DP2
Keyfob:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-3:2009
Security Grade 2
Environmental Class II
Door Detector:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-2-6:2008
Security Grade 2
Environmental Class II
PIR Detector:
THERE IS
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II
Anti-corrosion Level Basic Protection
Storage Temperature All: –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity All: 10%–90% (RH)
Packaging Dimensions Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × 4.80") (L × W × H)
Wi-Fi
Standard Wi-Fi Hub: IEEE 802.11b/g/n
Wi-Fi Frequency Range Hub: 2400-2483.5 MHz
Wi-Fi Power Transmission Hub:≤20 dBm@2400-2483.5 MHz
Cellular Network
Transmitter Power (EIRP) Hub:
4G: Power class3: 23 dBm±2dB
3G: Power class3: 24 dBm+1/-3dB
2G: Power class0: 30 dBm±3dB(GSM900)
Power class5: 33 dBm±3dB(GSM1800)
Cellular Network Standard Hub: GSM/WCDMA/LTE
Frequency Range Hub:
EU:
4G:FDD-LTE: B1/B3/B7/B8/B20/B28A; TDD-LTE: B38/B40/B41;
3G:WCDMA: B1/B8;
2G:GSM: 1,800/900MHz;
