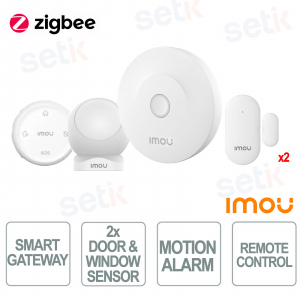

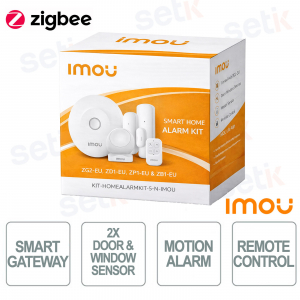

KIT-HOMEALARMKIT-5-N-IMOU :
The kit includes:
♦ 1x ZG2-EU-IMOU control unit
♦ 2x ZD1-EU-IMOU door and window sensors
♦ 1x ZP1-EU-IMOU motion sensor
♦ 1x ZB1-EU-IMOU Remote Control

KIT-HOMEALARMKIT-5-N-IMOU | 1x CONTROL UNIT - 2x DOOR/WINDOW SENSORS - 1x MOTION SENSOR - 1x REMOTE CONTROL
WHAT DOES THE KIT INCLUDE?
♦ 2x ZD1-EU-IMOU door and window sensors
♦ 1x ZP1-EU-IMOU motion sensor
♦ 1x ZB1-EU-IMOU Remote Control
![]() |
Zigbee protocol alarm control panelZG2-EU-IMOU The Smart Alarm Gateway is the heart of your security system. Thanks to its compatibility with up to 32 IMOU Zigbee sensors, you can easily add, manage, and control all your devices. It supports both Wi-Fi and wired connections, offering total flexibility. With just one click, you can activate Home, Away , or Disarm modes for quick and intuitive control. Furthermore, the integrated siren ensures an immediate response in case of emergency. Discover how to improve your home security with the smart alarm gateway. Zigbee wireless protocol. Transmission frequency: 2.4 GHz. Imou |
![]() |
Door and window sensorZD1-EU-IMOU The door/window sensor is a smart device that monitors the opening and closing of doors, windows, cabinet doors, and drawers. When the magnet separates from the sensor, it sends wireless signals to the gateway, triggering an immediate alarm. Thanks to this feature, the sensor can be integrated into home automation scenarios, offering advanced security and intelligent interactions between connected devices. Zigbee wireless protocol. 2.4 GHz transmission frequency, communication range up to 200 m. Imou |
![]() |
Motion sensorZP1-EU-IMOU The infrared motion sensor detects the presence of a human body by capturing the infrared radiation emitted, even in low-light or total darkness. Thanks to its advanced technology, it generates low data traffic, ensuring reduced energy consumption and a long standby time. Ideal for home automation and home security solutions. Zigbee wireless protocol. 2.4 GHz transmission frequency, communication up to 200 m. Imou |
![]() |
Remote control
ZB1-EU-IMOU - The alarm system remote control features 4 programmable buttons : Home Mode, Away Mode, Disarm Mode, and SOS Alarm , designed for quick and intuitive security management . The first three buttons allow you to arm and disarm the alarm based on the gateway's modes, while the SOS button allows for immediate alarm activation with real-time notifications sent to the app . The SOS button supports single-click, double-click, and long-press for customizable smart scenarios . The device uses the Zigbee protocol for a stable, secure, and low-power connection with the gateway. Imou |
Technical data sheet
| ZGA1-EU-IMOU | |
| General | |
| Appearance size | Φ86x29.6mm |
| Working voltage | DC 12V |
| Working current | ≤150mA |
| Working current | ≤150mA |
| Operating temperature | -14℉to+131℉ |
| Installation method | wall/ceiling |
| Network | |
| Wireless protocol | Zigbee |
| Transmit frequency | 2.4GHz |
| Communication distance | 200m |
| Detector & Alarm | |
| Receiving sensitivity | -96dBm |
| Alarm concentration | 8%LEL (Gas) |
| Buzzer sound pressure | ≥70dB |
| Gas detection | natural gas (CH4) |
| Alarm concentration error | ± 3%LEL |
| ZD1-EU-IMOU | |
| General | |
| Transmit power | ≤10dBm |
| Working voltage | DC 3V |
| Low pressure alarm | 2.6V |
| Standby current | ≤10mA |
| Installation method | Wall-mounted |
| Operating temperature | -14℉to+131℉ |
| Working current | ≤30mA |
| Appearance size | 52.6x39.8×13.8 mm |
| Battery life | >1 year (20 times/day) |
| Network | |
| Wireless protocol | Zigbee |
| Transmit frequency | 2.4GHz |
| ZP1-EU-IMOU | |
| General | |
| Working voltage | DC 3V |
| Standby current | ≤15mA |
| Installation method | Wall-mounted |
| Installation height | 2.2m |
| Low pressure alarm | 2.7V |
| Operating temperature | -14℉to+131℉ |
| Working current | ≤25mA |
| Appearance size | Φ48.4x53.4 mm |
| Network | |
| Wireless protocol | Zigbee |
| Transmit power | ≤15dBm |
| Transmit frequency | 2.4GHz |
| Communication distance | 200m |
| Receiving sensitivity | -96dBm |
| Motion Sensor | |
| Detection range | 8m |
| Sensing angle | 90° |
| Battery | |
| Battery model | CR123V |
| Battery life | >1 year(20 times/day) |
| ZB1-EU-IMOU | |
| General | |
| Working Voltage | DC3V (1xCR2450) |
| Networking Mode | Zigbee |
| Working Temperature | -10℃~+50℃ |
| Network Distance | ≤35m (open area) |
| Working Humidity | ≤95% RH (no condensation) |
| Battery Lifespan | 2 years(The lifespan may shorten under actual working environment |
| Size | Ф62.05xH13.9mm |
Further details
| Model | Notes | Zigbee 3.0 support | Diet | WI-FI | Alexa & Google Support | Requires Gateway |
| KIT-Alarm(ZG2)-EU-5-IMOU | ZG2 Complete Kit | ✔ | Cable | ✔ | ❌ | ❌ |
| ZG1-EU-IMOU | Alarm Gateway | ✔ | Cable | ✔ | ❌ | ❌ |
| ZG2-EU-IMOU | Alarm Gateway | ✔ | Cable | ✔ | ❌ | ❌ |
| ZP1-EU-IMOU | Motion Sensor | ✔ | Drums | ❌ | ❌ | ✔ |
| ZD1-EU-IMOU | Door/window sensor | ✔ | Drums | ❌ | ❌ | ✔ |
| ZR1-EU-IMOU | Alarm Siren | ✔ | Drums | ❌ | ❌ | ✔ |
| ZE1-EU-IMOU | Emergency Button | ✔ | Drums | ❌ | ❌ | ✔ |
| ZTM1-EU-IMOU | Temperature Sensor | ✔ | Drums | ❌ | ❌ | ❌ |
| ZL1-EU-IMOU | Flood Sensor | ✔ | Drums | ❌ | ❌ | ✔ |
| ZGA1-EU-IMOU | GAS sensor | ✔ | Drums | ❌ | ❌ | ✔ |
| KIT-TRV1-EU-2-IMOU | Gateway Kit + 1 Valve Thermostatic |
✔ | Cable | ✔ | ✔ | ❌ |
| IOT-TRV1-EU-IMOU | Thermostatic Valve | ✔ | Drums | ❌ | ✔ | ✔ |
