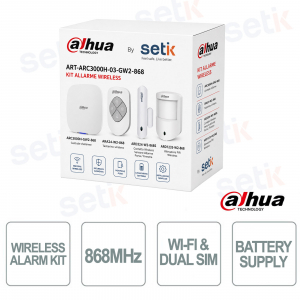

Dahua ART-ARC3000H-03-GW2-868 Wireless Alarm Kit with PIR, Magnetic Contact and 868 MHz Remote Control
ART-ARC3000H-03-GW2-868 - The wireless intrusion kit is a complete solution for the protection of homes, offices and commercial activities, consisting of the ARC3000H-GW2 alarm control panel , wireless PIR detector , door/window magnetic contact and wireless remote control . Thanks to AES128 encrypted two-way communication , frequency hopping technology, Ethernet, Wi-Fi and cellular network connectivity with dual SIM , it guarantees high reliability and remote management via the DMSS App. The PIR sensor offers immunity to pets up to 18 kg , while the magnetic contact integrates opening, shock, inclination and ambient temperature detection . The kit ensures real-time notifications, anti-sabotage protection and complete control of the system from your smartphone. Dahua
DOWNLOAD THE DAHUA ALARM PRICE LIST TO DISCOVER ALL THE ACCESSORIES! BROCHURE
FREE DAHUA STICKER SIGN!
ART-ARC3000H-03-GW2-868 | DAHUA ALARM KIT - WIFI & DUAL-SIM - FREQUENCY 868MHz

DOWNLOAD THE DAHUA ALARM PRICE LIST TO DISCOVER ALL THE ACCESSORIES! BROCHURE
FREE DAHUA STICKER SIGN!
The Dahua ART-ARC3000H-03-GW2-868 wireless alarm kit is a complete solution for the security of homes, shops and offices, consisting of a HUB control unit , PIR sensor , door/window magnetic contact and wireless remote control . Thanks to Ethernet, Wi-Fi and cellular network connectivity with Dual SIM , it guarantees reliable communications via AES128 two-way technology and frequency hopping . The PIR detector offers coverage up to 12 m with immunity to pets up to 18 kg , while the door sensor detects opening, temperature and tampering attempts . Remote management via App with real-time notifications, calls, SMS and cloud updates ensures advanced protection and always under control.
Main specifications:
- Complete kit: HUB, PIR, magnetic contact and remote control
- Connectivity: Ethernet, Wi-Fi and Dual SIM cellular network
- Security: AES128 encryption and two-way communication
- PIR detector: 12m range with animal immunity up to 18kg
- Magnetic contact: opening and temperature detection
- Remote management: DMSS app, push notifications, SMS and calls
- Expandability: Up to 150 wireless devices supported
-
Further details
- Alarm center
- Two-way 868 MHz wireless communication
- Support up to 150 wireless devices
- Ethernet, Wi-Fi, 2G/4G connectivity for remote access and real-time notifications
- Compatible with mobile app for smart management from smartphones
- Up to 4 independent areas and 99 configurable users
- Tamper protection and watchdog function for high reliability
- Compact and modern design, suitable for any environment
- Wireless keypad
- Two-way wireless communication protocol: 868MHz frequency
- Operating status indicator (green for normal, red for abnormal)
- Coverage up to 900 meters in open space
- 4 buttons (Home, Away, Disarm, SOS)
- SOS emergency alarm (via dedicated button)
- 868MHz Wireless Door/Window Alarm Sensor Contact
- Detects opening, shocks and tilts up to 25°
- Two-way communication with AES128 encryption
- Wireless range up to 1,200 m in open field
- Overheating alarm and temperature detection
- Long-lasting battery up to 3 years
- Easy setup via App
- Wireless PIR Detector
- Two-way wireless communication frequency 868Mhz
- Distance up to 1,600m in open field without obstacles
- Pet Immune (immune to pet detection)
- Frequency Hopping
- Powered by CR123A battery
- Alarm indicator light (green)
Technical data sheet
| Model | ART-ARC3000H-03-GW2-868 |
| Input and Output | |
| Wireless Protection Zone | Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Port | |
| Buzzer | Hub: Built-in |
| Button | Hub: 1 × reset, 1 × power, 1 × AP Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 × power button PIR Detector: 1 × power button |
| Indicator Light | Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) Keyfob: 1 × two-color status indicator (green: normal, red: abnormal) Door Detector: 1 × green alarm indicator PIR Detector: 1 × green alarm indicator |
| Storage battery | Hub: Built-in lithium battery |
| Network Mode | Hub: Ethernet, Wi-Fi and Cellular network (Supports installation of dual SIM cards. Only one card can be enabled at a time) |
| Network Port | Hub: 1 RJ-45, 10Mbps/100Mbps Ethernet port |
| Function | |
| Network Protocol | Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Offline Cache | Hub: Max. 50 entries (ANR) |
| Power Failure Protection for Configured Parameters | Hub: Yes |
| Remote Update | All: Cloud update |
| Video Linkage | Hub: Yes |
| SMS | Hub: Yes (up to 5 phone numbers) |
| Phone Call | Hub: Yes (up to 5 phone numbers) |
| Low Battery Alarm | All: Yes |
| Tamper | Hub: Yes Door Detector: Yes PIR Detector: Yes |
| User Management | Hub: Share function for App users |
| Search | Hub: Searching push messages, device status, and program version. Detecting signal strength. Keyfob: Signal strength detection Door Detector: Signal strength detection PIR Detector: Signal strength detection |
| Arm and Disarm | Hub: App; keyfob; schedule |
| Wireless | |
| Carrier Frequency | All: 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | All: Limit 25 mW |
| Communication Distance | Hub: Up to 2,000 m (6561.68 ft) in an open space. Keyfob: Up to 900 m (2952.76 ft) in an open space. Door Detector: Up to 1,200 m (3937.01 ft) in an open space PIR Detector: Up to 1,600 m (5249.34 ft) in an open space |
| Communication Mechanism | All: Two-way |
| Encryption Mode | All: AES128 |
| Frequency Hopping | All: Yes |
| Wi-Fi | |
| Standard Wi-Fi | IEEE 802.11b/g/n |
| Wi-Fi Frequency Range | 2400-2483.5 MHz |
| Wi-Fi Power Transmission | ≤20 [email protected] MHz |
| Cellular Network | |
| Cellular Network Standard | GSM/WCDMA/LTE |
| Frequency Range | GSM: 1,800/900 MHz; |
| Frequency Range (EIRP) | Power class0: 30 dBm±3 dB (GSM900) Power class5: 33 dBm±3 dB (GSM1800) |
| Peripherals | |
| External Zone | Door Detector: 1-channel dry contact input |
| Temperature | |
| Measuring Range (Temperature) | Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
| Measuring Precision (Temperature) | Door Detector: ± 1 °C (± 33.8 °F) PIR Detector: ±1°C (±33.8°F) |
| Resolution (Temperature) | Door Detector: 1 °C (33.8 °F) PIR Detector: 1 °C (33.8 °F) |
| Specification | |
| Sensor | Door Detector: Reed switch PIR Detector: Dual elements low-noise PIR sensor |
| Test Mode | Door Detector: Yes PIR Detector: Yes |
| Scenario | Door Detector: Non-metal doors |
| Movement Distance | Door Detector: < 40 mm (1.57") |
| Detection Mode | PIR Detector: PIR |
| Detection Range | PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft) |
| Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
| White Light Resistance Level | PIR Detector: 6500 lx |
| Two-way Digital Temperature Compensation | PIR Detector: Yes, no attenuation of detection distance in high temperature |
| Sensitivity | PIR Detector: 3 levels adjustable |
| General | |
| Power Supply | Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) Keyfob: CR2032 battery Door Detector: CR123A battery PIR Detector: CR123A battery |
| Battery Life | Hub: Storage battery standby for 12 Hours Keyfob: 5 years Door Detector: 4 years PIR Detector: 5 years |
| Power Consumption | Keyfob: Max. 85 mW Door Detector: Max. 70 mW PIR Detector: Max. 75 mW |
| Operating Temperature | Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor) Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | All: 10%–90% (RH) |
| Product Dimensions | Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42"" × 6.42"" × 1.26"") (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
| Packaging Dimensions | Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62"" × 7.36"" × 3.58"") (L × W × H) Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31"" × 3.88"" × 2.24"") (L × W × H) |
| Installation | Hub: Wall mount; Desktop Door Detector: Bracket mount PIR Detector: Wall mount |
| Net Weight | Hub: 0.38 Kg (0.84 lb) Keyfob: 20 g (0.04 lb) Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb) |
| Gross Weight | Hub: 0.8 Kg (1.76 lb) Keyfob: 65 g (0.14 lb) Door Detector: 115 g (0.25 lb) PIR Detector: 170 g (0.37 lb) |
| Casing Material | All: PC + ABS |
| Certifications | All: CE |
