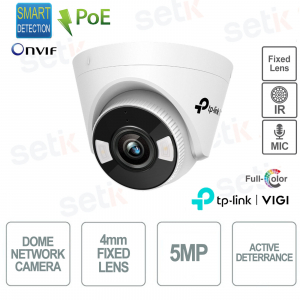

VIGI C450(4mm) TP-Link VIGI 5MP Dome Camera C450 IP ONVIF PoE with 5Megapixel Full Color Night Vision, 4mm fixed lens, H.265+, Smart IR with white light up to 30M, with acoustic and light alarm, People and vehicle classification, Video Analysis, Smart Video Enhancement, Two-way audio (Microphone and Speaker), MicroSD slot (not included), remote monitoring, ICR, 3D DNR, DWDR, reset button, diameter 123 x 84 mm
3 Year Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

VIGI C450(4mm) 5MP TP-LINK VIGI DOME CAMERA WITH NIGHT VISION | FULL-COLOR | AUDIO

TP-Link VIGI 5MP Dome IP ONVIF camera - VIGI C450(4mm)
5 Megapixel resolution - 4mm fixed lens - H.265+ compression - 1/2.7" Progressive Scan CMOS sensor
Full-Color Night Vision and White Light IR : Up to 30 meters - SmartVid : Smart IR, WDR, 3D DNR, BLC
Two-Way Audio : Microphone + Speaker - Active Deterrence : Audible and visual alarms
Video Analysis and Human/Vehicle Classification
MicroSD slot (not included) - Remote monitoring - 3-year warranty
PRODUCT DETAILS
.jpg)
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- Sensor: 1/2.7" Progressive Scan CMOS
- Illumination: Color: 0.005 Lux; 0 Lux with IR/white light
- Frame Rate: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720
- Power supply: PoE/12V DC
- Lens: 4mm fixed lens
- Audio: Built-in microphone and speaker
- Memory: Micro-SD slot
|| Main Features:
- Full-Color and IR Night Vision: Up to 30 meters away for clear images even in the dark.
- Custom Patrol: Configure custom monitoring routes.
- Active Defense: Built-in audible and visual alarms to respond to suspicious events.
- Two-Way Audio: Real-time communication via microphone and speaker.
- On-Board Storage: Supports micro-SD cards for local storage.
- Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
- SmartVid: Advanced technologies such as Smart IR, WDR, 3D DNR and BLC improve video quality.
- ONVIF Compatibility: Interoperability with other security devices.
- Remote Monitoring: Access via the VIGI app, web interface and VIGI Security Manager.
- 3 Year Warranty
TECHNICAL DATA SHEET
ROOM | |
---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Min. Illumination | 0.005 Lux; 0 Lux with IR/white light |
Day & Night | IR Cut Filter |
Day/Night Switch | Day/Night/Auto/Schedule-Switch |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 4 mm |
Openings | F1.6 |
FOV | Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° |
Lens Mount | M12 |
ANGLE ADDJUSTMENT (MANUAL) | |
Range | Pan: 0° to 348° Tilt: 0° to 120° |
ILLUMINATOR | |
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 2880 X 1620 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576,640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Settings | Yes |
AUDIO | |
Audio Communication | Yes |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Network Storage | NAS (NFS, SMB/CIFS) |
API | Open Network Video Interface (Profile S) |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
Cloud | Yes |
ONVIF | Yes |
INTERFACE | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
Built-in Speaker | Yes |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Audio | N/A |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
Alarm and Event Management | |
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method | N/A |
Output Notification | Push Message |
DEEP LEARNING FUNCTION | |
Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
Face Capture | N/A |
Face Comparison | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Power Consumption | Maximum: 9W Typical (Day Mode): 1.76W Typical (Night Mode with IR LED): 3.5W Typical (Night Mode with White LED): 3.8W |
Material | Plastic |
Product Dimensions (L x W x H) | Φ123 x 84 mm |
Package Contents | VIGI Network Camera Quick Start Guide Mounting Accessories |
Net Weight | 0.24 kg |
Gross Weight | 0.4 kg |
Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |

![]() |
|
Ultra high definition full-color. 5MP Super-High Definition The VIGI Full-Color camera supports 5MP video resolution and is able to capture detailed, color videos even in total darkness, thanks to its wide-aperture lens, high-sensitivity sensor and built-in supplementary spotlights. |
|
VIGI professional technologies - including Smart IR, WDR, 3D DNR and Night Vision - help further improve video quality. |
|
The AI chips built into the VIGI camera support advanced algorithms that can distinguish humans and vehicles from other moving objects, allowing for highly customizable monitoring and alarm triggering options.
Classification of people and vehicles Vehicle Classification On |
|
By setting detection rules in advance, VIGI AI cameras can accurately record various types of abnormal events. This significantly reduces false alarms, meeting specific monitoring needs in different scenarios. |
|
Quickly find vehicles and people of interest in your feed by searching for specific attributes.
|
|
Active defense In case of detection of abnormal events, the integrated acoustic and luminous alarm can be triggered. |
|
Two-way audio Voice intercom support allows you to communicate with those in the monitored area while viewing live footage remotely. |
|
Corridor mode Automatically rotates the lens 90° clockwise. This changes the image aspect ratio from 16:9 to 9:16, helping you monitor long, narrow areas and providing a more complete viewing experience. |
|
Compress file size without sacrificing video quality, easing network traffic and saving disk space. |
|
Flexible storage HDD storage (via NVR) and onboard storage available thanks to the SD Card slot (up to 512 GB) integrated into the camera. |
|
3 year warranty The following product is covered by a 3 year warranty |
