VIGI C420I(4mm) TP-Link VIGI 2MP C420I IP ONVIF PoE Dome Camera with 4Megapixel Night Vision, 4mm Fixed Lens, H.265+, Smart IR with White Light up to 30M. People and Vehicle Classification, Video Analytics, Smart Video Enhancement, Remote Monitoring, 3D DNR, DWDR, 123 × 123 × 83 mm
3 Year Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

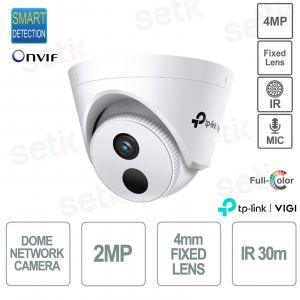

VIGI C420I(4mm) 2MP TP LINK VIGI DOME CAMERA WITH NIGHT VISION

TP-Link VIGI 2MP Dome IP ONVIF camera - VIGI C420I(4mm)
2 Megapixel resolution - 4mm fixed lens - H.265+ compression - 1/3" Progressive Scan CMOS sensor
Smart IR Night Vision up to 30 meters - DWDR, 3D DNR, BLC
Video Analysis and Human/Vehicle Classification
Remote Monitoring - 3 Year Warranty
PRODUCT DETAILS

|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- Sensor: 1/3" Progressive Scan CMOS
- Illumination: Color: 0.1 Lux; 0 Lux with IR
- Frame Rate: 1920x1080, 1280x960, 1280x720
- Power supply: PoE/12V DC
- Lens: 4mm fixed lens
|| Main Features:
- Night Vision and IR: Up to 30 meters away for clear images even in the dark.
- Custom Patrol: Configure custom monitoring routes.
- Active Defense: Built-in audible and visual alarms to respond to suspicious events.
- On-Board Storage: Supports micro-SD cards for local storage.
- Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
- SmartVid: Advanced technologies such as Smart IR, DWDR, 3D DNR and BLC improve video quality.
- ONVIF Compatibility: Interoperability with other security devices.
- Remote Monitoring: Access via the VIGI app, web interface and VIGI Security Manager.
- 3 Year Warranty
TECHNICAL DATA SHEET
ROOM | |
---|---|
Image Sensor | 1/3” Progressive Scan CMOS |
Min. Illumination | Color: 0.1 Lux; 0 Lux with IR |
Day & Night | IR Cut Filter |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
LENS | |
Focal Length | 4 mm |
Openings | F2.0 |
Focus | Fixed |
FOV | 74.6°/41.3°/88.1° (H/V/D) |
Lens Mount | M12 |
IR | |
IR Range | 30m |
Wavelength | 850nm |
COMPRESSION STANDARD | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | 64 Kbps to 512 Kbps |
SMART FEATURE-SET | |
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception (illegal login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
IMAGE | |
Max. Resolution | 2MP (1920 × 1080) |
Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 |
Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°) |
Day/Night Switch | Day/Night/Auto/Schedule |
NETWORK | |
Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
General Function | Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening |
API | ONVIF |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
INTERFACE | |
Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Video Output | No |
Reset Button | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Power Supply | PoE (802.3af/at, class 0) |
Power Consumption | PoE: class 0 |
Material | Plastic |
Product Dimensions (L x W x H) | 123 × 123 × 83 mm |
Certifications | CE/BSMI/VCCI/ONVIF |

![]() |
|
Capture every detail. The VIGI C420I camera supports 2MP video resolution and can capture clear, detailed videos. It's ideal for monitoring and ensuring your spaces are safe. |
|
Classification of people and vehicles The AI chips built into the VIGI camera support advanced algorithms that can distinguish humans and vehicles from other moving objects, allowing for highly customizable monitoring and alarm triggering options. Classification of people and vehicles Vehicle Classification On |
|
SmartVid - Smart Video Enhancement VIGI professional technologies - including Smart IR, WDR, 3D DNR and Night Vision - help further improve video quality. |
|
Corridor mode Automatically rotates the lens 90° clockwise. This changes the image aspect ratio from 16:9 to 9:16, helping you monitor long, narrow areas and providing a more complete viewing experience. |
|
Compress file size without sacrificing video quality, easing network traffic and saving disk space. |
|
3 year warranty The following product is covered by a 3 year warranty |
