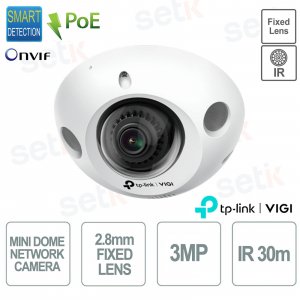

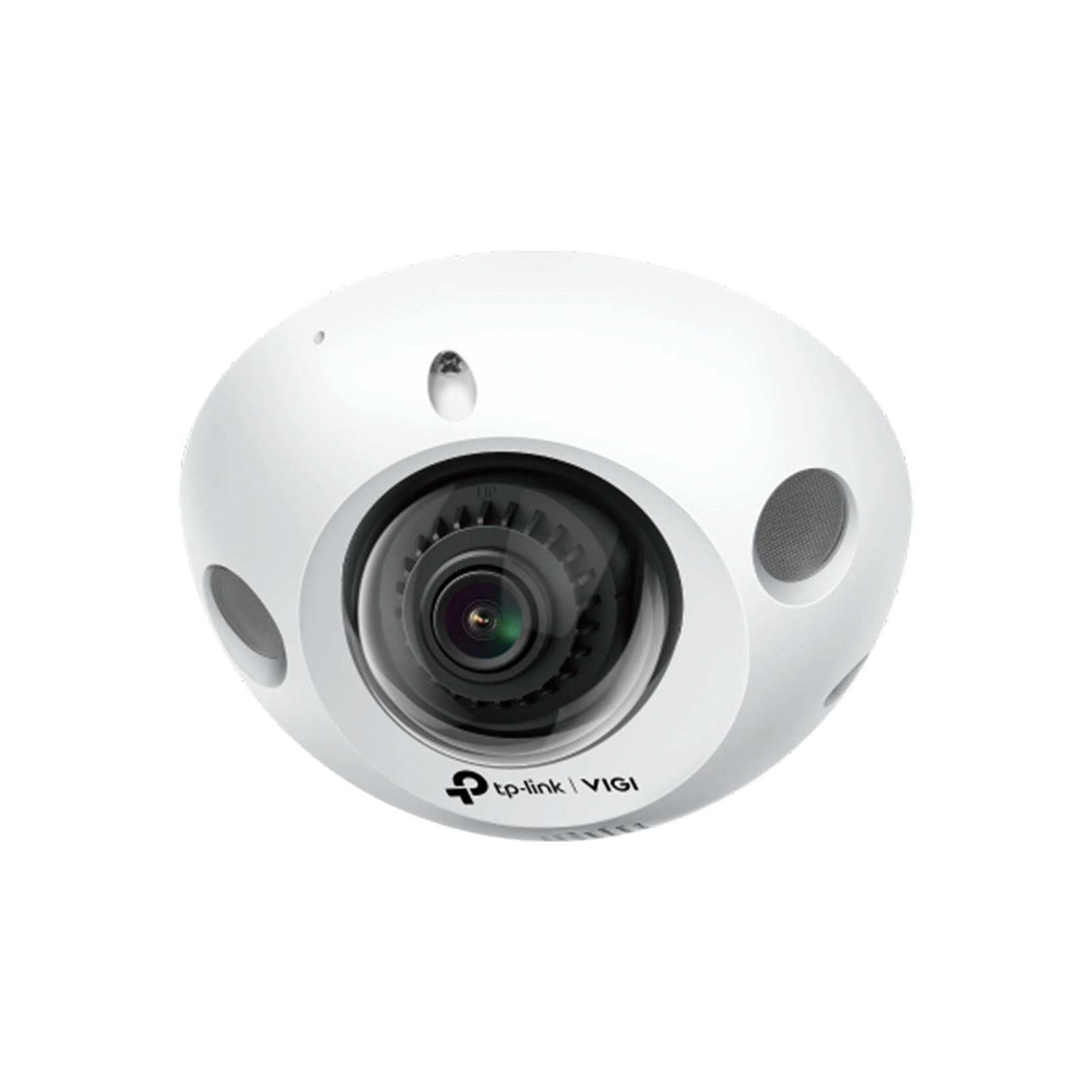

VIGI C230I Mini (2.8mm) TP-Link VIGI 3MP C230I mini IP ONVIF PoE Dome Camera with 3Megapixel Night Vision, 3mm fixed lens, H.265+, Smart IR with white light up to 30M. People and vehicle classification, Video Analytics, Smart Detection, Smart Video Enhancement, remote monitoring, ICR, 3D DNR, DWDR, reset button. IK08 protection. Dimensions: 114 × 114 × 58 mm
3 Year Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

VIGI C230I Mini(2.8mm) 3MP TP LINK VIGI DOME CAMERA WITH NIGHT VISION - ACTIVE DETERRENCE

TP-Link VIGI 3MP Dome mini IP ONVIF camera - VIGI C230I Mini(2.8mm)
3 Megapixel resolution - 2.8mm fixed lens - H.265+ compression - 1/2.8" Progressive Scan CMOS sensor
Night Vision and White Light IR : Up to 30 meters - SmartVid : Smart IR, WDR, 3D DNR, BLC
Video Analysis and Human/Vehicle Classification - Smart Detection
Remote Monitoring - 3 Year Warranty
PRODUCT DETAILS
.jpg)
|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- Sensor: 1/2.8" Progressive Scan CMOS
- Illumination: Color: 0.1 Lux; 0 Lux with IR
- Frame Rate: 2304x1296, 2048x1280, 1920x1080, 1280x720
- Power supply: 12V DC/PoE
- Lens: 2mm fixed lens
|| Main Features:
- Full-Color and IR Night Vision: Up to 30 meters away for clear images even in the dark.
- Custom Patrol: Configure custom monitoring routes.
- Active Defense: Built-in audible and visual alarms to respond to suspicious events.
- On-Board Storage: Supports micro-SD cards for local storage.
- Intelligent Detection: Includes human-classified motion detection, camera tampering, line crossing and area intrusion.
- SmartVid: Advanced technologies such as Smart IR, WDR, 3D DNR and BLC improve video quality.
- ONVIF Compatibility: Interoperability with other security devices.
- Remote Monitoring: Access via the VIGI app, web interface and VIGI Security Manager.
- 3 Year Warranty
TECHNICAL DATA SHEET
ROOM | |
---|---|
Image Sensor | 1/2.8” Progressive Scan CMOS |
Min. Illumination | Color: 0.1 Lux; 0 Lux with IR |
Day & Night | IR Cut Filter |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
LENS | |
Focal Length | 2.8 mm |
Openings | F1.6 |
Focus | Fixed |
FOV | Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° |
Lens Mount | M12 |
IR | |
IR Range | Range: 30m |
Wavelength | 850nm |
COMPRESSION STANDARD | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | 64 Kbps to 4 Mbps |
SMART FEATURE-SET | |
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection |
Basic Event | Motion Detection, Camera Tampering, Exception (illegal login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
IMAGE | |
Max. Resolution | 3MP (2304 × 1296) |
Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 |
Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, rotation(90°/270°) |
Day/Night Switch | Day/Night/Auto/Schedule |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
General Function | Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening |
API | ONVIF |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
INTERFACE | |
Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Video Output | No |
Built-In Microphone | Yes |
Built-In Speaker | Yes |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256GB |
Reset Button | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Power Consumption | 12V DC: Max 7.5W PoE: Class 0 |
Audio Communication | Two-Way Audio |
Vandal Resistant | IK08 |
Material | Plastic |
Product Dimensions (L x W x H) | 114 × 114 × 58 mm |
Certifications | CE/VCCI/BSMI/KC/ONVIF |

![]() |
|
Capture every detail The VIGI C230I Mini camera supports 3MP video resolution and can capture clear, detailed videos. It's ideal for monitoring and ensuring your spaces are safe. |
|
VIGI professional technologies - including Smart IR, WDR, 3D DNR and Night Vision - help further improve video quality. |
|
The AI chips built into the VIGI camera support advanced algorithms that can distinguish humans and vehicles from other moving objects, allowing for highly customizable monitoring and alarm triggering options.
Classification of people and vehicles Vehicle Classification On |
|
Compact and discreet design Thanks to a small, compact case and 2.8mm ultra-wide-angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, warehouses, shops and anywhere where space is limited and a wide view is required. |
|
Keep track of every event The VIGI camera intelligently detects activity, instantly notifies you of detections, and allows you to respond automatically with intelligent detection and two-way audio. |
|
IK08 impact protection Thanks to extremely robust hardware, capable of resisting vandalism, the VIGI camera is specifically designed to ensure continuous monitoring in various types of application scenarios. |
|
Compress file size without sacrificing video quality, easing network traffic and saving disk space. |
|
Flexible storage HDD storage (via NVR) and onboard storage available thanks to the SD Card slot (up to 512 GB) integrated into the camera. |
|
3 year warranty The following product is covered by a 3 year warranty |
