TIOC IP POE ONVIF PTZ Camera - 4MP - 10x 4-40mm - Artificial Intelligence - For Outdoor

TIOC IP POE ONVIF PTZ Camera - 4MP - 10x 4-40mm - Artificial Intelligence - For Outdoor
BEST PRICE -58% New

SD3E410DB-GNY-A-PV1 - Dahua PTZ IP Poe ONVIF TIOC Camera with Artificial Intelligence (Perimeter Protection, Face Detection, Auto Tracking and SMD) - 4MP - 4-40mm 10x zoom lens, 1/2.8" 4MP CMOS sensor - Active deterrence - IR 70m - H.265+ Smart Codec - Triple Stream, WDR 120dB , Day/Night, BLC, HLC, 2D/3D-NR, AWB, AGC, MicroSD slot up to 512GB (not included) - RJ-45 - Built-in speaker and microphone - Two-way audio - Alarm - TVS200V lightning protection - IP66 outdoor protection - Supports PoE+.



Reference: SD3E410DB-GNY-A-PV1

Brand: Dahua

EAN: 6939554925672

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PTZ IP POE ONVIF TIOC CAMERA - 4MP - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SD3E410DB-GNY-A-PV1

Made by Setik
Dahua ONVIF® IP external camera - SD3E410DB-GNY-A-PV1
4Megapixel Resolution - 4-40mm Varifocal Lens - H.265+ Compression - 1/2.8" 4MP CMOS
Artificial Intelligence: Perimeter Protection, Face Detection, SMD Plus, Auto Tracking - Active Deterrence - IR 70m - Day/Night (ICR) - DWDR - Day/Night, BLC, HLC, 2D/3D DR, 512GB MicroSD Slot (not included) - Built-in Microphone and Speaker - Two-way Audio - 1in/1out Alarm - 10/100M RJ45 Network Interface - IP66 Outdoor Protection - TVS2000V Lightning Protection - PoE+ Support - Power Supply 12 VDC, 2 A ± 10%.

Product details

SD3E410DB-GNY-A-PV1
  • IP Camera outdoor ONVIF® PTZ Dahua - SD3E410DB-GNY-A-PV1
  • Resolution 4Megapixel 2560x1440p progressive scan
  • Varifocal lens 4-40mm 10x Optical Zoom
  • 1/2.8" CMOS sensor with 4MP
  • IR Technology: Night vision up to 70m
  • Warm light illuminator 30m
  • Active deterrence with sound and light signals
  • 24/7 Vision
  • Video compression up to H.265+
  • Triple Video Stream
  • Artificial Intelligence Functions (Perimeter Protection, Face Detection, SMD Plus, Auto Tracking)
  • Day/Night(ICR)
  • Digital WDR
  • BLC, HLC, AWB, 2D/3D NR, Motion Detection
  • Remote Viewing with Dahua DMSS
  • IP66 Protection (Rain/Dust) - Suitable for indoor/outdoor environments
  • TVS 2000V lightning protection
  • MicroSD memory card slot (up to 512GB capacity - not included)
  • Speaker
  • Built-in microphone
  • Two-way audio
  • 1 alarm input and 1 alarm output
  • Dimensions: 142.6mm × 151.8mm × 236.2mm
  • Item Weight: 1.58kg
  • Operating temperature: -30°C to +60°C
  • Humidity: up to 95%

Technical data sheet

SD3E410DB-GNY-A-PV1

Room

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

70 m (229.66 ft) (IR)
30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This product complies with Onvif standard

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

Resolution:

4 Megapixel resolution 2560x1440p, progressive scan.

Smart H.265+ Video Encoding

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

IR illuminator up to 30m

This camera is equipped with double IR LED illuminator with a maximum range of approximately 70m.

Varifocal optics

Optics:

This camera features a 4-40mm varifocal lens.

10x optical zoom

Infrared Illuminator Supports Intelligent 3D Positioning with DH-SD protocol. This system allows not only movement on the camera axis but also positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:

Pan/Tilt Range
Pan: 0° to 355° Tilt: –15° to +90°

Manual Speed Control
Pan: 0.1°/s–27.31°/s Tilt: 0.1°/s–19.30°/s

Preset Speed
Pan: 24.32°/s; Tilt: 18.75°/s

Presets
300

Power off Memory
Yes

Idle Motion
Presets



Artificial intelligence:

This camera features VIDEO ANALYSIS (IVS) functions with ARTIFICIAL INTELLIGENCE:

- Perimeter protection
- Face detection
- SMD Plus



This camera features AUTO TRACKING function.
The system will detect objects moving in a specific video surveillance area and automatically enlarge it for a better view of the tracked object.

ULTRA_WDR_TLC.jpg ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night

Day/Night:

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically

ICR

IR Cut Filter:

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions by filtering the typical infrared frequencies. This improves image quality. In nighttime conditions the filter is removed as it is necessary to capture the typical IR frequencies.

BLC

BLC (Black Light Compensation):

BLC is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...)

Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)
Interfaccia audio This camera features: Two-way audio.
This DVR features audio inputs/outputs This camera integrates Microphone and Speaker
Full HD 1 alarm input and 1 alarm output
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 512GB - not included in the package.

12VDC_Power

12 VDC power supply not included in the package

Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure

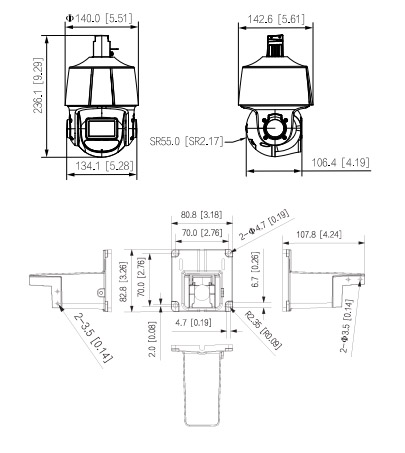

SD3E410DB-GNY-A-PV1 dimensions
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
