TPC-BF1241-TB10F12-DW-S8 - Thermal video surveillance camera - IP PoE ONVIF - Eureka - Smoke, fire detection and alarm - Dual lens: thermal (10mm) / visible (12mm) - 4MP resolution for visible lens / 256×192 for thermal lens - Temperature measurement range from –20 °C to +550 °C - Dual sensor: 1x thermal + 1x 1/2.7" CMOS - 16x digital zoom - Video compression up to H.265 - Motion Detection - ROI - DWDR - AWB - HLC - BLC - AGC - 2D/3DNR - Day/night (ICR) - Video Analysis (Intrusion, line crossing) - Active deterrence - 2in/2out alarm - 1in/1out audio - MicroSD slot up to 256GB (not included) included) - RS485 - Ethernet RJ-45 LAN - IP67 protection. S8 VERSION - Dahua



Reference: TPC-BF1241-TB10F12-DW-S8

Brand: Dahua

EAN: 6923172568410

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Technical Sheet Further Details Download

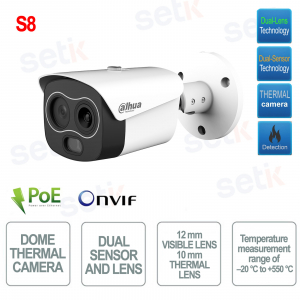

IP POE ONVIF® - DAHUA EUREKA THERMAL VIDEO SURVEILLANCE CAMERA - 10MM THERMAL LENS - 12MM VISIBLE - SMOKE AND FIRE DETECTION - IP67 - TPC-BF1241-TB10F12-DW-S8

Made by Setik

ONVIF® PoE IP Professional Thermal Surveillance Camera - Dahua - TPC-BF1241-TB10F12-DW-S8
Dual-Lens (10mm thermal / 12mm visible) - 4MP resolution (visible lens) - 4MP resolution (visible lens) - Temperature measurement range from –20 °C to +550 °C - Double sensor (1x thermal + 1x 1/2.7") - H.265 compression - Video Analysis - Smoke, fire, hot and cold area detection - Motion Detection - Active deterrence - ROI - AWB - DWDR - BLC - HLC - Audio 1in/1out - Alarm 2in/2out - RS485 - RJ-45 Ethernet port - MicroSD slot up to 256GB (not included) - IP67 protection - Ideal for video surveillance systems.

Product details

TPC-BF1241-B3F4-DW-S8

  • ONVIF® PoE IP - Professional Thermal Camera - Dahua - TPC-BF1241-TB10F12-DW-S8
  • Dual-Lens Technology, dual optics (Thermal 10mm / Visible 12mm 4MP )
  • Dual-Sensor Technology , dual sensor (Vanadium Oxide Uncooled Focal Plane Detector - Thermal / 1/2.7" 4MP CMOS - Visible)
  • Resolution 256x192 (thermal optics) / 4MP (visible optics)
  • Temperature measuring range from –20 °C to +550 °C
  • Smoke and fire detection
  • Alarm detection
  • Hot and cold area detection
  • Person/vehicle classification
  • Visual spectrum from 8μm–14μm
  • Sensitivity: < 40 mK (@f/1.0, 25 Hz, 300 K)
  • ROI, Motion Detection, Active deterrence
  • DWDR, HLC, BLC, AGC, AWB, 3DNR, 2DNR
  • Video Compression h.265
  • Dual Stream
  • Alarm: 2 input and 2 output
  • Audio: 1 audio input and 1 audio output
  • RS485
  • RJ-45 LAN Ethernet Port
  • 1 microSD-Card slot (Up to 256GB - not included)
  • Power supply NOT included
  • Power supply: 12V±20% DC/POE
  • IP67 protection
  • Dimensions: 205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55")
  • Product net weight: ≤ 0.9 kg (1.98 lb)
  • Operating temperature: -30°C to +60°C
  • 24 month warranty

Technical data sheet

Video Compression
TPC-BF1241-TB10F12-DW-S8

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Max. Resolution

256 × 192

PixelPitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

10mm

Field of View

H: 17.3°; V: 13.1°

H.265; H.264M; H.264H; H.264B; MJEPG

Resolution

Thermal :

Main Stream: 1280×960 (1.3M); XVGA (1024×768);
VGA (640 × 480); 256×192; 1280 × 960 (by default)
Sub Stream: VGA (640 × 480); 256×192; 256 × 192 (by default)

Visual :

Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)

Frame Rate

Thermal

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Visual

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256G)

Interoperability

ONVIF®; CGI; DaHua SDK

Browser

IE: IE 8 and later
Google: 42 and earlier
Firefox: 42 and earlier

User/Host

10

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Port
Network 1 × RJ-45 (10/100 Base-T)
Audio Input 1
Audio Output 1
Alarm Input 2
AlarmOutput 2
RS-485 1 pair
Power
Power Supply 12VDC ± 20%; PoE
Power Consumption Basic: <3 w="" 12="" vdc="" led="" off="" 4w="" poe="" br=""> Max: <8.5 w="" 12="" vdc="" led="" on="" heater="" 10w="" poe="" td="">
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Storage Temperature –30 °C to +70 °C (–22 °F to ﹢158 °F)
Operating Humidity ≤95%
Protection IP67
Structure
Product Dimensions 205.5 mm × 90.4 mm × 90.1 mm (8.09'' × 3.56'' × 3.55'') (L × W × H)
Packaging Dimensions 279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'') (L × W × H)
Net Weight ≤ 0.9kg (1.98lb)
Gross Weight ≤ 1.3kg (2.87lb)
Heat Detection Distance
Focal Length Max. Distance
10mm 123 m (403.54 ft)
Perimeter Protection Distance
Focal Length Distance (Human) Distance (Vehicle)
10mm 70m (229.66ft) 209 m (685.70 ft)

Further details

Thermal Camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean?
Read our articles!

- Radiometric technology applied to body temperature measurement
- Thermal camera: what it is and why choose it for video surveillance

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems
PoE Power Supply

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.


Dual-Lens Technology!
This camera is equipped with 2 lenses , a 10mm thermal and a 12mm visible .



Dual-Sensor Technology!
This camera is equipped with 2 image sensors ,
- Uncooled VOx Microbolometer for Thermal Optics (with 256 × 192 resolution)
- 1/2.7" 4M CMOS for visible optics, with 4MP resolution


This camera is a THERMAL CAMERA .

Sensitivity < 40 mK (@f/1.0, 25 Hz, 300 K)

Visual spectrum from 8 to 14µm


This camera features SMART DETECTION
- Crossing Line

- Intrusion

- Classification of People / Vehicles)

- Smoke Detection

- Detection of hot and cold areas

- Fire Detection & Alarm


This camera is able to detect the presence of fire

Full HD It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event.
This 2 Input + 2 Output Camera
Ingresso Audio This camera has 1 input + 1 Audio Output
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

DWDR function

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
AGC Automatic Gain Control function The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
ATW (Auto Tracing White Balance)

ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera depending on the color temperature. ATW is a more advanced function than AWB (Auto White Balance), and is very important because without it, the images may be completely unusable.

Possibility to adjust the color balance also manually (MWB)

Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.


RS485 supported

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
