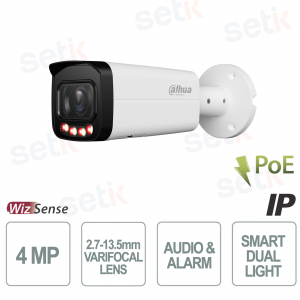

ONVIF® POE OUTDOOR IP CAMERA - 4 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - DAHUA

Dahua
ONVIF® PoE IP Camera - Dahua AI Series
4Megapixel Resolution - 2.7-13.5mm Lens with Motorized Zoom - 1/2.9" CMOS
Day/Night (ICR) - WDR 120dB - Smart Dual Light IR 4 LEDs 60MT
Artificial Intelligence - RS485, 512 GB MicroSD Slot (not included)

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of full-range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high precision, allowing users to focus on real targets. Based on Dahua's advanced technology, WizSense makes your video intelligent, simple and inclusive.

Intelligent refers to WizSense based on AI chip and deep learning algorithm. It provides various functions that realize accurate alarms for people and vehicles, as well as rapid target search, maximizing resources to increase overall efficiency.
Simple means that WizSense offers easy setup, especially for SMD Plus which can be enabled with just one button. It makes the daily work of the customers easier and also empowers them to make better business decisions.
WizSense Inclusiveness is the idea that everyone gets opportunities and benefits from AI. With affordable pricing and easy setup of Dahua WizSense, AI is no longer limited to the ivory tower, but instead is applied to real-world scenarios.



Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.



Product details

IPC-HFW3449T-ZAS-IL

  • Outdoor PoE AI IP Camera - Wizsense Dahua
  • Resolution 4Megapixel
  • 2.7-13.5mm varifocal lens with motorized zoom
  • 1/2.9” CMOS sensor
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
  • Smart Dual Light IR 4 LEDs 60MT
  • Perimeter Protection: Line Crossing, Intrusion (People & Vehicle Classification)
  • Remote viewing with DMSS
  • Audio: 1 input + 1 RCA output
  • Alarm: 1 input + 1 output
  • Micro SD memory slot (Up to 512GB - not included)
  • IP67 protection
  • Material: Metal
  • Power supply NOT included
  • Dimension 238.5 mm × 90.7 mm × 90.7 mm
  • 24 month warranty

Technical data sheet

Model IPC-HFW3449T-ZAS-IL
Room
Image Sensor 1/2.9" CMOS
Effective Pixel 2688 (H) ×1520 (V)
ROM/RAM 256MB/1GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W,30 IRE)
0 lux (Illuminator on)

Y/N Ratio

> 56 dB

Illumination Distance Up to 60 m (196.85 ft) (IR)
Up to 60 m (196.85 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Focal Length 2.7~13.5mm motorized
Mount Type φ14
Focal Length 2.7mm–13.5mm
Max. Openings F1.4
Field Of View H: 104°–29°; V: 54°–16°; D: 125°–34°
Iris Type Fixed
Close Focus Distance 0.1 m (0.33 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
SMD SMD4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
SmartSearch Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2688 × 1520@(1 fps–25/30 fps)
Sub stream: 1920 × 1080@(1 fps–25/30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 Streams
Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control VBR;CBR;ABR
Video Bitrate

H.264: 3kbps–16384kbps
H.265: 3kbps–16384kbps

Day/Night Auto(ICR) / Color / B/W
BLC Yes
HLC Yes
WDR 120dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Car
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region Of interest Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 Areas
Audio
Built-in Mic Yes, built-in Mic
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host

20 (Total bandwidth: 64M)

Storage FTP; SFTP; Micro SD Card (support max. 512G); Dahua Cloud; NAS
Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Smartphone IOS, Android
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
AlarmOutput 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 3.2W (12VDC); 4.8W (PoE)
Max. :9.3W (12VDC); 11.9 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment
Operating Temperature -30°C to +60°C (-22°F to +140°F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67
Structure
Casing Metal
Dimensions 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
Net Weight 835g (1.84lb)
Gross Weight 1090g (2.40 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE Power Supply The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

AI | Artificial Intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection: Intrusion, Line crossing (people & vehicles classification)

AI Camera - Rilevamento volto

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

Questa telecamera ha una risoluzione 4Mpx 2560x1440 This camera has a resolution of 4Megapixel :
4MP (1~25/30fps)

Image sensor 1/3” 4Megapixel progressive scan CMOS

2.7-13.5mm varifocal lens with motorized zoom

Motorized zoom example

Main stream 2688 × 1520@(1 fps–25/30 fps)
sub stream 1920 × 1080@(1 fps–25/30 fps)
third stream 1920 × 1080@(1 fps–25/30 fps)

Illuminatore IR fino a 60mt

Infrared illuminator with 4 LEDs and approximate maximum range of 60m

This camera also features SMART DUAL LIGHT technology
Up to 60 m (196.85 ft) (IR)
Up to 60 m (196.85 ft) (Warm light)

Full HD

Remote visibility on mobile using Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
Questo DVR presenta ingressi / uscite audio This camera features 1 audio input + 1 RCA audio output
Ingressi e Uscite Allarme This camera has 1 input + 1 alarm output
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 512Gb - not included

Power supply 12V 3A Power supply NOT included
Power supply 12V DC
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
IPC-HFW3449T-ZAS-IL dimensioni
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
