126261.197.WH1 #126261 | Ajax TurretCam HL is a 5MP wired IP camera with 2.8 mm lens and an elegant white body. It offers clear, color images day and night thanks to hybrid illumination and TrueWDR , ensuring quality even in low light conditions. Integrated with Artificial Intelligence , it accurately detects people, vehicles and animals, sending intelligent alarms and reducing false alerts. Its compact structure, certified IP65 and IK08 , ensures resistance to external agents, while compatibility with PoE and Ajax Cloud simplifies installation and management. An advanced solution for professional video surveillance that combines security, AI and design.
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

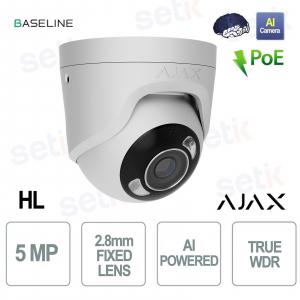

126261.197.WH1 | AI-Powered 110° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.

The Ajax TurretCam HL, 126261.197.WH1 , is a wired IP camera with Artificial Intelligence, designed for indoor and outdoor environments, which guarantees clear, color images both day and night thanks to hybrid IR and white light illumination and TrueWDR. Durable and reliable, with IP65 and IK08 certification, it ensures protection against dust, water and impacts, making it ideal for professional and residential environments.
Main specifications:
- Resolution up to 5MP with 2.8mm lens
- Integrated AI for the recognition of people, vehicles and animals
- Hybrid illumination for clear vision up to 50 m even in the dark
- TrueWDR for balanced images in any lighting condition
- Advanced security with TLS encrypted transmissions and tamper-proof protections
- PoE and ONVIF/RTSP compatibility for easy installation and quick integration
Further details
Technical data sheet
126261.197.WH1 |
|
Room | Image sensor 5 MP CMOS, 1/2.8" type Lens focal length 2.8 mm Maximum openings f/1.6 Lens iris type fixed Lens focal type fixed Field of view horizontal: 110° vertical: 58° diagonal: 131° Maximum illumination distance
|
Video | Resolution
up to 25 fps Image rotation 0°, 180° Video codec H.265, H.264 Dynamic range True WDR Storage microSD Ajax NVR Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set. |
Audio | Built-in microphone With the corresponding settings, the camera can record audio at the scene. Audio codec G711-ULAW, G711-ALAW, G726, G722 |
Intelligent video analytics | Motion detection The camera detects motion using image frame analysis software. AI object detection People Pets Vehicles |
Network | Port 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS Interoperability ONVIF (Profile S/T*) Ajax cameras and NVRs can be integrated into third-party video management systems (VMS). * Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available. |
Key features | Video protocol JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Visual verification of Ajax alarms The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app. Privacy Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences. |
Sabotage protection | mTLS: Encrypted connection for data protection. Authentication: via Ajax Cloud Secure Boot: Protection against firmware spoofing. OTA signature verification: Secure automatic firmware update. |
Power supply | Standard PoE 802.3at/af PoE power consumption
12 V⎓ ± 20%, 1 A 12 V DC power consumption
|
Enclosures |
Dimensions: |
Colors | White |
Complete set | TurretCam HL (5 Mp/2.8 mm) Installation template Installation kit Quick start guide |
Warranty | 24 months |
