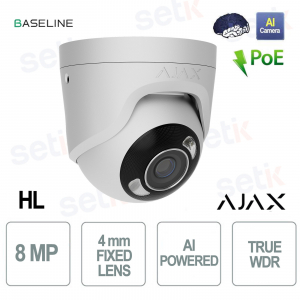

Ajax TurretCam HL 8MP 4mm White: IP Camera with AI and Night Vision

Ajax TurretCam HL 8MP 4mm White: IP Camera with AI and Night Vision
NEW New

126267.197.WH1 #126267 | Ajax TurretCam HL, is an 8MP wired IP camera with 4 mm lens and an elegant white body. It offers clear, color images day and night thanks to hybrid illumination and TrueWDR , ensuring quality even in low light conditions. Integrated with Artificial Intelligence , it accurately detects people, vehicles and animals, sending intelligent alarms and reducing false alerts. Its compact structure, certified IP65 and IK08 , ensures resistance to external agents, while compatibility with PoE and Ajax Cloud simplifies installation and management. An advanced solution for professional video surveillance that combines security, AI and design.

Technical Data Sheet

Reference: 126267.197.WH1

Brand: Ajax Systems

EAN: 4823114073045

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126267.197.WH1 | AI-Powered 85° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.


Ajax

The Ajax TurretCam HL, 126267.197.WH1 , is a wired IP camera with Artificial Intelligence, designed for indoor and outdoor environments, which guarantees clear, color images both day and night thanks to hybrid IR and white light illumination and TrueWDR. Durable and reliable, with IP65 and IK08 certification, it ensures protection against dust, water and impacts, making it ideal for professional and residential environments.

Main specifications:

- Resolution up to 8MP with 4mm lenses

- Integrated AI for the recognition of people, vehicles and animals

- Hybrid illumination for clear vision up to 50 m even in the dark

- TrueWDR for balanced images in any lighting condition

- Advanced security with TLS encrypted transmissions and tamper-proof protections

- PoE and ONVIF/RTSP compatibility for easy installation and quick integration

Further details

8MP Resolution :
It guarantees detailed images up to 3840×2160 pixels, with 20 fps and crystal-clear rendering even in moving scenes, ideal for professional video surveillance .
4mm Optics:
Wide angle lens with a field of view up to 85°, perfect for monitoring large areas with a single installation .
Dynamic range (TrueWDR) :
Advanced technology to balance light and dark areas, delivering a clear and uniform image even in high-contrast conditions.
Audio:
Equipped with a built-in digital microphone, it enables reliable audio recordings and supports visual and audible alarm verification.
Intelligent video analysis:
Thanks to AI, it recognizes people, vehicles and animals, reducing false alarms and ensuring accurate notifications in real time .
Network:
Secure and smooth video transmission thanks to ONVIF/RTSP protocols, direct streaming via Ajax Cloud and speeds up to 100 Mbps full duplex .
JetSparrow:
Proprietary Ajax protocol that ensures ultra-fast video transmission, optimized storage and smooth navigation through recordings .
Anti-sabotage protection:
IP65 and IK08 certified, resistant to dust, water and shock, with anti-tampering functions and constant monitoring of the device status .

Technical data sheet

126267.197.WH1

Room Image sensor
8 MP CMOS, 1/2.7" type
Lens focal length
4 mm
Maximum openings
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 85°
vertical: 44°
diagonal: 105°
Maximum illumination distance
  • white LED: up to 50 m
  • IR LED: up to 50 m
  • white LED: up to 164 ft
  • IR LED: up to 164 ft
Video Resolution
  • 8 MP (3840 × 2160)
  • 6 MP (3072 × 1728)
  • 5 MP (2944 × 1656)
  • 5 MP (2880 × 1620)
  • 4 MP (2560 × 1440)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 20 fps
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Key features Video protocol
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS: Encrypted connection for data protection.
Authentication: via Ajax Cloud
Secure Boot: Protection against firmware spoofing.
OTA signature verification: Secure automatic firmware update.
Power supply Standard PoE
802.3at/af
PoE power consumption
  • maximum: up to 7.2 W
  • average: up to 6.9 W
Power supply unit
12 V⎓ ± 20%, 1 A
12 V DC power consumption
  • maximum: up to 6.3 W
  • average: up to 6 W
Enclosures

Dimensions:
103×98×98mm
4.05″ × 3.86″ × 3.86″
Weight
475 g
1.05 lb
Operating temperature range
from −30 °C to +60 °C
from −22 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65

Colors White
Complete set TurretCam HL (5 Mp/2.8 mm)
Installation template
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
