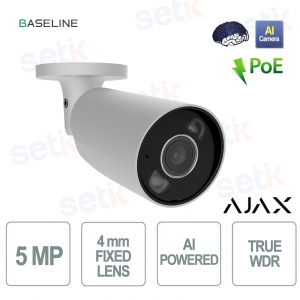

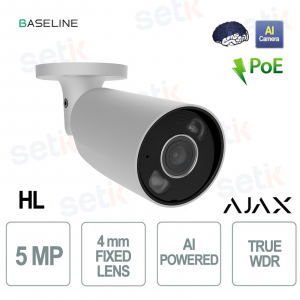

Ajax BulletCam HL 5MP 4mm White with AI – Smart Security IP Camera with TrueWDR

Ajax BulletCam HL 5MP 4mm White with AI – Smart Security IP Camera with TrueWDR
NEW New

126255.217.WH1 #126255 | Ajax BulletCam HL, a white IP camera with a 4 mm lens and 5MP resolution, offers clear color images both day and night thanks to hybrid illumination and TrueWDR technology. Built-in artificial intelligence ensures accurate recognition of people, vehicles, and animals, improving prevention and real-time alarm management. Designed for indoor and outdoor environments, it ensures reliability with encrypted video transmission, dust and water resistance ( IP65, IK08 ), and remote management via a dedicated app, making it an advanced and secure solution for modern video surveillance.

Technical Data Sheet

Reference: 126255.217.WH1

Brand: Ajax Systems

EAN: 4823114072925

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126255.217.WH1 | AI-Powered 85° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.


Ajax

The Ajax BulletCam HL, 126255.217.WH1 , white 5MP camera with 4mm lens is an advanced video surveillance solution with built-in AI for intelligent recognition of people, vehicles, and animals. Thanks to TrueWDR technology and hybrid illumination, it offers clear color images both day and night, ensuring maximum security and reliability. Water and dust resistant (IP65, IK08), it supports PoE, encrypted video transmission, and remote management via app for complete and intuitive control.

Main specifications:

- 5MP resolution – high definition images

- 4mm lens – wide viewing angle up to 85°

- Artificial Intelligence – human, vehicle and animal recognition

- TrueWDR and hybrid illumination – clear day/night vision

- IP65/IK08 protection – dust and weather resistant

- Remote management and real-time notifications via app

Further details

5MP Resolution :
It provides high-definition images up to 2880 × 1620 pixels , with sharp and clear details both day and night, making it easier to recognize people and objects.
4mm Optics:
Wide angle lens with 85° field of view, ideal for covering large areas without loss of quality, perfect for both indoor and outdoor environments.
Dynamic range (TrueWDR) :
True Wide Dynamic Range technology improves visibility in high-contrast lighting conditions, allowing you to clearly distinguish subjects and details even in brightly lit or backlit scenes.
Audio:
Built-in digital microphone for ambient audio recording, useful for verifying events and increasing the level of security thanks to not only visual but also audio surveillance.
Intelligent video analysis:
The camera uses artificial intelligence for advanced recognition of people, vehicles and animals, reducing false alarms and ensuring accurate monitoring of relevant activities.
Network:
It supports encrypted video transmission , 100 Mbps full-duplex Ethernet connection and ONVIF/RTSP protocols, ensuring compatibility with third-party NVRs and video surveillance systems.
JetSparrow:
Proprietary Ajax technology that enables instant and secure video transmission, with smooth navigation through archives and reduced access time to recordings.
Anti-sabotage protection:
Equipped with anti-tampering and sabotage detection systems, the BulletCam HL sends immediate notifications in the event of interference or alteration, maintaining high surveillance reliability.

Technical data sheet

126255.217.WH1

Room Image sensor
5 MP CMOS, 1/2.8" type
Lens focal length
4 mm
Maximum openings
f/1.6
Lens iris type
fixed
Lens focal type
fixed
Field of view
horizontal: 85°
vertical: 46°
diagonal: 110°
Maximum illumination distance
  • white LED: up to 50 m
  • IR LED: up to 50 m
  • white LED: up to 164 ft
  • IR LED: up to 164 ft
Video Resolution
  • 5 MP (2880 × 1620)
  • 4 MP (2560 × 1440)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 25 fps
Image rotation
0°, 180°
Video codec
H.265, H.264
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G711-ULAW, G711-ALAW, G726, G722
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Key features Video protocol
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Visual verification of Ajax alarms
The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS: Encrypted connection for data protection.
Authentication: via Ajax Cloud
Secure Boot: Protection against firmware spoofing.
OTA signature verification: Secure automatic firmware update.
Power supply Standard PoE
802.3at/af
PoE power consumption
  • maximum: up to 7.3 W
  • average: up to 6.0 W
Power supply unit
12 V⎓ ± 20%, 1 A
12 V DC power consumption
  • maximum: up to 6.3 W
  • average: up to 5.1 W
Enclosures

Dimensions:
198 × 76 × 76 mm
7.78″ × 2.99″ × 2.99″
Weight
550 g
1.21 lb
Operating temperature range
from −30 °C to +60 °C
from −22 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65

Colors White
Complete set BulletCam HL (5 Mp/4 mm)
Installation template
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
