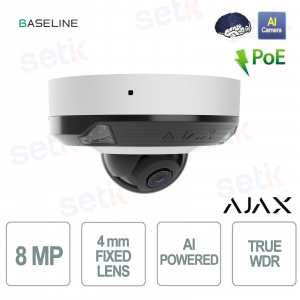

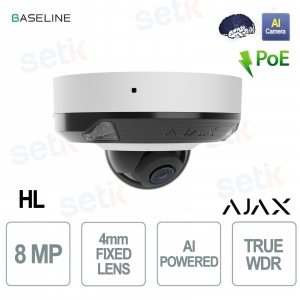

126275.214.WH1 #126275 | Ajax DomeCam Mini HL, a white IP camera with 4mm lens and 8MP resolution, is a compact and powerful IP camera, ideal for indoor and outdoor environments. Thanks to integrated artificial intelligence , it recognizes people, vehicles and animals, reducing false alarms and improving security. Hybrid illumination with TrueWDR ensures sharp, color images in any lighting conditions, while the integrated digital microphone provides clear ambient audio. With JetSparrow technology, it guarantees secure and smooth video transmission, PoE support and remote management from the app, combining advanced protection and ease of use in a compact and durable design ( IP65, IK08 ).
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
126275.214.WH1 | AI-Powered 85° Wide Angle Security IP Camera with Hybrid Lighting, TrueWDR, Microphone, and POE/12V.

The Ajax DomeCam Mini HL, 126275.214.WH1 , white with 4mm lens and 8MP resolution is a compact and powerful IP camera, designed for both indoors and outdoors. Thanks to integrated artificial intelligence, it recognizes people, vehicles and animals, reducing false alarms and increasing security. Hybrid illumination with TrueWDR technology ensures sharp, color images both day and night, while the digital microphone ensures clear ambient audio. With secure transmission via JetSparrow, PoE support and resistance to dust and water (IP65, IK08), it offers reliability and advanced remote control via a dedicated app .
Main specifications:
- 8MP resolution for detailed images
- 4mm optics with wide viewing angle
- Artificial Intelligence for smart analytics
- TrueWDR and hybrid day/night lighting
- Built-in microphone for audio recording
- JetSparrow technology for secure streaming
Further details
Technical data sheet
126275.214.WH1 |
|
Room | Image sensor 8 MP CMOS, 1/2.7" type Lens focal length 4 mm Maximum openings f/1.6 Lens iris type fixed Lens focal type fixed Field of view horizontal: 85° vertical: 44° diagonal: 105° Maximum illumination distance
|
Video | Resolution
up to 20 fps Image rotation 0°, 180° Video codec H.265, H.264 Dynamic range True WDR Storage microSD Ajax NVR Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set. |
Audio | Built-in microphone With the corresponding settings, the camera can record audio at the scene. Audio codec G711-ULAW, G711-ALAW, G726, G722 |
Intelligent video analytics | Motion detection The camera detects motion using image frame analysis software. AI object detection People Pets Vehicles |
Network | Port 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS Interoperability ONVIF (Profile S/T*) Ajax cameras and NVRs can be integrated into third-party video management systems (VMS). * Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available. |
Key features | Video protocol JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems. Visual verification of Ajax alarms The system allows you to configure a scenario according to which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop monitoring app. Privacy Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences. |
Sabotage protection | mTLS: Encrypted connection for data protection. Authentication: via Ajax Cloud Secure Boot: Protection against firmware spoofing. OTA signature verification: Secure automatic firmware update. |
Power supply | Standard PoE 802.3at/af PoE power consumption
12 V⎓ ± 20%, 1 A 12 V DC power consumption
|
Enclosures |
Dimensions: |
Colors | White |
Complete set | DomeCam Mini HL (8 Mp/4 mm) Installation template Installation kit Quick start guide |
Warranty | 24 months |
