VIGI Insight S285 (2.8mm) TP-Link VIGI - is a network dome camera with a 2.8mm fixed lens that offers wide-angle true-color vision even at night, ensuring clear and detailed 4K images. Equipped with advanced people and vehicle analysis functions, intelligent detection and two-way audio, it ensures precise notifications and complete protection in any scenario. With IP67 and IK10 resistance against water and vandalism, it is the ideal solution for professional video surveillance of companies, shops and public spaces.
3 Year Warranty
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

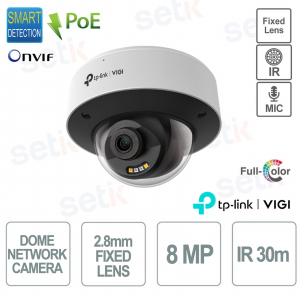

Insight S285 (2.8mm) | 8MP TP-LINK VIGI DOME CAMERA WITH NIGHT VISION | FULL-COLOR | AUDIO

The TP-Link VIGI InSight S285 (2.8mm) dome camera offers ultra-clear 4K images with color night vision, intelligent person and vehicle analysis, and two-way audio. Thanks to its IP67 and IK10 rugged design, it guarantees protection even in harsh outdoor environments, ideal for businesses, shops, and public spaces.
Main specifications:
- 2.8mm fixed lens with wide FOV 110°
- 4K Ultra HD resolution
- AI analysis of people and vehicles
- Smart Detection (intrusion, line crossing, abandoned objects)
- Two-way audio and built-in microphone
- IP67 and IK10 vandal-proof protection
Further details
✅ Network Camera:
Technical data sheet
Image Sensor | 1/2.7” Progressive Scan CMOS |
---|---|
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Min. Illumination | 0.005 Lux; 0 Lux with IR/white light |
Day & Night | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 2.8 mm |
Openings | F1.6 |
FOV | Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
Lens Mount | M12 |
ANGLE ADDJUSTMENT (MANUAL) | |
Range | Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355° |
ILLUMINATOR | |
IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
White LED | Quantity: 2 Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 3840 x 2160 |
Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps |
Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type | Main Profile/High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings |
|
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Settings | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP |
Onvif | Yes |
API | Open Network Video Interface (Profile S/T/G) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, Web UI, VIGI VMS, Utilities |
Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Cloud | Yes |
Alarm and Event Management | |
Smart Event |
|
Basic Event |
|
Alarm Linkage |
|
Linkage Method | N/A |
Face Comparison | Push Message |
DEEPLEARNING FUNCTION | |
People & Vehicle Analytics | Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier. |
INTERFACE | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512GB |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Material | Metal |
Net Weight | 0.62 kg |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.3 W |
Protection | IP67, IK10 |
Product Dimensions (L x W x H) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
