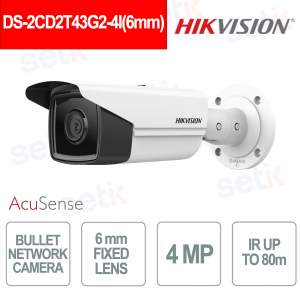

Hikvision 4MP 4I 6mm Camera with AcuSense AI, 80m IR and IP67 Protection

Hikvision 4MP 4I 6mm Camera with AcuSense AI, 80m IR and IP67 Protection
IN PROMOTION -35% New

The 4MP DS-2CD2T43G2-4I with a 6mm fixed lens ensures clear images even in low-light conditions, thanks to its CMOS sensor and IR illumination up to 80 meters. AcuSense technology with deep learning algorithms enables intelligent classification of people and vehicles, reducing false alarms and improving surveillance efficiency. Equipped with 120 dB WDR, H.265+ compression, and IP67 protection against water and dust, it is ideal for reliable outdoor installations. Advanced performance and professional-grade security come together in a compact, efficient solution that is easy to integrate into video surveillance systems. Hikvision

Technical Data Sheet

Reference: DS-2CD2T43G2-4I(6mm)

Brand: Hikvision

EAN: 6941264070849

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-2CD2T43G2-4I(6mm) – ACUSENSE 4MP 6MM FIXED LENS BULLET NETWORK CAMERA

Hikvision

The Hikvision DS-2CD2T43G2-4I(6mm) camera with a 6mm fixed lens offers 4MP resolution and AcuSense AI technology to distinguish people and vehicles, reducing false alarms. Thanks to 120 dB WDR, H.265+ compression and IP67 protection, it guarantees clear images and reliable security even in difficult conditions, with IR illumination up to 80 meters. A professional solution ideal for outdoor use, easy to integrate into modern video surveillance systems.

Main features:

- 4MP resolution with 1/3″ CMOS sensor

- 6mm fixed lens (52° horizontal FOV)

- AcuSense AI technology for people/vehicle detection

- WDR 120dB and 3D DNR for clear images

- IR up to 80m for advanced night vision

- IP67 protection against water and dust


Further details

Optics:
The 6mm fixed lens offers a 52° horizontal field of view, ideal for monitoring specific areas with greater precision and detail. It's perfect for monitoring entrances, parking lots, and perimeter areas where a targeted view is required.
Resolution:
Thanks to the 1/3” CMOS sensor and the maximum resolution of 4MP (2688×1520) , the camera guarantees clear and defined images, with 120 dB WDR technology that ensures optimal quality even in backlighting or in the presence of strong light contrasts.
Network camera:
This is a professional IP camera with support for major protocols (TCP/IP, HTTP, HTTPS, FTP, RTSP, NTP, IPv6, etc.), compatible with Hik-Connect and Hik-Central software, for simple and secure integration into network systems.
 Event :
It manages intelligent events such as intrusion detection , face detection , line crossing detection , and sends real-time notifications. Actions can include uploading to FTP, triggering recording, taking snapshots, or sending alerts to the surveillance center.
 Motion Detection:
The motion detection feature integrates AI algorithms that distinguish people from vehicles, drastically reducing false alarms caused by rain, animals, or blowing leaves. This improves safety and reduces response times.
AcuSense Technology :
Powered by deep learning, AcuSense technology takes video analytics to the next level, with intelligent object classification and targeted alarms. This enables reliable and precise control, optimizing surveillance in both commercial and residential environments.
DS-2CD2T43G2-4I dimensions

Technical data sheet

DS-2CD2T43G2-4I(6mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens type Fixed focal lens 6 mm
Focal Length & FOV 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Mount M12
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 80 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360),
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region(s) for main stream and sub-stream

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G), ISAPI, SDK
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,
Free live view plugin: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Privacy Mask

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in microSD, up to 512 GB
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Supports human and vehicle targets classification
Face detection
Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, sned email
General
Power supply 12 VDC ± 25%, 1.0 A, amx. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5W
Material Aluminum alloy body
Sun shield, IR cover: plastic
Dimension

Ø105 × 299.7 mm (Ø4.1″ × 11.8″)

Package Dimension

386 × 156 × 155 mm (15.2" × 6.2" × 6.2")

Weight

Approx. 1070 g (2.4 lb.)

With Package Weight

Approx. 1589 g (3.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function Heartbeat, anti-flicker, password reset via email, pixel counter
Approval
EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
