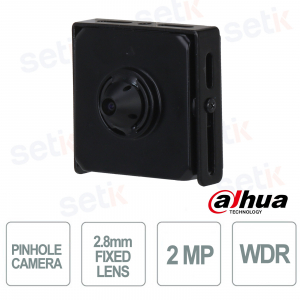

Dahua IPC-HUM8241E-L4-S3 2MP Pinhole Full HD Camera with 2.8mm Lens and WDR

Dahua IPC-HUM8241E-L4-S3 2MP Pinhole Full HD Camera with 2.8mm Lens and WDR
-56% New

IPC-HUM8241E-L4-S3 - is a camera part of the WizMind series, designed for professional covert and discreet video surveillance applications. Equipped with a 2MP CMOS sensor with Full HD 1920x1080 resolution at 50/60 fps, it guarantees clear and detailed images even in low light conditions. The 2.8 mm fixed lens with a viewing angle of up to 118° offers wide coverage for scenarios such as banks and advertising screens. Thanks to WDR technology, it optimally manages backlit areas ensuring uniform visibility. Compact, resistant and with a pinhole lens connected via an 8 m coaxial cable, it is ideal for installations in environments where maximum discretion is required. Dahua

Technical Data Sheet

Reference: IPC-HUM8241E-L4-S3

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HUM8241E-L4-S3 | 2MP MINI IP CAMERA WITH 2.8mm LENS

Dahua

The Dahua IPC-HUM8241E-L4-S3 WizMind series pinhole camera is a discreet and professional solution, ideal for covert video surveillance applications such as banks and sensitive areas. Equipped with a 2MP CMOS sensor with Full HD 1920x1080 resolution at 50/60 fps, it ensures clear and smooth images even in low-light conditions. The 2.8 mm fixed lens with a wide field of view of up to 118° allows for precise monitoring of small spaces, while WDR technology ensures optimal visibility even in the presence of strong contrast between light and shadow. Compact, durable, and designed to integrate into a variety of installation scenarios, it is a reliable choice for professional security.

Main specifications:

- 1/2.7" 2MP CMOS sensor

- Full HD resolution 1920×1080@50/60 fps

- 2.8 mm fixed optics with a viewing angle of up to 118°

- WDR technology for managing strong light contrasts

- Compact and discreet pinhole design for hidden installations

Further details

Optics :
The Dahua IPC-HUM8241E-L4-S3 camera is equipped with a 2.8 mm fixed lens with F2.0 aperture, capable of offering a wide field of view (118° diagonal, 104° horizontal). This pinhole lens, connected via an 8 m coaxial cable, guarantees discretion and precision in shooting.
Resolution:
Equipped with a 1/2.7" CMOS sensor and a Full HD 2MP resolution (1920×1080) at up to 50/60 fps, it ensures sharp and smooth images even in low light conditions, with a signal-to-noise ratio of over 56 dB to reduce digital noise.
Series Overview :
Part of the Dahua WizMind Pinhole series, this camera is designed for discreet installations in sensitive areas such as banks, shops, or billboards. Its compact structure and covert design make it ideal for contexts where maximum privacy is required without compromising video quality .
WDR :
Thanks to the 120 dB Wide Dynamic Range (WDR) technology, the camera precisely manages high-contrast areas of brightness, offering balanced and readable images even in the presence of strong backlighting or marked shadows .
IPC-HUM8241E-L4-S3 dimensions

Technical data sheet

IPC-HUM8241E-L4-S3

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F2.0 (Color, 30 IRE)
0.0005 lux@F2.0 (B/W, 30 IRE)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Openings

F2.0

Field of View

H: 104°; V: 59°; D: 118°

Close Focus Distance

0.5 m (1.64 ft)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Structure

Casing Material

Metal

Product Dimensions

35 mm × 35 mm × 26.7 mm (1.38" × 1.38" × 1.05") (L × W × H)

Net Weight

44 g (0.10 lb)

Gross Weight

395 g (0.87 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
