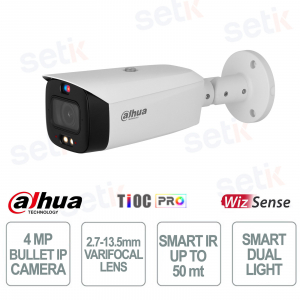

Dahua 4MP IP Bullet Camera White Varifocal 2.7–13.5mm with AI and Night Vision

Dahua 4MP IP Bullet Camera White Varifocal 2.7–13.5mm with AI and Night Vision
-56% New

IPC-HFW3449T1-ZAS-PV-S5 - is a WizSense 4MP white bullet network IP camera with 2.7–13.5mm varifocal lens, ideal for advanced security in residential and professional contexts. Thanks to the CMOS sensor and Smart Dual Light technology, it guarantees clear, color images even at night up to 50 meters , reducing light pollution. The latest generation AI functions offer perimeter protection, SMD 4.0 intelligent detection and active deterrence with red and blue lights plus voice alert. Equipped with a built-in microphone and speaker for two-way audio, it supports modern network protocols and H.265 compression to reduce bandwidth and storage. IP67 protection and PoE power supply make this camera reliable and versatile in any surveillance scenario. Dahua

Technical data sheet

Reference: IPC-HFW3449T1-ZAS-PV-S5

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HFW3449T1-ZAS-PV-S5 | 4MP IP BULLET CAMERA WITH 2.7-13.5mm VARIFOCAL LENS - PERIMETER PROTECTION - ACTIVE DETERRENCE - WHITE


Dahua

The Dahua IPC-HFW3449T1-ZAS-PV-S5 is a white 4MP bullet IP camera with a 2.7–13.5mm varifocal lens, designed to ensure clear and detailed images both day and night thanks to Smart Dual Light technology. Equipped with advanced AI, it reduces false alarms, offers perimeter protection and active deterrence with a siren and red and blue lights, making it ideal for residential and professional installations.

Main specifications:

- 4MP resolution (2688×1520) with H.265 compression

- 2.7–13.5mm varifocal lens for maximum flexibility

- Color night vision up to 50m (IR) and 40m (white light)

- AI functions: SMD 4.0, perimeter protection, vehicle/person recognition

- Two-way audio with built-in microphones and speaker

- IP67 dust and water resistant protection

Further details

Varifocal lens 2.7–13.5mm :
The motorized lens allows for wide adjustment of the field of view (from 103° to 33°), offering maximum flexibility for installations in different environments .
4MP Resolution:
The 1/2.7" CMOS sensor guarantees images up to 2688×1520@30fps, ensuring high definition and fluidity even in low light conditions .
Smart Dual Light :
Dual Light technology activates infrared illumination at night and automatically switches to white light when it detects a target, recording events in color and reducing light pollution .
Siren and Light Active Deterrence :
The deterrent system integrates a siren and red/blue lights, with the option to customize voice messages to discourage intrusions and increase preventative security.
SMD 4.0 :
The fourth-generation Smart Motion Detection uses AI algorithms to distinguish people and vehicles from irrelevant movements (such as animals), reducing false alarms.
Intelligence :
It includes intelligent functions such as face recognition, quick search (AcuPick), behavioral analysis and AI Scene Self-Adaptation to automatically optimize images.
Perimeter Protection :
It supports intrusion, line crossing, loitering and parking detection with accurate vehicle and person classification.
Microphone:
Equipped with dual microphones and built-in speakers, it enables clear two-way audio for instant interaction and ambient recording.

Network Camera:
Being an IP camera, it supports standard protocols such as ONVIF, HTTP, RTSP and P2P, ensuring compatibility with NVR and management software .
WizColor Technology :
It allows the capture of vivid color images even in low light conditions, using natural sources such as moonlight or streetlight.
WizSense Technology :
Belonging to the WizSense series, it integrates AI chips and deep learning to accurately detect people and vehicles, offering a simple and accessible intelligent surveillance solution.
IPC-HFW3449T1-ZAS-PV-S5 dimensions

Technical data sheet

MODEL IPC-HFW3449T1-ZAS-PV-S5
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 2688(H) × 1520 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 50 m (164.04 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ16
Focal Length 2.7 mm–13.5 mm
Max. Openings F1.0
Field of View H: 103°–33°
V: 54°–18°
D: 124°–38°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1 fps–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 3 stream
Resolution 4M (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR; ABR
Video Bit Rate H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Lighting Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE: IE 9/11
Chrome
Firefox
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client Android; iOS
Cyber Security Digests; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC /PoE (802.3af)
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 2.8W (12VDC); 3.6W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.9 W (12 VDC); 9.2W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Structure
Casing Material Metal + plastic
Product Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33") (L × W × H)
Net Weight 1.05 kg (2.31 lb)
Gross Weight 1.35 kg (2.98 lb)
