Hikvision 2MP 2.8mm AI camera with Audio and Smart Hybrid Light IP67

Hikvision 2MP 2.8mm AI camera with Audio and Smart Hybrid Light IP67
-35% New

DS-2CD1023G2-LIU - Bullet camera with 2.8mm fixed lens offers 2MP Full HD images with a 103° wide-angle viewing angle, ideal for monitoring residential and commercial areas. Thanks to integrated artificial intelligence, it supports the detection of people and vehicles, reducing false alarms. Smart Hybrid Light technology guarantees night vision up to 30 meters , automatically adapting IR and white light for always clear images. The built-in microphone allows real-time audio, while H.265+ compression ensures bandwidth and storage savings. With IP67 protection and a microSD slot up to 512GB, it is a reliable and durable solution for modern security. Hikvision

Technical Data Sheet

Reference: DS-2CD1023G2-LIU

Brand: Hikvision

EAN: 6931847189105

Disponibilità: 20

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

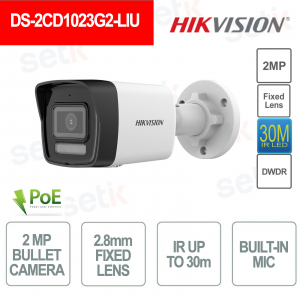

DS-2CD1023G2-LIU – 2MP FIXED LENS BULLET NETWORK CAMERA - HUMAN & VEHICLE DETECTION

Hikvision

The Hikvision DS-2CD1023G2-LIU camera with a 2.8mm fixed lens offers crisp 2MP Full HD images, ideal for homes and small businesses. Artificial intelligence with Human and Vehicle Detection reduces false alarms, while Smart Hybrid Light technology ensures color vision up to 30 meters even at night. With a built-in microphone, H.265+ compression, and IP67 protection, it guarantees reliable security and durability in any condition.

Main features:

- 2.8mm wide-angle fixed lens (FOV 103°)

- 2MP Full HD resolution (1920×1080)

- AI with Human Detection and Vehicle Detection

- Smart Hybrid Light with IR and white light up to 30m

- Built-in microphone for real-time audio

- H.265+ compression for bandwidth and storage savings

- IP67 protection against water and dust


Further details

Optics:
2.8mm F1.6 wide-angle fixed lens, with 103° horizontal field of view, ideal for monitoring large areas with clear and detailed images.
Resolution:
1/2.9" CMOS sensor with maximum resolution of 2MP Full HD (1920×1080), which guarantees clear and smooth videos up to 30fps.
Human Detection:
Built-in artificial intelligence to recognize human movements, reducing false alarms generated by animals or objects.
Vehicle Detection :
AI function dedicated to vehicle identification, useful for parking lots, entrances and company areas, with targeted notifications.
 Audio:
Built-in microphone with ambient noise filtering for superior quality real-time audio recording and communication.
Network :
It supports advanced protocols (TCP/IP, RTSP, HTTP, IPv6, SMTP, FTP), remote management via Hik-Connect and iVMS-4200, as well as network security with password, watermark and authentication.
DS-2CD1023G2-LIU dimensions

Technical data sheet

DS-2CD1023G2-LIU
Room
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type 2.8mm
Focal Length & FOV horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
Lens Mount M12
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50Hz: 25fps (1920×1080, 1280×720)
60Hz: 30fps (1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Network
Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)

Digital WDR

SNR ≥ 52 dB
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Built-in Microphone Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage trigger capture
General
Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max: 6.5W

Material

Metal & Plastic

Dimension

170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Approx. 265 g (0.6 lb.)

With Package Weight

Approx. 495 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
