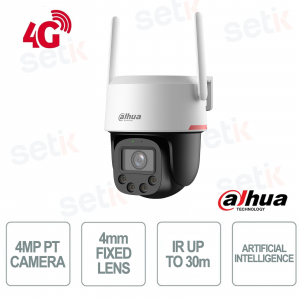

Dahua 4MP 4G Pan & Tilt Camera with 4mm Lens, AI, and 360° View

Dahua 4MP 4G Pan & Tilt Camera with 4mm Lens, AI, and 360° View
-57% New

The IPC-PT2449C1-ST4G-PV is a PT camera that offers 24/7 color images with a 4MP sensor and a 4mm F1.0 fixed lens, ensuring a wide field of view and sharp details even at night. Thanks to the 4G connection, Pan & Tilt movement and 360° monitoring, it ensures complete coverage without blind spots. It integrates advanced AI functions such as people and vehicle detection, auto-tracking , intelligent recognition and light and sound alarm to deter intruders. Weatherproof with IP66 certification, it supports two-way audio, microSD storage and H.265 compression for high performance and optimized management. Dahua

Technical data sheet

Reference: IPC-PT2449C1-ST4G-PV

Brand: Dahua

EAN: 6937552481275

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-PT2449C1-ST4G-PV | 4MP 4mm FIXED LENS WI-FI CAMERA - AUTO TRACKING - 4G - WIZ COLOR

Dahua

The Dahua IPC-PT2449C1-ST4G-PV 4MP WizColor 4G Pan & Tilt network camera ensures clear, color images 24/7 even in the dark, thanks to its 4mm F1.0 fixed lens and high-sensitivity sensor. It offers 360° monitoring without blind spots, advanced AI functions for human and vehicle detection, and auto-tracking technology that automatically follows movements. With IP66 protection, audible and light alarm, two-way audio and 4G connection, it is the ideal solution for security in residential and professional environments .

Main specifications:

- 4MP resolution (2560 × 1440)

- 4mm F1.0 fixed lens with 97° field of view

- PTZ functions: Pan 0°–345°, Tilt 0°–90°

- Color night vision with illumination up to 30 m

- AI Human & Vehicle Detection to reduce false alarms

- Auto-tracking of moving targets

- Integrated sound and light alarm

- Two-way audio with microphone and speaker

- 4G connection and compatibility with DMSS app

- IP66 resistance against dust, water and extreme conditions

Further details

Optics :
The camera is equipped with a 4mm F1.0 fixed lens with a 97° horizontal, 52° vertical, and 114° diagonal field of view. This configuration ensures wide, detailed images, ideal for monitoring indoor and outdoor areas .
Resolution:
Thanks to the 1/1.8” 4MP (2560 × 1440) CMOS sensor , it offers sharp images and high-definition videos even in low light conditions, maintaining bright colors and precise details .
4G Connection :
Built-in 4G LTE connectivity allows the camera to be used in remote locations or without a wired network, ensuring continuous monitoring and stable data transmission.
AI Human Detection:
Artificial intelligence recognizes human presence, reducing false alarms caused by irrelevant movements such as animals or moving objects.
AI Vehicle Detection:
In addition to people, the camera identifies passing or parked vehicles, improving the effectiveness of perimeter control and the security of sensitive areas.
AI-ISP :
Thanks to AI ISP technology, the camera automatically adapts the image to the scene, optimizing brightness, contrast and details even in dynamic or low-light environments.
Sound and Light Alarm :
It features a built-in sound and light alarm that activates in the event of an intrusion. This feature acts as a powerful deterrent to intruders, as well as providing an immediate warning.
Two-way Talk:
With a built-in microphone and speaker, it enables real-time two-way communication, useful for immediate alerts, interactions with visitors, or remote security management.
Auto Tracking :
The auto-tracking function allows the camera to automatically follow moving people or vehicles, keeping the subject always in the center of the scene for more precise surveillance.
Network Camera :
As a true network camera, it supports ONVIF protocols, Smart H.265+ compression, and microSD storage up to 256 GB. It can be managed via DSS Pro software, 5-series NVRs, and the DMSS mobile app for Android and iOS .

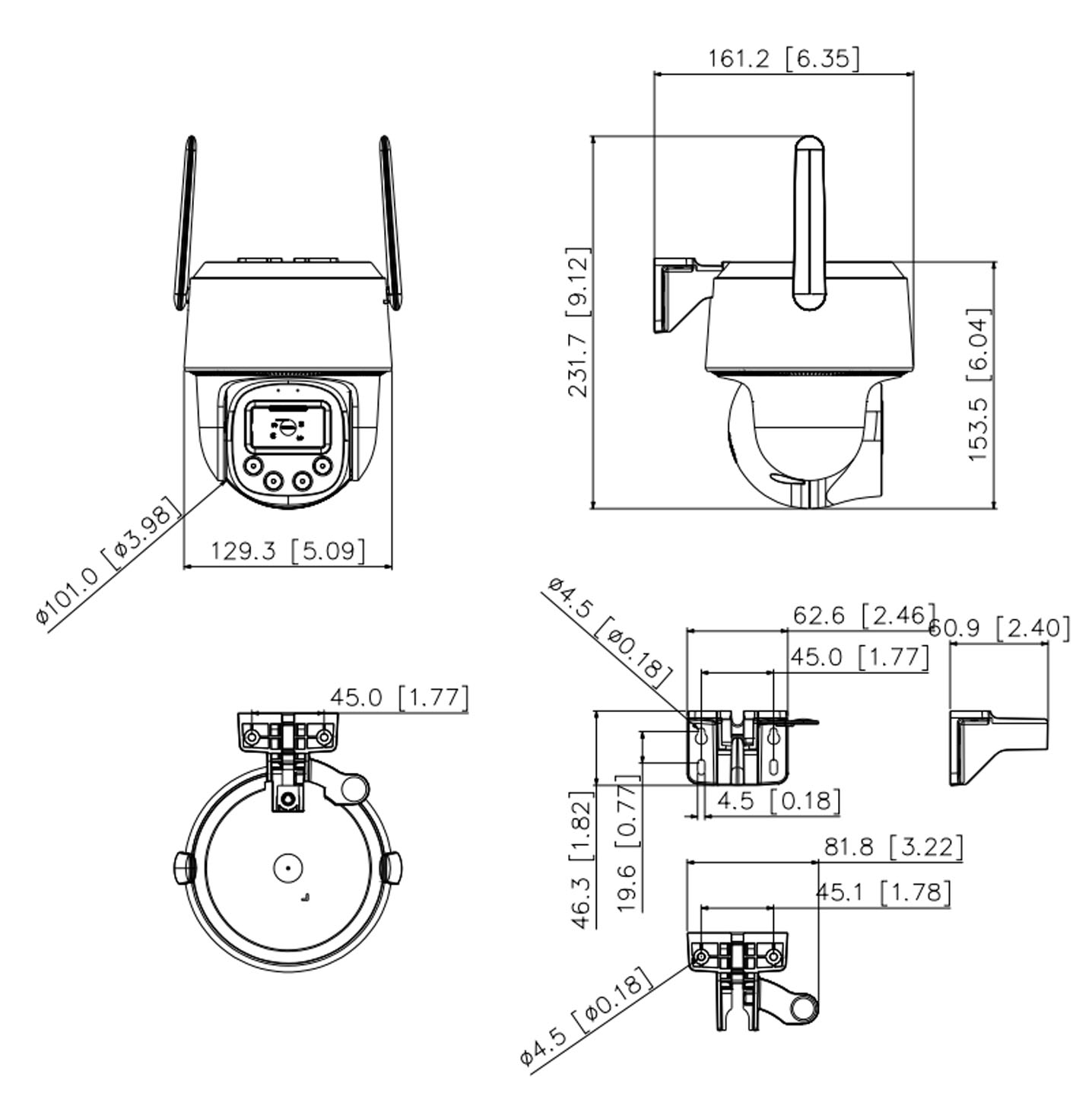

IPC-PT2449C1-ST4G-PV dimensions

Technical data sheet

MODEL IPC-PT2449C1-ST4G-PV
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 2560 (H) × 1440 (V)
Electronic Shutter Speed 1 s–1/30,000 s
Min. Illumination 0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)
Illumination Distance 30 m (98.43 ft) (Warm light)
Illuminator Number 4 (Warm light)
Lens
Focal Length 4 mm
Max. Openings F1.0
Field of View H: 97°; V: 52°; D: 114°
PTZ
Pan/Tilt Range Pan: 0° to 345°; Tilt: 0° to +90°
Smart Event
Human Detection Yes
Vehicle Detection Yes
Video
Video Compression Smart H.265+; H.264M; H.264H; Smart H.264+; H.265; H.264B; MJPEG
Video Frame Rate Main stream: 4M/1080p/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Day/Night Color/B/W
WDR DWDR
Motion Detection Yes
Image Rotation 180°
Audio
Audio Compression PCM, G.711A, G.711Mu
Built-in MIC Yes
Built-in Speaker Yes
Network
Network RJ-45 (10/100 Base-T)
Wireless Carrier Frequency Band UAE LTE-FDD:B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41
EUR LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Max. Transmission Power 4G: Power class3: 23dBm±2dB
Interoperability ONVIF (Profile S & Profile G & Profile T); SDK; CGI
Storage Micro SD card (Up to 256 GB); FTP
Management Software DSS Pro; 5 Series NVR; DMSS
Mobile Client Android; iOS
Function
Abnormal Sound Alarm Yes
Certification
Certifications THERE IS
Power
Power Supply 12 VDC, 1 A ± 10% (included)
Power Consumption Basic: 3 W Max: 7.5 W (illuminator + PTZ)
Environment
Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤95%
Protection TVS 2000V lightning proof; Waterproof and Dustproof; surge protection; voltage transient protection
Structure
Product Dimensions 153.5 mm × Φ129.3 mm (6.04" × Φ5.09")
Net Weight 0.60 kg (1.32 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
