8MP Black Dome Camera with AI, Night Vision, and Motorized Varifocal Lens

8MP Black Dome Camera with AI, Night Vision, and Motorized Varifocal Lens

 
Optic calculation
NEW New

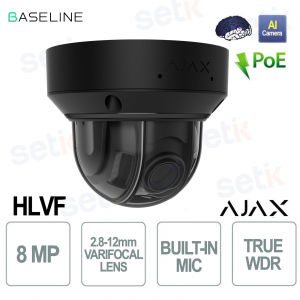

126286.214.BL1 # 126286 | The black DomeCam HLVF 8MP offers professional surveillance thanks to its 2.8–12 mm motorized varifocal lens with autofocus, ideal for obtaining clear 3K images in any scenario. Hybrid illumination allows color vision even in the dark, automatically switching between IR and white light up to 40 meters to capture every detail. The built-in AI recognizes people, vehicles, and animals, while the digital microphone ensures clear audio with noise reduction. With TrueWDR, ONVIF/RTSP support, PoE, and JetSparrow technology for fast and secure streaming, this camera is perfect for indoor/outdoor installations that require maximum reliability and smart management via app. Ajax

Technical Data Sheet

Reference: 126286.214.BL1

Brand: Ajax Systems

EAN: 4823114073236

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

126286.214.BL1 | AI WIRED SECURITY IP CAMERA, 2.8-12mm VARIFOCAL LENS, HYBRID LIGHTING, TRUE WDR, MICROPHONE, AUDIO AND ALARM IN/OUT, AND POE/12V.


Ajax

The black DomeCam HLVF, 126286.214.BL1 , 8MP is a professional security camera designed to deliver extremely sharp images thanks to the 2.8–12 mm motorized varifocal lens with autofocus and TrueWDR technology. Hybrid illumination allows for color vision even in the dead of night, automatically alternating between infrared and white light up to 40 meters to capture every detail. Artificial intelligence integrates advanced human, vehicle, and animal recognition functions, while the digital microphone reduces noise for clear audio. ONVIF/RTSP compatible, PoE powered, and equipped with the JetSparrow protocol for ultra-smooth streaming, it is the ideal solution for indoor/outdoor installations that require maximum reliability.

Main specifications:

- 8MP resolution (3840 × 2160 px)

- Motorized varifocal lens 2.8–12 mm

- Hybrid night vision: IR up to 40m, white light up to 25m

- AI for people, vehicle and animal recognition

- TrueWDR for always balanced images

- Built-in microphone with noise reduction

- IP67 and IK10 certifications for outdoor installations

- PoE power supply and ONVIF/RTSP support

Further details

✅ Advanced Optics :
2.8–12mm motorized varifocal lens to adjust the viewing angle from wide to detailed, with instant autofocus for consistently sharp images even after every adjustment.
✅ 8MP Resolution:
Video capture up to 3840 × 2160 px @25fps, with TrueWDR technology that improves image rendering in high-contrast lighting conditions.
✅ Built-in microphone:
Crystal-clear audio thanks to the digital microphone with noise cancellation and echo-cancellation, ideal for advanced verification and monitoring.
✅ AI Motion Detection:
Motion detection directly in the video frame, with the ability to create automatic scenarios connected to the security system.
✅ AI Object Detection:
Advanced identification of people, vehicles and animals, improving alarm accuracy and reducing false alarms.
✅ Professional network:
Video streaming via ONVIF/RTSP protocols and bandwidth up to 100 Mbps full-duplex, with support for live monitoring of up to 5 simultaneous channels.
✅ Built-in alarm:
Inputs/outputs for connecting sirens or external devices, activated via automatic scenarios or AI recognition.
✅ JetSparrow:
Proprietary Ajax protocol for stable, fast and highly secure video transmission, ensuring low latency and instant access to recordings.
✅ Anti-sabotage protection:
Advanced features to prevent tampering, including mTLS authentication, TLS encrypted streaming, and NDAA-compliant components for maximum security.

Technical data sheet

126286.214.BL1
Room Image sensor
8 MP CMOS, 1/2.7" type
Lens focal length
2.8–12.0 mm
Maximum openings
f/1.6
Lens iris type
Iris
Lens focal type
Varifocal
Field of view
horizontal: 31°–111°
vertical: 17°–57°
diagonal: 35°–135°
Maximum illumination distance
  • white LED: up to 25 m
  • IR LED: up to 40 m
  • white LED: up to 82 ft
  • IR LED: up to 131 ft
Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances, both near and far, in low-light conditions.
Video Resolution
  • 8 MP (3840 × 2160)
  • 6 MP (3072 × 1728)
  • 5 MP (2944 × 1656)
  • 5 MP (2880 × 1620)
  • 5 MP (2688 × 1520)
  • 5 MP (2592 × 1944)
  • 4 MP (2560 × 1440)
  • 3 MP (2304 × 1296)
  • 2 MP (1920 × 1080)
  • 0.6 MP (1024 × 576)
Frame rate
up to 25 fps
Image rotation
0°, 90°, 180°, 270°
Video codec
H.265, H.264
Dynamic range
True WDR
Storage
microSD
Ajax NVR
Camera supports microSD up to 256 GB. The memory card should be Class V30 or faster. The card is not included in the complete set.
Audio Built-in microphone
1
With the corresponding settings, the camera can record audio at the scene.
Audio codec
G.711 µ-law, G.711 A-law, G.726, G.722
Intelligent video analytics Motion detection
The camera detects motion using image frame analysis software.
AI object detection
People
Pets
Vehicles
Line crossing
Network Port
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF (Profile S/T*)
Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).
* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.
Alarm port Lines for third-party devices
2
Alarm IN type
NO, NC
Configured in Ajax apps.
Alarm IN max voltage
5 V⎓
Alarm OUT operating range
48 V⎓, 300 mA
Audio port Lines for third-party devices
2
Audio IN type
external microphone input
Supports active microphones with a built-in preamplifier.
Audio IN settings
gain
enable/disable
Configured in Ajax apps.
Audio OUT type
speaker output
Supports connection of an external speaker (min. 3 W, ≥ 4 Ω). When an external speaker is connected, the internal one is disabled.
Key features Video transmission
JetSparrow
Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Focal length change
autofocus
manual focus control
Configured in Ajax apps.
Visual verification of system alarms
Ajax systems allow users to configure a scenario in which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop Ajax PRO app.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Sabotage protection mTLS
Encrypted connection for data protection
Authentication
via Ajax Cloud
Secure Boot
Protection against firmware spoofing
OTA signature verification
Secure automatic firmware update
Accelerometer
Alerts on attempts to move or dismount the camera
Power supply Standard PoE
802.3at/af (Class 3)
External power connector type
screw terminal connector (2 pin)
PoE power consumption
  • maximum: up to TBC W
  • average: up to TBC W
Power supply unit
12 V⎓ ± 20%, 1.9 A
Enclosures

Dimensions:
136 × 115 × 136 mm
5.35″ × 4.54″ × 5.35″
Weight
TBC g
TBC lb
Operating temperature range
from −40 °C to +60 °C
from −40 °F to 140 °F
Operating humidity
up to 90%
Protection class
IP65, IK10
Colors Black
Complete set DomeCam HLVF (8 Mp)
Installation template
Installation kit
3 screw terminal connectors
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
