IPC-HFW5859E1-Z4E-IL - The WizMind IP camera is an advanced solution for professional video surveillance, equipped with an 8MP 1/1.8” CMOS sensor and 8–32 mm varifocal motorized lens for precise control of monitored areas. Thanks to deep learning-based AI functions such as AcuPick, perimeter protection, face detection and people counting, it guarantees intelligent analysis and false alarm reduction. Smart Dual Light technology ensures color images even at night with IR up to 120 m and warm light up to 80 m. 120 dB WDR , AI H.265/H.264 support and IP67 and IK10 structure make this camera ideal for critical outdoor environments and high-performance professional installations. Dahua
FIND INSTALLER

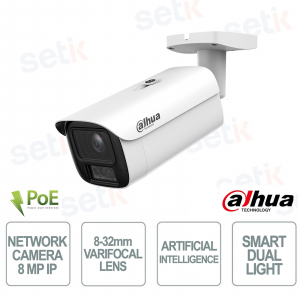

IPC-HFW5859E1-Z4E-IL | 8MP IP BULLET CAMERA VARIFOCAL LENS 8-32mm - SMART DUAL LIGHT - ARTIFICIAL INTELLIGENCE
The Dahua WizMind IPC-HFW5859E1-Z4E-IL IP camera is an advanced video surveillance solution designed for professional contexts and critical outdoor environments, thanks to the 8MP 1/1.8” CMOS sensor that ensures ultra-high definition images even in low light conditions. The 8–32 mm motorized varifocal lens allows for precise framing adjustment, while artificial intelligence functions with deep learning enable advanced analysis such as perimeter protection, face detection and people counting. Smart Dual Light technology ensures effective night vision with color images, supported by IR up to 120 m and warm light up to 80 m. AI H.265/H.264 compression, 120 dB WDR and IP67 and IK10 structure complete a reliable, high-performance camera that is ideal for advanced security systems.
Main specifications:
- 8MP 1/1.8” CMOS sensor with resolution up to 3840×2160
- 8–32 mm varifocal motorized lens with F1.6 aperture
- Advanced AI features with deep learning: AcuPick, IVS, face detection and people counting
- Smart Dual Light with IR up to 120 m and warm light up to 80 m
- AI H.265/H.264 video compression and 120 dB WDR
- IP67 and IK10 protection for professional outdoor installations
Further details
✅ Varifocal optics :
The 8–32 mm motorized varifocal lens allows for precise framing adjustment, adapting to different distances and surveillance scenarios, ideal for contexts that require maximum zoom flexibility and detailed control of the monitored area.
✅ Resolution:
Thanks to the 8MP resolution (3840×2160) and the 1/1.8” CMOS sensor , the camera guarantees very high definition images , high sharpness and excellent performance even in low light conditions.✅ Xinghan Large-Scale AI Models-Vision:
The Xinghan AI platform integrates large-scale AI models and NPU power, optimizing object recognition, scene analysis, and advanced data processing directly at the camera edge.
✅ Smart Dual Light:
Dahua Smart Dual Light technology combines infrared up to 120m and warm light up to 80m , automatically activating color vision only when events occur, improving night-time image quality and reducing light pollution.
✅ Artificial Intelligence:
Deep learning AI features enable perimeter protection, face detection, people counting, AcuPick, and video metadata , ensuring intelligent analytics , increased accuracy, and a drastic reduction in false alarms.
✅ Microphone:
The built-in microphone allows for ambient audio recording , adding an additional layer of information to video surveillance for more complete and effective security management. ✅ Alarm:
The system supports alarm inputs and outputs with numerous configurable intelligent events , enabling advanced integrations with security systems and automatic responses to critical events.
✅ Network Camera:
As an IP network camera , it supports ONVIF, PoE+ and ePoE , ensuring simple integration , stable data transmission and compatibility with video surveillance systems. ✅ WizMind:
Part of the Dahua WizMind range, the camera leverages enterprise-level AI solutions designed for complex projects, offering reliability, analytical precision and high performance for advanced vertical applications.
Technical data sheet
| MODEL | IPC-HFW5859E1-Z4E-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 120 m (393.70 ft) (IR) Up to 80 m (262.47 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Module |
| Focal Length | 8 mm–32 mm |
| Max. Openings | F1.6 |
| Field of View | H: 41°–9°; V: 22°–15°; D: 47°–18° |
| Iris Control | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later; Chrome: Chrome 102 and later; Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7W (12VDC); 5W (PoE); Max. 12.9W (12VDC); 16.1 W (PoE) (IR on + WDR + intelligence on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95%(RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *Basic Protection: The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. *Moderate Protection: The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably in areas up to 2 km (1.24 mi) from the coast, as well as in regions prone to acid rain exposure. *Professional Protection: The products are fitted with premium-level anti-corrosion protection, making them ideal for use in sensitive environments such as chemical plants, docks, and coastlines. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L × W × H) |
| Net Weight | 1.09 kg (2.40 lb) |
| Gross Weight | 1.39 kg (3.06 lb) |
