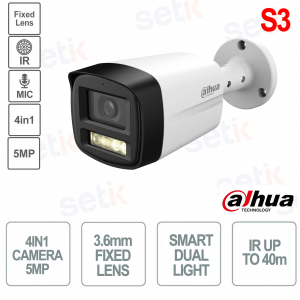

Dahua S3 5MP HDCVI Camera with 3.6mm Lens, Smart Dual Light, and IP67 Microphone

Dahua S3 5MP HDCVI Camera with 3.6mm Lens, Smart Dual Light, and IP67 Microphone
BEST SELLER -57% New

HAC-HFW1500TLM-IL-A-S3 - The HDCVI camera is a reliable solution for residential and SMB video surveillance, designed to offer 5MP Full HD+ images with high performance even in low light conditions. Equipped with a 3.6 mm fixed lens , it guarantees a wide viewing angle ideal for monitoring large areas. Smart Dual Light technology enables intelligent night vision up to 40 meters , alternating IR and warm light for more detailed and color images. The integrated microphone allows audio recording on coaxial cable, while CVI/CVBS/AHD/TVI support ensures maximum compatibility with different systems. The IP67 structure and the updated S3 version make this camera robust, versatile and suitable for continuous outdoor installations. Dahua

Technical data sheet

Reference: HAC-HFW1500TLM-IL-A-S3

Brand: Dahua

EAN: 6939554958137

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HAC-HFW1500TLM-IL-A-S3 | 5MP Wi-Fi Bullet Camera with 3.6mm Fixed Lens - Smart Dual Light - S3 Version

Dahua

The Dahua HAC-HFW1500TLM-IL-A S3 HDCVI camera is a reliable and affordable solution for residential and professional video surveillance, designed to offer 5MP high-definition images and stable performance over time. The 3.6 mm fixed lens ensures a wide viewing angle , ideal for monitoring outdoor and indoor areas. Smart Dual Light technology ensures intelligent night vision up to 40 meters , alternating infrared and white light for more detailed images and color only in the presence of events. The integrated microphone allows audio transmission over coaxial cable, while CVI/CVBS/AHD/TVI compatibility makes installation simple and flexible. The updated S3 version and IP67 protection complete a robust camera, suitable for continuous outdoor installations.

Main specifications:

- 5MP resolution with high-performance CMOS sensor

- 3.6mm fixed optics with wide field of view

- Smart Dual Light with IR illumination and warm light up to 40 m

- Built-in microphone for audio recording on coaxial

- CVI / CVBS / AHD / TVI compatibility

- IP67 protection and S3 version for reliable outdoor use

Further details

Optics :
The 3.6mm fixed lens ensures a wide viewing angle ideal for monitoring large areas, offering uniform coverage and stable image rendering without the need for manual adjustments.
Resolution:
Thanks to the 5MP (2880×1620) resolution and the high-performance CMOS sensor , the camera guarantees detailed and sharp images , essential for clear identification of subjects even in complex environments.
Smart Area Lighting:
The intelligent Smart Area Lighting function automatically adjusts brightness and exposure in different areas of the image, improving the visibility of details and optimising visual performance in areas with uneven lighting.
Smart Dual Light:
Dahua Smart Dual Light technology combines infrared and white light to automatically activate the most suitable mode based on detected events, ensuring color night images and effectively reducing light pollution.
Microphone:
The built-in microphone allows audio transmission over coaxial cable , offering more comprehensive surveillance thanks to sound recording as a support for video images.

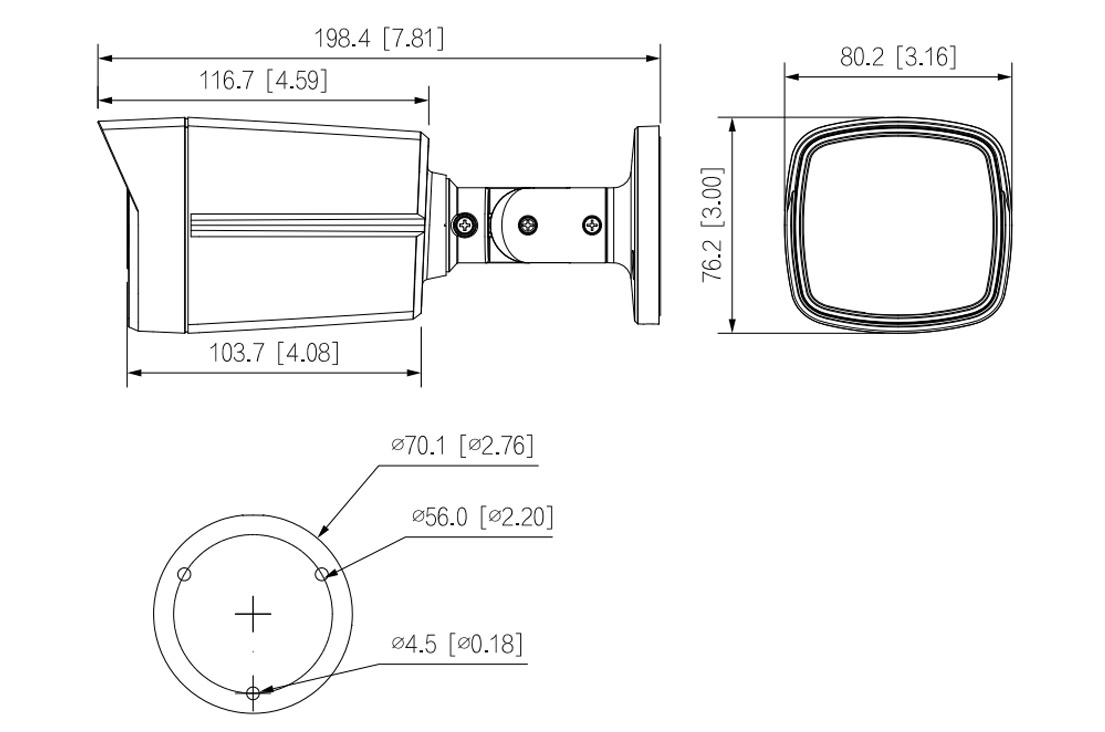

HAC-HFW1500TLM-IL-A-S3 dimensions

Technical data sheet

MODEL HAC-HFW1500TLM-IL-A-S3
Room
Image Sensor 5 MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
Illuminator On/Off Control Car
Illuminator Number 4 (Multi-core light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm
Max. Openings F1.6
Field of View H: 90.1°; V: 47.8°; D: 109.3°
Iris Control Fixed
Close Focus Distance 1.3 m (4.27 ft)
Video
Video Frame Rate CVI:
PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps
NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night Auto(ICR)/Color/B/W
WDR DWDR
White Balance Auto; White balance area
Gain Control Car
Noise Reduction 3D NR
Motion Detection Yes
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Pick-up Distance 8 m (26.25 ft)
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
Audio
Built-in MIC Yes
Audio Camera CVI; TVI
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP67
Anti-corrosion Level Basic Protection
Structure
Casing Material Metal front cover + plastic rear barrel + metal bracket
Product Dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H)
Net Weight 0.34 kg (0.75 lb)
Gross Weight 0.45 kg (0.99 lb)
Installation Wall mount; ceiling mount; vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
