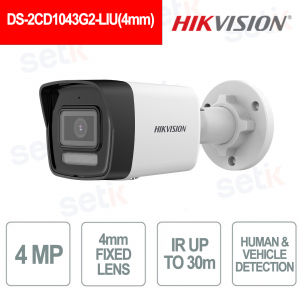

DS-2CD1043G2-LIU 4MP Bullet Camera with 4mm Lens, Smart Hybrid Light, and Integrated Audio - Hikvision

DS-2CD1043G2-LIU 4MP Bullet Camera with 4mm Lens, Smart Hybrid Light, and Integrated Audio - Hikvision
BEST SELLER -35% New

DS-2CD1043G2-LIU(4mm) - is a 4MP bullet network camera designed for reliable and efficient video surveillance, equipped with a 1/3" CMOS sensor and 4mm fixed lens that guarantees precise and detailed framing. It offers 2560×1440 resolution with clear images even in low light conditions thanks to the Smart Hybrid Light with IR and white light up to 30 m . It integrates intelligent detection of people and vehicles , integrated microphone for real-time audio , H.265+ compression to reduce bandwidth and storage, with a robust IP67 structure ideal for professional outdoor installations. Hikvision

Technical Data Sheet

Reference: DS-2CD1043G2-LIU(4mm)

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD1043G2-LIU(4mm) – 4mm 4MP FIXED LENS BULLET CAMERA - HUMAN AND VEHICLE DETECTION

Hikvision

The Hikvision DS-2CD1043G2-LIU is a 4MP bullet network camera designed for intelligent video surveillance in outdoor environments, equipped with a 1/3" CMOS sensor and 4 mm fixed lens for precise and balanced framing. It guarantees clear images thanks to the 2560×1440 resolution and excellent night performance with Smart Hybrid Light that combines IR and white light up to 30 m . It integrates intelligent detection of people and vehicles , integrated microphone for real-time audio and H.265+ compression to optimize bandwidth and storage, with a robust IP67 structure ideal for professional installations.

Main features:

- 4MP resolution (2560×1440) with 1/3" Progressive Scan CMOS sensor

- 4mm fixed optics

- Smart Hybrid Light with IR and white light up to 30 m

- Intelligent detection of people and vehicles

- Built-in microphone for real-time audio

- H.265+ compression

- WDR 120 dB

- PoE power supply (802.3af)

- IP67 protection rating


Further details

Optics:
The 4mm fixed lens ensures a balanced field of view (78° horizontal) ideal for monitoring perimeter areas and access points, offering greater depth of detail and an optimized DORI distance for subject identification.
Resolution:
The 4MP (2560×1440) resolution ensures high definition, clear and smooth images , suitable for professional security contexts where clear visual identification is required.
Human Detection:
Intelligent person detection uses advanced algorithms to filter out false alarms by distinguishing human movement from environmental elements such as rain, animals or vegetation.
Vehicle Detection :
The Vehicle Detection function enables accurate vehicle recognition, improving the effectiveness of alarm events and making the camera ideal for parking areas and driveways .
Smart Hybrid Light :
Smart Hybrid Light technology combines IR and white light up to 30m , automatically adapting illumination for clear or color images at night without constant light pollution.
Microphone :
The built-in microphone enables real-time audio recording , adding an extra layer of security and context to video events.
 Network Protocol:
It supports major network protocols including TCP/IP, HTTP, RTSP, RTP, IPv4/IPv6, FTP and ONVIF , ensuring high compatibility with Hikvision NVR, VMS and management platforms.
DS-2CD1043G2-LIU(4mm) dimensions

Technical data sheet

DS-2CD1043G2-LIU(4mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type 4mm
Focal Length & FOV horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens Mount M12
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
20 fps (2560 × 1440)
25fps (1920×1080, 1280×720)
60 Hz:
20 fps (2560 × 1440)
24fps (1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage trigger capture
General
Power

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5W

Material

Metal & Plastic

Dimension

170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Approx. 270 g (0.6 lb.)

With Package Weight

Approx. 481 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC FCC (47 CFR Part 15, Subpart B)
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
