BEST SELLER -35% New

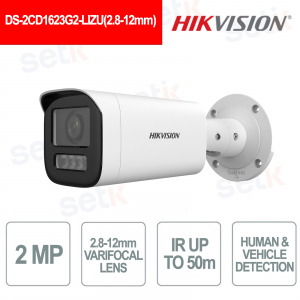

DS-2CD1623G2-LIZU(2.8-12mm) - is a 2MP bullet network camera designed for efficient and intelligent video surveillance, equipped with a 1/2.9" CMOS sensor and 2.8–12 mm motorized varifocal lens for maximum installation flexibility. It guarantees clear images thanks to Full HD 1920×1080 resolution , even in strong backlight conditions with WDR 120 dB . Smart Hybrid Light technology up to 50 m ensures optimal visibility day and night, while intelligent detection of people and vehicles , the integrated microphone , H.265+ compression , microSD support up to 512 GB and IP67 protection make it ideal for professional indoor and outdoor applications. Hikvision

Technical Data Sheet

Reference: DS-2CD1623G2-LIZU(2.8-12mm)

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD1623G2-LIZU(2.8-12mm) – VARIFOCAL LENS BULLET CAMERA 2.8-12mm 2MP - HUMAN AND VEHICLE DETECTION

Hikvision

The Hikvision DS-2CD1623G2-LIZSU is a 2MP bullet network camera ideal for intelligent video surveillance systems, equipped with a 1/2.9" CMOS sensor and 2.8–12 mm motorized varifocal lens to adapt to different installation needs. It offers clear images in Full HD 1920×1080 , even in strong backlight conditions thanks to the 120 dB WDR . The Smart Hybrid Light technology up to 50 m ensures optimal visibility day and night, while the intelligent detection of people and vehicles , the integrated microphone , H.265+ compression , the microSD slot up to 512 GB and IP67 protection make it a reliable solution for outdoor and professional environments.

Main features:

- 2MP Full HD 1920×1080 resolution

- 1/2.9" Progressive Scan CMOS sensor

- Motorized varifocal optics 2.8–12 mm

- Smart Hybrid Light with IR and white light up to 50 m

- Intelligent Human and Vehicle Detection

- WDR 120 dB

- H.265+ video compression

- Built-in microphone for real-time audio

- MicroSD slot up to 512 GB

- PoE power supply (802.3af)

- IP67 protection rating


Further details

Varifocal optics:
The camera is equipped with a 2.8–12 mm motorized varifocal lens that allows for precise framing adjustment , easily adapting to different distances and surveillance scenarios, simplifying installation and remote focusing.
Resolution:
It offers 2MP Full HD 1920×1080 resolution , ensuring clear and detailed images for reliable monitoring in residential and professional contexts.
Human Detection:
The intelligent person detection function uses advanced algorithms to distinguish human movement , significantly reducing false alarms caused by objects or environmental conditions.
Vehicle Detection :
Vehicle detection improves control of driveways and parking areas , allowing for more accurate and targeted alarm events.
Smart Hybrid Light :
Smart Hybrid Light technology combines IR illumination and white light up to 50m , automatically adapting the lighting mode to ensure optimal visibility day and night .
Microphone :
The built-in microphone enables real-time audio recording , adding an extra layer of information to video events for more comprehensive security.
 Network Protocol:
It supports major network protocols including TCP/IP, HTTP, RTSP, RTP, IPv4/IPv6, FTP, SMTP and ONVIF , ensuring maximum compatibility with NVRs and professional video management systems.
DS-2CD1623G2-LIZU(2.8-12mm) dimensions

Technical data sheet

DS-2CD1083G2-LIU(4mm)
Room
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
Lens Mount Ø14
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50Hz: 25fps (1920×1080, 1280×720)
60Hz: 30fps (1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)

Digital WDR

SNR ≥ 52 dB
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone Yes, 1 built-in microphone
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output
General
Power

12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.9W

Material

Metal & Plastic

Dimension

Ø105 mm × 252 mm (Ø4.13 × 9.92\")"

Package Dimension

315 mm × 137 mm × 141 mm (12.40" × 5.39" × 5.55")

Weight

Approx. 570 g (1.3 lb.)

With Package Weight

Approx. 900 g (2.0 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)

Protection

IP67: IEC 60529-2013

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
