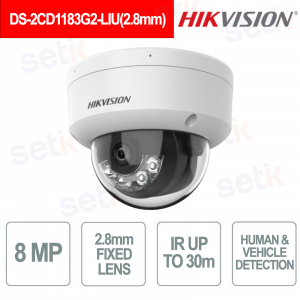

DS-2CD1183G2-LIU 2.8mm Dome IP Camera 8MP AI Smart Hybrid Light IP67 IK08 - Hikvision

DS-2CD1183G2-LIU 2.8mm Dome IP Camera 8MP AI Smart Hybrid Light IP67 IK08 - Hikvision
BEST SELLER -35% New

DS-2CD1183G2-LIU(2.8mm) - is a camera with a 2.8mm lens is an IP dome camera designed for advanced video surveillance systems that require maximum definition and reliability. Thanks to the 8MP Ultra HD resolution , it offers extremely detailed images with a wide viewing angle, ideal for monitoring large areas. AI technology for Human and Vehicle Detection improves alarm accuracy by reducing false events. The Smart Hybrid Light ensures effective shooting even at night, while the integrated microphone allows audio recording. H.265+ compression optimizes bandwidth and storage, with an IP67 and IK08 structure for resistance to dust, water and vandalism. Hikvision

Technical Data Sheet

Reference: DS-2CD1183G2-LIU(2.8mm)

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD1323G2-LIU(2.8mm) – DOME CAMERA FIXED LENS 2.8mm 8MP - HUMAN AND VEHICLE DETECTION

Hikvision

The Hikvision DS-2CD1183G2-LIU with 2.8mm lens is a professional IP dome camera designed for environments requiring ultra-high definition images and advanced security. The 8MP Ultra HD resolution ensures a superior level of detail, ideal for precise identification even over large areas. Artificial intelligence for person and vehicle detection drastically reduces false alarms, while Smart Hybrid Light ensures effective recording even in total darkness. The built-in microphone adds audio monitoring, and H.265+ compression optimizes bandwidth and storage space. The IP67 and IK08 construction makes the device resistant to weather and vandalism.

Main features:

- 8MP Ultra HD resolution (3840×2160)

- 2.8mm fixed optics with wide field of view

- AI for Human Detection and Vehicle Detection

- Smart Hybrid Light with IR and white light up to 30 m

- Built-in microphone for real-time audio

- Highly efficient H.265+ video compression

- IP67 protection and IK08 vandal resistance


Further details

Optics:
The 2.8mm fixed lens offers a very wide field of view , ideal for covering large areas with a single camera, improving room control and reducing the need for additional devices.
Resolution:
8MP Ultra HD : 4K resolution of 3840×2160 ensures extremely detailed images , essential for accurate recognition of people, vehicles and critical details even from a distance.
Human Detection:
AI- based intelligent person detection analyzes the scene, distinguishing human subjects from irrelevant movements, dramatically reducing false alarms .
Vehicle Detection :
The vehicle detection function enables precise monitoring of parking lots, access points and perimeter areas, improving safety and traffic event analysis.
Smart Hybrid Light :
Smart Hybrid Light technology combines IR illumination and white light , automatically adapting to environmental conditions to ensure clear, colorful footage even at night up to 30 meters away.
Microphone :
The built-in microphone allows for real-time audio recording , adding an extra layer of information and increasing the overall effectiveness of video surveillance.
 Network Protocol:
Support for major network protocols such as TCP/IP, RTSP, HTTP, ONVIF, IPv4, and IPv6 ensures maximum compatibility with NVRs, management software, and advanced security systems.

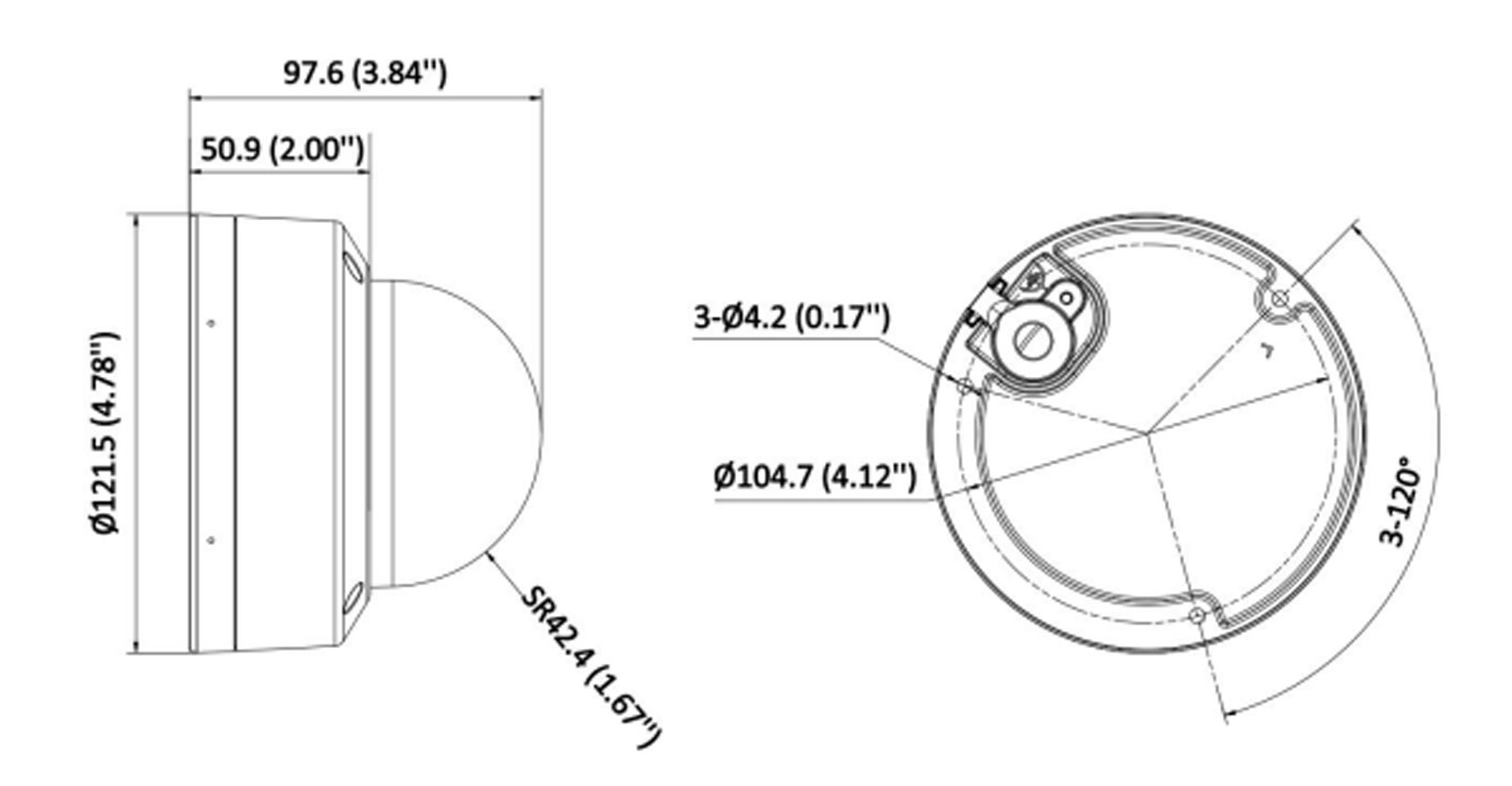

DS-2CD1183G2-LIU(2.8mm) dimensions

Technical data sheet

DS-2CD1183G2-LIU(2.8mm)
Room
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
Lens Mount M12
Iris Type Fixed
Openings F2.0
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60Hz: 15fps (1280×720, 640×480, 640×360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,
Substream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK,Hik-Connect
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement BLC, HLC, 3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone Yes,
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage trigger capture
General
Power

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5W

Material

Metal & Plastic

Dimension

Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 550 g (1.2 lb.)

With Package Weight

Approx. 800 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
Safety UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)

Protection

IP67: IEC 60529-2013,IK08: IEC 62262:2002

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
