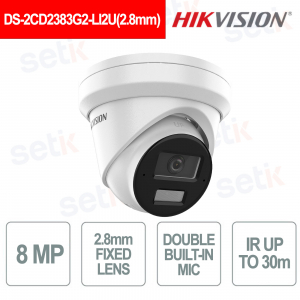

DS-2CD2383G2-LI2U(2.8mm) - is a professional IP turret camera designed for advanced high-definition video surveillance systems.
The 8 MP Ultra HD sensor combined with the 2.8mm fixed wide-angle lens guarantees extremely detailed images and wide coverage up to 108°.
AcuSense technology with deep learning enables intelligent classification of people and vehicles , dramatically reducing false alarms.
The Smart Hybrid Light system with IR and white light up to 30 m ensures optimal visibility even in total darkness.
The integrated dual microphone , 120 dB real WDR , H.265+ compression and IP67 protection complete the features, ideal for reliable and long-lasting outdoor installations. Hikvision
DS-2CD2383G2-LI2U(2.8mm) – FIXED LENS TURRET CAMERA 2.8mm 8MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION

The Hikvision DS-2CD2383G2-LI2U(2.8mm) is a high-performance IP turret camera designed for intelligent professional video surveillance.
The 8 MP Ultra HD sensor combined with the 2.8mm wide-angle fixed lens offers extremely detailed images with a wide field of view.
AcuSense technology with artificial intelligence and deep learning enables accurate detection of people and vehicles, reducing false alarms.
The Smart Hybrid Light system with IR and white light up to 30 m ensures optimal visibility even in total darkness.
The integrated dual microphone , real 120 dB WDR , H.265+ compression and IP67 protection for outdoor use complete the features.
Main features:
- 8 MP (3840×2160) Ultra HD resolution
- 2.8mm fixed optics with a viewing angle of up to 108°
- AcuSense with people and vehicle classification
- Smart Hybrid Light with IR and white light up to 30 m
- Built-in dual microphone with noise filtering
- 120dB true WDR for balanced images
- Highly efficient H.265+ video compression
- Metal body with IP67 protection for outdoor use
Further details
The 2.8mm wide-angle fixed lens offers a field of view of up to 108° , ideal for monitoring large areas with high depth of detail and uniform vision.
The 8 MP Ultra HD (3840×2160) sensor guarantees extremely sharp images , essential for the precise identification of subjects and vehicles even from a distance.
AI-based AcuSense technology enables intelligent event classification , dramatically reducing false alarms.
Intelligent vehicle detection is ideal for parking, access and urban environments, improving control of relevant events.
Advanced motion detection with AI filters triggers alarms only when there is significant movement of people or vehicles.
Built-in deep learning algorithms support perimeter protection , intrusion detection, and line crossing with high accuracy.
Wide compatibility thanks to the support of major network protocols such as ONVIF, TCP/IP, HTTPS, RTSP, IPv4/IPv6 , for easy integration into professional systems
%20dimensioni.jpg)
Technical data sheet
| DS-2CD2383G2-LI2U(2.8mm) | |
| Room | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Openings | F1.6 |
| Depth of Field | 1.7 m to ∞ |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850mm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50Hz: 25fps (1280×720, 640×480, 640×360) |
| Third Stream |
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Target Cropping |
Yes |
| Audio | |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View |
Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host |
Up to 32 users. |
| Client |
iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
| Web Browser |
Plug-in required live view: IE 11, |
| Image | |
| Image Parameters Switch |
Yes |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Settings |
Rotate mode |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask |
8 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Built-in Microphone: Arrayed dual-microphone |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Face detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power |
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Material |
Metal |
| Dimension |
Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") |
| Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight |
Approx. 515 g (1.1 lb.) |
| With Package Weight |
Approx. 755 g (1.7 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013 |
