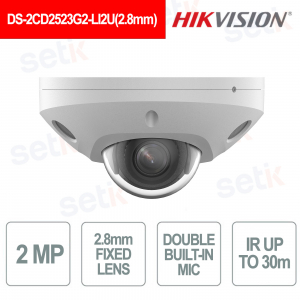

DS-2CD2523G2-LI2U(2.8mm) - is a compact IP mini dome designed for intelligent and discreet video surveillance in indoor and outdoor environments.
The 2 MP Full HD sensor combined with the 2.8mm wide-angle fixed lens with a viewing angle of up to 112° ensures clear images and wide coverage.
AcuSense deep learning technology enables accurate classification of people and vehicles , reducing false alarms.
The Smart Hybrid Light system with IR and white light up to 30 m ensures effective visibility even in low light conditions.
The integrated dual microphone , 120 dB real WDR , H.265+ compression and IP67 protection with IK08 resistance complete the features, ideal for reliable and continuous use. Hikvision

Technical Data Sheet

Reference: DS-2CD2523G2-LI2U(2.8mm)

Brand: Hikvision

EAN: 6942160477626

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD2523G2-LI2U(2.8mm) – MINI DOME CAMERA FIXED LENS 2.8mm 2MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION

Hikvision

The Hikvision DS-2CD2523G2-LI2U(2.8mm) is a compact IP mini dome ideal for intelligent video surveillance systems in indoor and outdoor environments.
The 2 MP Full HD sensor with 2.8mm wide-angle fixed lens ensures sharp images and wide visual coverage.
AcuSense technology with artificial intelligence and deep learning enables accurate classification of people and vehicles , reducing false alarms.
The Smart Hybrid Light system with infrared and white light up to 30 m ensures effective visibility even at night.
The integrated dual microphone , real 120 dB WDR , H.265+ compression and IP67 protection with IK08 resistance complete the features.

Main features:

- 2 MP Full HD resolution (1920×1080)

- 2.8mm wide-angle fixed lens

- AcuSense AI technology with people and vehicle classification

- Smart Hybrid Light with IR and white light up to 30 m

- Built-in dual microphone with noise reduction

- 120dB true WDR for balanced images

- Highly efficient H.265+ video compression

- IP67 protection and IK08 resistance


Further details

Fixed Optics:
The 2.8mm wide-angle fixed lens offers a wide field of view up to 112° , ideal for surveillance of large environments with uniform and detailed images even at short distances.
Resolution:
The 2 MP Full HD (1920×1080) sensor ensures sharp and stable images , optimised for visual identification in residential and professional contexts.
Acusense :
AcuSense AI technology uses deep learning to filter out irrelevant events and dramatically reduce false alarms.
Human Detection:
Intelligent person detection allows you to pinpoint only human presence, improving the accuracy and reliability of alerts.
Vehicle Detection :
Vehicle detection allows for effective control of access, parking and transit areas, distinguishing vehicles from other movements.
Motion Detection :
Advanced motion detection with AI classification triggers notifications only when there is significant movement of people or vehicles.
Face Detection :
Intelligent face detection supports facial analysis for advanced security applications and targeted tracking.
Deep Learning Function :
Built-in deep learning algorithms handle perimeter protection , intrusion detection, and line crossing with high accuracy.
Microphone :
The built-in dual array microphone with ambient noise filtering ensures clear, high-quality audio in real time.
 Network Protocol:
Wide compatibility thanks to the support of the main network protocols such as ONVIF (Profile S/G), TCP/IP, HTTPS, RTSP, IPv4/IPv6 , for perfect integration into professional video surveillance systems.
DS-2CD2523G2-LI2U(2.8mm) dimensions

Technical data sheet

DS-2CD2523G2-LI2U(2.8mm)
Room
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm
Focal Length & FOV horizontal FOV 112°, vertical FOV 61°, diagonal FOV 132°
Lens Mount M12
Iris Type Fixed
Openings F1.6
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25fps (1920×1080, 1280×720)
60 Hz:
30fps (1920×1080, 1280×720)
Sub-Stream

50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Target Cropping

Yes

Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser

Plug-in required live view: IE 11,
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

Day/Night Switch

Day, Night, Auto, Schedule

Image Settings

Rotate mode

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

8 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone Built-in Microphone:
Arrayed dual-microphone
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Face detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5W

Material

Base: aluminum, cover: plastic

Dimension

Ø110 mm × 59.2 mm (Ø4.33" × 2.33")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5")

Weight

Approx. 390 g (0.9 lb.)

With Package Weight

Approx. 625 g (1.4 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK08: IEC 62262:2002

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
