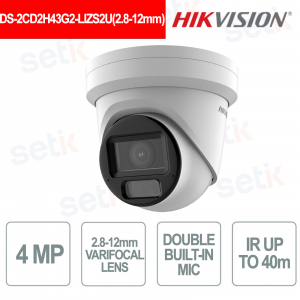

DS-2CD2H43G2-LIZS2U(2.8-12mm) - is a professional IP turret camera designed for intelligent and flexible indoor and outdoor video surveillance .
The 4 MP sensor combined with the 2.8–12 mm motorized varifocal lens allows for precise framing adjustment based on the working distances.
AcuSense technology with artificial intelligence and deep learning enables the accurate classification of people and vehicles , significantly reducing false alarms.
The Smart Hybrid Light system with infrared and long-range white light ensures clear images even in total darkness.
The integrated dual microphone for high-quality audio , 120 dB real WDR , H.265+ compression and IP67 protection complete the features, making it ideal for reliable professional installations. Hikvision

Technical Data Sheet

Reference: DS-2CD2H43G2-LIZS2U(2.8-12mm)

Brand: Hikvision

EAN: 6942160477824

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DS-2CD2H43G2-LIZS2U(2.8-12mm) – TURRET CAMERA VARIFOCAL LENS 2.8-12mm 4MP - HUMAN AND VEHICLE DETECTION - DEEP LEARNING FUNCTION

Hikvision

The Hikvision DS-2CD2H43G2-LIZS2U is a professional IP turret camera designed for intelligent and flexible video surveillance in indoor and outdoor environments.
The 4 MP sensor paired with the 2.8–12 mm motorized varifocal lens allows for precise framing adjustment to suit different shooting distances.
AcuSense technology with artificial intelligence and deep learning enables the accurate classification of people and vehicles , significantly reducing false alarms.
The Smart Hybrid Light system with infrared and white light up to 40 m ensures clear images even in total darkness.
The device is completed by the integrated dual microphone , real 120 dB WDR , H.265+ compression and IP67 and IK10 protection , ideal for reliable professional installations.

Main features:

- Resolution 4 MP (2688 × 1520)

- Motorized varifocal optics 2.8–12 mm

- AcuSense AI technology with people and vehicle detection

- Smart Hybrid Light with IR and white light up to 40 m

- Built-in dual microphone for high-quality audio

- 120dB true WDR for balanced images

- Highly efficient H.265+ video compression

- IP67 and IK10 vandal-proof protection


Further details

Varifocal optics :
The 2.8–12 mm motorized varifocal lens allows for remote and precise framing adjustment , adapting perfectly to different distances and installation scenarios.
Resolution:
The 4 MP ( 2688 × 1520 ) sensor delivers sharp, detailed images , ideal for continuous tracking and reliable subject identification.
Acusense :
AcuSense AI-based technology uses deep learning algorithms to distinguish real events from false alarms.
Human Detection:
Intelligent person detection identifies only human movements, increasing the accuracy and reliability of alerts.
Vehicle Detection :
The vehicle detection function improves the control of access, parking and transit areas, separating vehicles from other movements.
Motion Detection :
Advanced motion detection with AI classification triggers notifications only when there is significant movement of people or vehicles.
Face Detection :
Intelligent face detection supports facial analysis and detection for advanced security applications.
Deep Learning Function :
Built-in deep learning algorithms handle perimeter protection , line crossing, and intrusion detection with high accuracy.
Microphone :
The built-in dual array microphone with ambient noise filtering ensures clear, high-quality audio in real time.
 Network Protocol:
Wide compatibility thanks to the support of the main network protocols such as ONVIF Profile S/G, TCP/IP, HTTPS, RTSP, IPv4/IPv6 , for perfect integration into professional video surveillance systems.

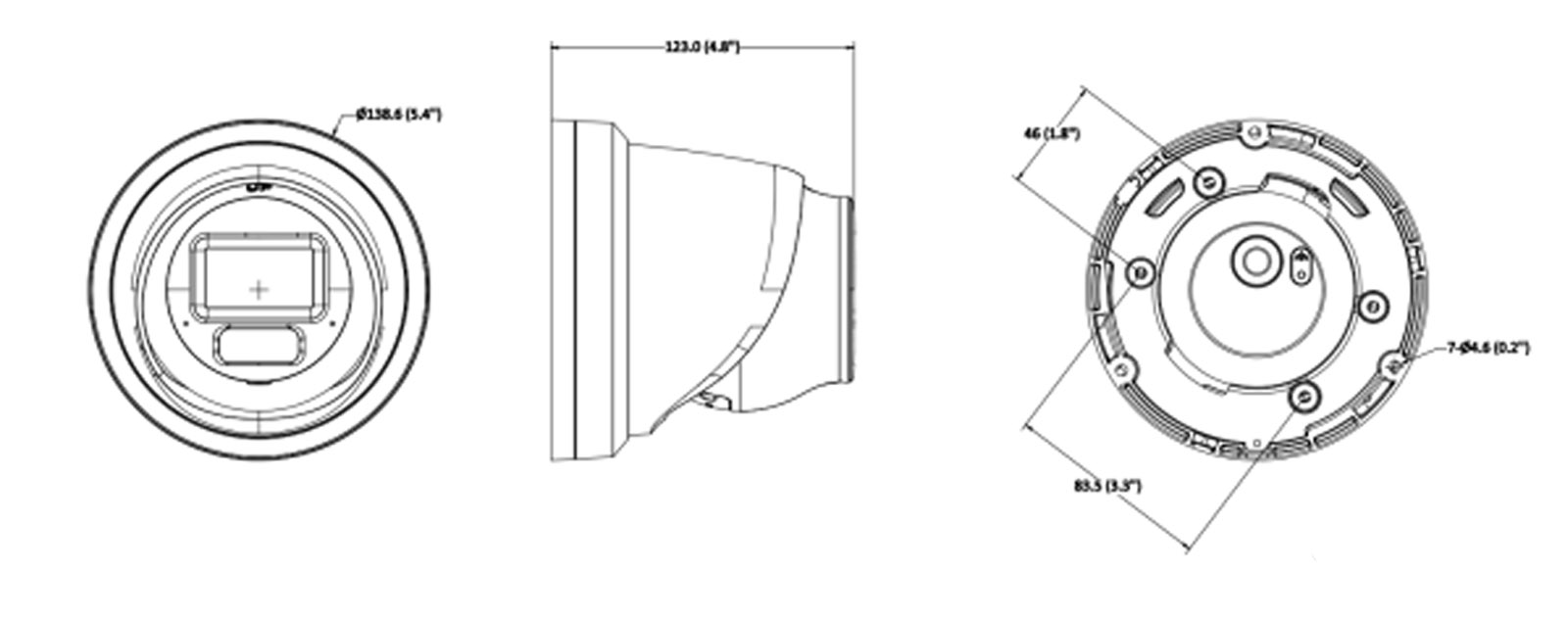

DS-2CD2H23G2-LIZS2U(2.8-12mm) dimensions

Technical data sheet

DS-2CD2H43G2-LIZS2U(2.8-12mm)
Room
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8°
Lens Mount Ø14
Iris Type Fixed
Openings F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720))
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)

Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Target Cropping

Yes

Audio
Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View

Up to 6 channels

API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

User/Host

Up to 32 users.
3 user levels: administrator, operator and user

Client

iVMS-4200,Hik-Connect,Hik-Central

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Web Browser

Plug-in required live view: IE 11,
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

Day/Night Switch

Day, Night, Auto, Schedule

Image Settings

Rotate mode

Wide Dynamic Range (WDR)

120 dB

SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask

8 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone Built-in Microphone: Dual arrayed-microphone
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Face detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Perimeter Protection Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 0.88 A, max. 10.56 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12.5W

Material

Metal

Dimension

Ø138.6 mm × 123 mm (Ø5.4" × 4.8")

Package Dimension

170mm × 170mm × 160mm (6.7" × 6.7" × 6.3")

Weight

Approx. 860 g (1.9 lb.)

With Package Weight

Approx. 1150 g (2.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment

CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002
